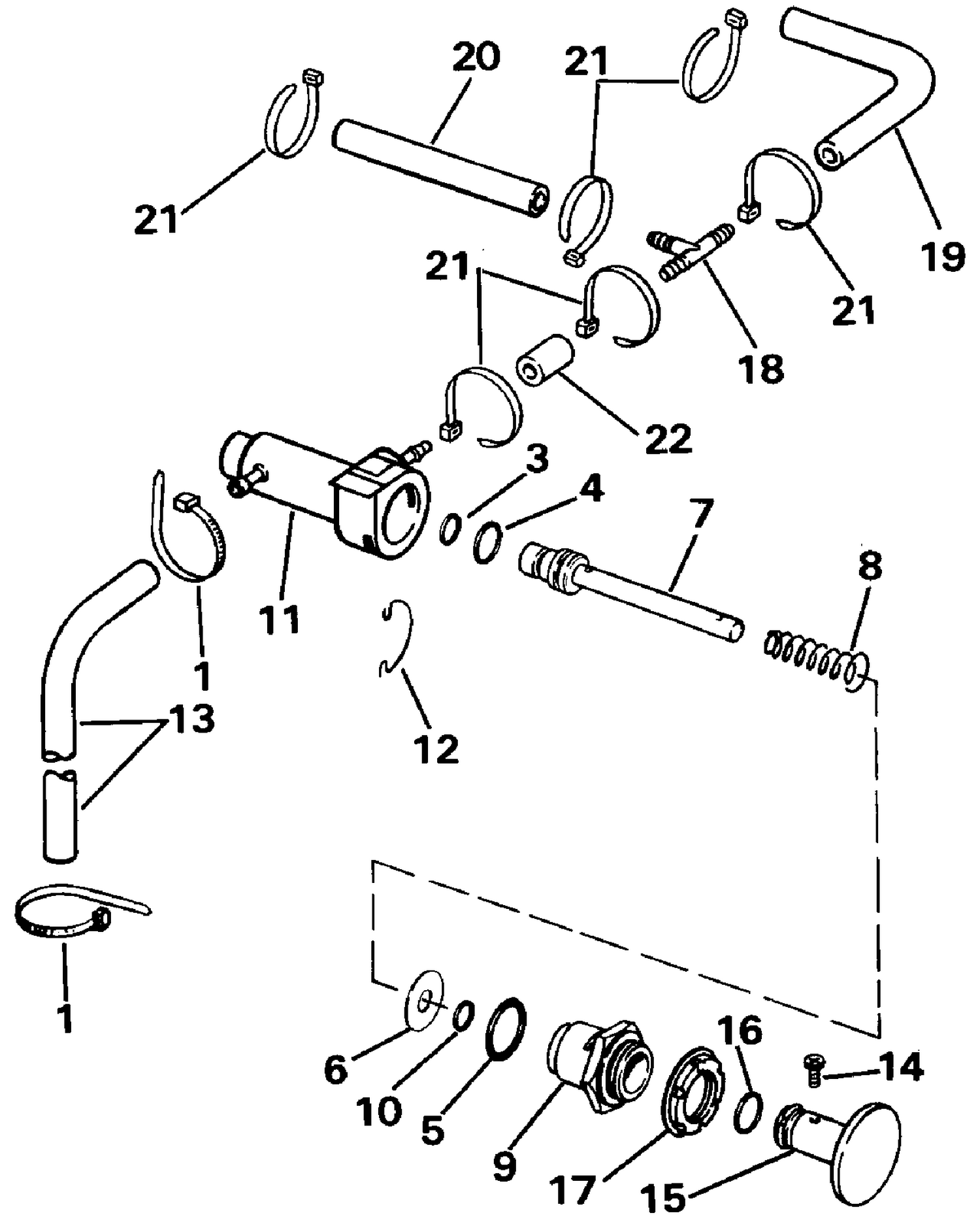

MANUAL PRIMER SYSTEM
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 9 | 0398868 | END CAP |
| 13 | HOSE, | Carb. to primer 7 1/2 in. (190mm) |
| 14 | 0329054 | SCREW |
| 15 | 0395781 | KNOB & DETENT ASSY |
| 16 | 0330992 | JOINT TORIQUE, bouton |
| 17 | 0329670 | NUT |
| 18 | 0325569 | T, amorçage |
| 19 | HOSE, | Tee to carb. 8 in. (203mm) |
| 20 | HOSE, | Tee to manifold 4 1/2 in. (114mm) |
| 0398775 | 5007336 | Kit Ay This part replaces 0398775. |
