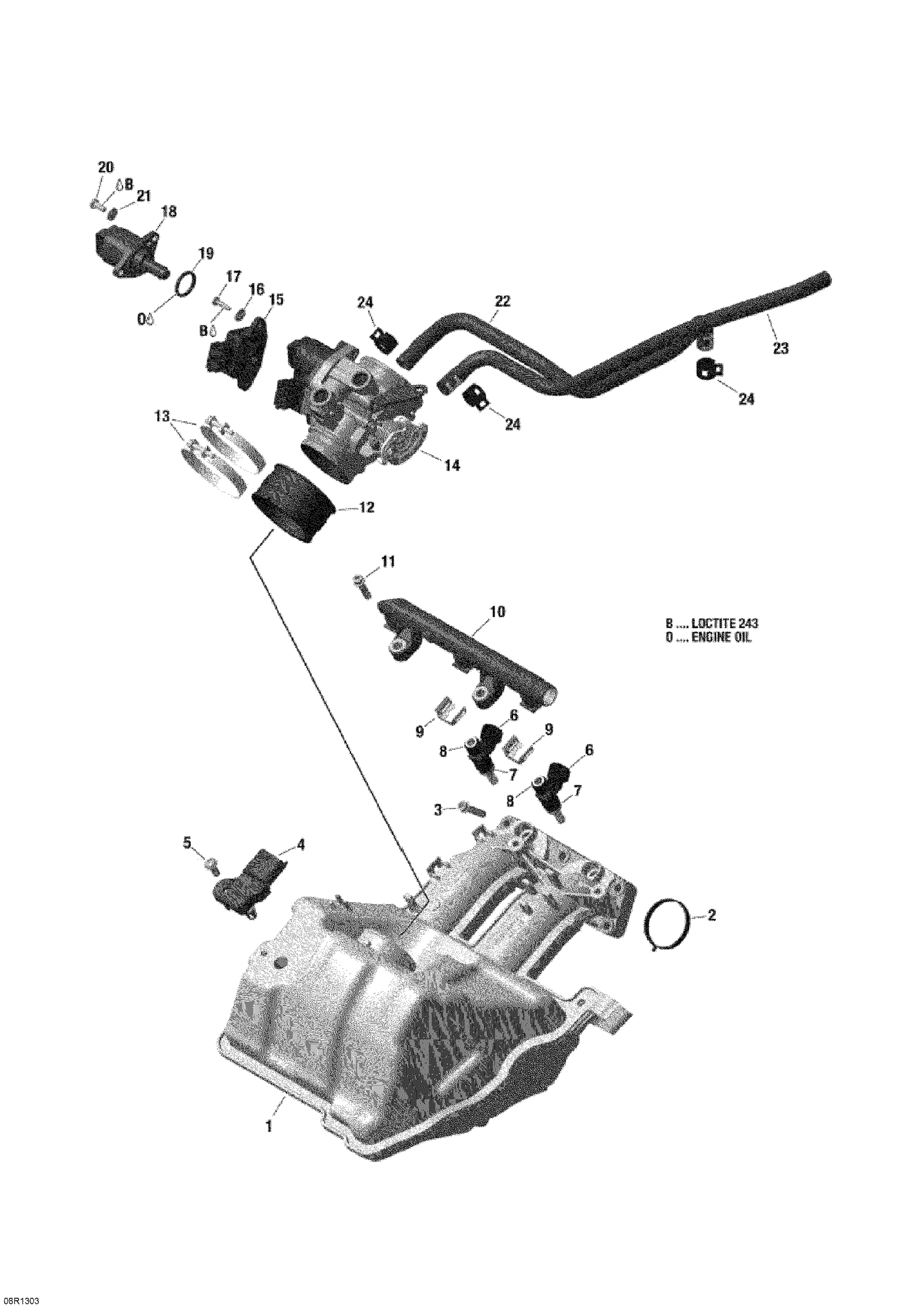

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10ml |
| 4 |
707000995 |
Pressure And Temperature Sensor |
| 9 |
420853030 |
Clip |
| 10 |
420874961 |
Fuel Rail This part replaces 420874960. |
| 12 |
420460495 |
Connecting Socket |
| 15 |
Not |
Available As Spare Part - Throttle Position Sensor |
| 16 |
Not |
Available As Spare Part - Washer |
| 17 |
Not |
Available As Spare Part - Oval Head Screw |
| 18 |
420665941 |
Idle Bypass Valve This part replaces 420665940. |
| 21 |
420845710 |
Snap Ring |
| 22 |
420460910 |
MOLDED HOSE - Call your local BRP dealership |
| 23 |
420460915 |
MOLDED HOSE - Call your local BRP dealership |
| 24 |
420853511 |
Clamp |
