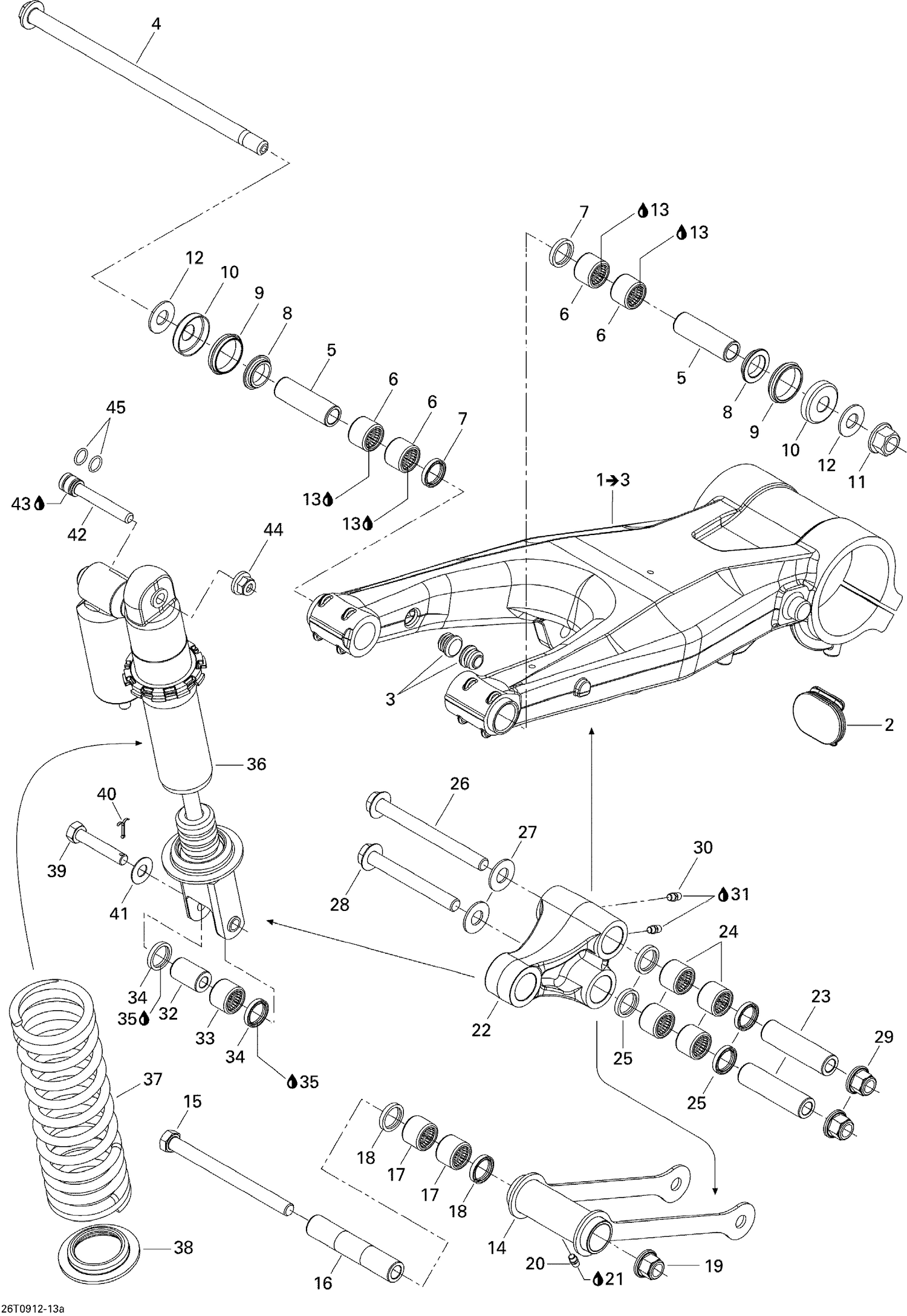

08- Rear Suspension Xxc
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 706000459 | SWING ARM CAP - Call your local BRP dealership |
| 3 | 517302716 | Cap |
| 4 | 250000358 | HEX. SCREW M14 X 287 - Call your local BRP dealership |
| 5 | 706000732 | BUSHING - Call your local BRP dealership |
| 6 | 706000447 | Bearing |
| 7 | 706000448 | Seal, Single Lip ID 19.4 OD 26 |
| 8 | 706000701 | SPACER - Call your local BRP dealership |
| 9 | 706000750 | SEAL - Call your local BRP dealership This part replaces 706000424. |
| 10 | 706000738 | SEAL CAP - Call your local BRP dealership This part replaces 706200480. |
| 11 | 232571436 | Elastic Stop Nut |
| 12 | 250200079 | FLAT WASHER - Call your local BRP dealership |
| 13 | 293550010 | Synthetic Grease, 400 G |
| 14 | 706000445 | LEVER - Call your local BRP dealership |
| 15 | 230024586 | Hexagonal Screw M12 x 145 |
| 16 | 706000730 | BUSHING - Call your local BRP dealership |
| 17 | 706000447 | Bearing |
| 18 | 706000448 | Seal, Single Lip ID 19.4 OD 26 |
| 19 | 233221434 | Flange Elastic Nut |
| 20 | 250000315 | Grease Fitting |
| 21 | 293550010 | Synthetic Grease, 400 G |
| 22 | 706200465 | SECONDARY LEVER - Call your local BRP dealership |
| 23 | 706000731 | Bushing |
| 24 | 706000447 | Bearing |
| 25 | 706000448 | Seal, Single Lip ID 19.4 OD 26 |
| 26 | 230223086 | SCREW-HEX.CAP-ISO.4014 S.GRIP - Call your local BRP dealership |
| 27 | 706200281 | Hardened Washer This part replaces 250200086. |
| 28 | 230020586 | Hexagonal Screw M12 X 105 |
| 29 | 233221434 | Flange Elastic Nut |
| 30 | 250000315 | Grease Fitting |
| 31 | 293550010 | Synthetic Grease, 400 G |
| 32 | 706000733 | BUSHING - Call your local BRP dealership |
| 33 | 706000447 | Bearing |
| 34 | 706000448 | Seal, Single Lip ID 19.4 OD 26 |
| 35 | 293550010 | Synthetic Grease, 400 G |
| 36 | 706000438 | Rear Shock |
| 37 | 706000659 | SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership |
| 38 | 706000567 | Spring Stopper |
| 39 | 250000254 | BOLT M10 - Call your local BRP dealership |
| 40 | 250400034 | Cotter Pin |
| 41 | 250200080 | Flat Washer |
| 42 | 706000541 | SCREW - Call your local BRP dealership |
| 43 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 44 | 233201436 | Hex. Flange Elastic Nut M10 |
