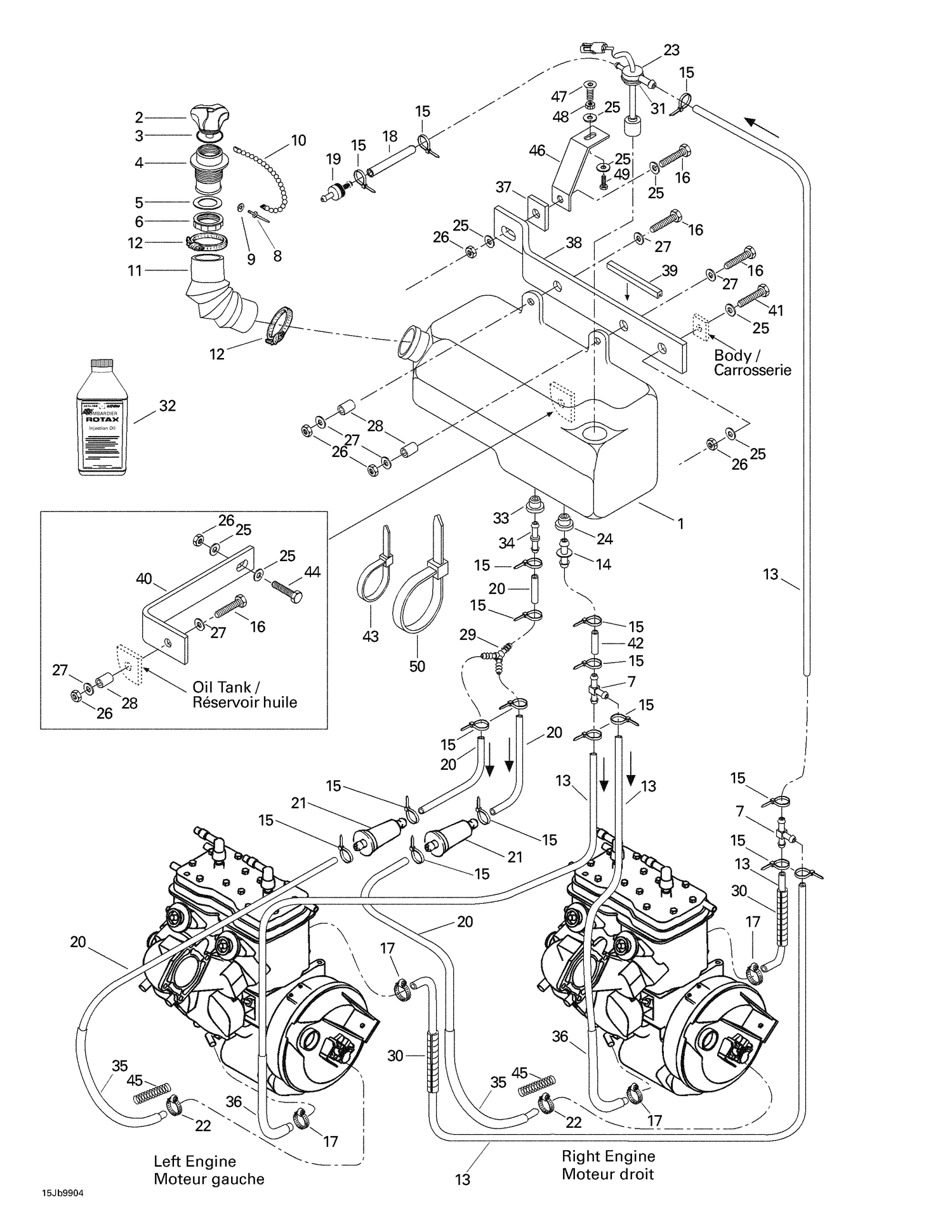

| Ref | Part Number | Description |
|---|
| 1 |
204550020 |
Oil Tank |
| 3 |
293250025 |
O-RING - Call your local BRP dealership |
| 4 |
275000212 |
Filler Neck |
| 5 |
293250016 |
Gasket |
| 6 |
211100013 |
Nut-Neck Oil Filler |
| 7 |
293710053 |
T-FITTING - Call your local BRP dealership |
| 8 |
293150056 |
Pop Rivet 1/8" |
| 9 |
234032600 |
Flat Washer M3, Stainless |
| 10 |
275500015 |
Oil Cap Chain |
| 11 |
204550035 |
Filled Neck Hose |
| 12 |
293650077 |
Norma Clamp |
| 13 |
219704356 |
Was 275500008 Hose 12 mm |
| 14 |
293710045 |
STRAIGHT FITTING - Call your local BRP dealership |
| 15 |
293750001 |
Tie Wrap 94 mm |
| 16 |
207163560 |
Hex. Screw M6 X 35 |
| 17 |
293650170 |
Tridon Gear Clamp This part replaces 293650038. |
| 18 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 19 |
275500398 |
Check Valve |
| 20 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 21 |
275000051 |
OIL FILTER - Call your local BRP dealership |
| 22 |
293650042 |
Oetiker Clamp |
| 23 |
204470106 |
OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership |
| 24 |
707800347 |
Grommet This part replaces 570273900. |
| 25 |
234062600 |
Flat Washer M6, Stainless |
| 26 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 27 |
234062600 |
Flat Washer M6, Stainless |
| 28 |
204550033 |
SPACER SLEEVE - Call your local BRP dealership |
| 29 |
204550001 |
Y-Fitting |
| 30 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 31 |
204470104 |
Grommet |
| 32 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 33 |
709200285 |
Grommet This part replaces 570135100. |
| 34 |
293710046 |
STRAIGHT FITTING - Call your local BRP dealership |
| 35 |
204550015 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 36 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 37 |
204550058 |
Spacer 6.3 mm |
| 38 |
204550036 |
Upper Bracket |
| 39 |
204610371 |
TRIM, BLACK - Call your local BRP dealership |
| 40 |
204550037 |
Lower Bracket |
| 41 |
207063060 |
Hex. Screw M6 X 30 |
| 42 |
219704356 |
Was 275500008 Hose 12 mm |
| 43 |
414115200 |
Tie-Rap 180 mm This part replaces 294000606. |
| 44 |
207063060 |
Hex. Screw M6 X 30 |
| 45 |
270000377 |
Spring |
| 46 |
204550072 |
Bracket |
| 47 |
204070305 |
Shouldered Screw M8 x 35 |
| 48 |
232100600 |
Hex. Jam Nut M10 |
| 49 |
207161660 |
Hex. Screw M6 X 16 |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
| 413710500 |
SYNTHETIC |
INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership 413710500 |
