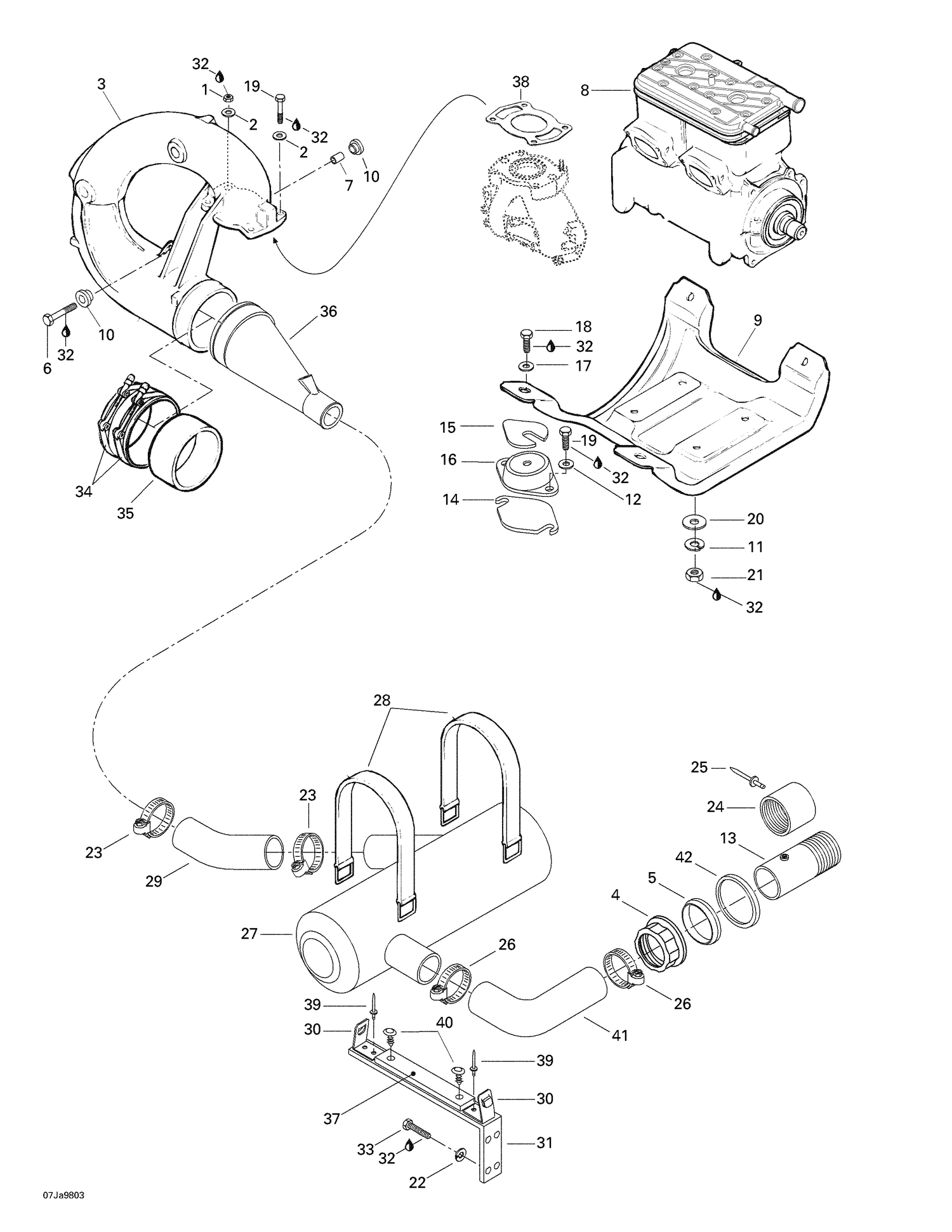

| Ref | Part Number | Description |
|---|
| 1 |
232081600 |
Hex. Nut M8 This part replaces 212100001. |
| 2 |
293050001 |
Flat Washer M8.5 x 18 |
| 3 |
274000487 |
Tuned Pipe Ass'y |
| 4 |
274000224 |
Nut 72 mm |
| 5 |
274000225 |
STABILIZING WASHER - Call your local BRP dealership |
| 6 |
207084060 |
Hex. Screw M8 X 40 This part replaces 215684060. |
| 7 |
274000114 |
Bushing |
| 8 |
270000362 |
Rotax Engine 717 (White) |
| 9 |
270000312 |
Engine Support |
| 10 |
293830031 |
Rubber Bushing |
| 11 |
234101601 |
Helicoidal Lock Washer M10 This part replaces 213000003. |
| 12 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 13 |
274000222 |
EXHAUST OUTLET - Call your local BRP dealership |
| 14 |
270000006 |
Shim 0.4 mm |
| 15 |
270000024 |
SHIM 0.4 MM - Call your local BRP dealership |
| 16 |
270000425 |
Rubber Mount This part replaces 270000217. |
| 17 |
234082600 |
Flat Washer 8 mm, Stainless This part replaces 213200011. |
| 18 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership This part replaces 210000002. |
| 19 |
207183060 |
Hex. Screw M8 X 30 This part replaces 210000007. |
| 20 |
234001600 |
Flat Washer 10 mm, Stainless This part replaces 213200003. |
| 21 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership This part replaces 212100007. |
| 22 |
234151601 |
Helical Lock Washer M5 This part replaces 217351500. |
| 23 |
293650036 |
Tridon Clamp |
| 24 |
204340099 |
Exhaust Outlet Extension |
| 25 |
293150060 |
Pop Rivet 3/16" |
| 26 |
293650064 |
Tridon Clamp |
| 27 |
204340086 |
LH Muffler |
| 28 |
293850097 |
Retainer Strap This part replaces 293850021. |
| 29 |
204340024 |
Exhaust Hose |
| 30 |
204060017 |
Strap Clip 90° |
| 31 |
Not |
Available As Spare Part - Muffler Support |
| 32 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 33 |
215051660 |
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership |
| 34 |
293650068 |
NORMA CLAMP - Call your local BRP dealership |
| 35 |
274000074 |
Sealing Ring |
| 36 |
274000488 |
Exhaust Cone Ass’Y |
| 37 |
204060031 |
Rubber Pad |
| 38 |
420950253 |
Exhaust Gasket This part replaces 290950251. |
| 39 |
293150037 |
Avdel Rivet 3/16" |
| 40 |
293730006 |
Black, Dart |
| 41 |
204340028 |
RH Exhaust Hose |
| 204340027 |
LH |
Exhaust Hose 204340027 |
| 204340087 |
RH |
Muffler 204340087 |
