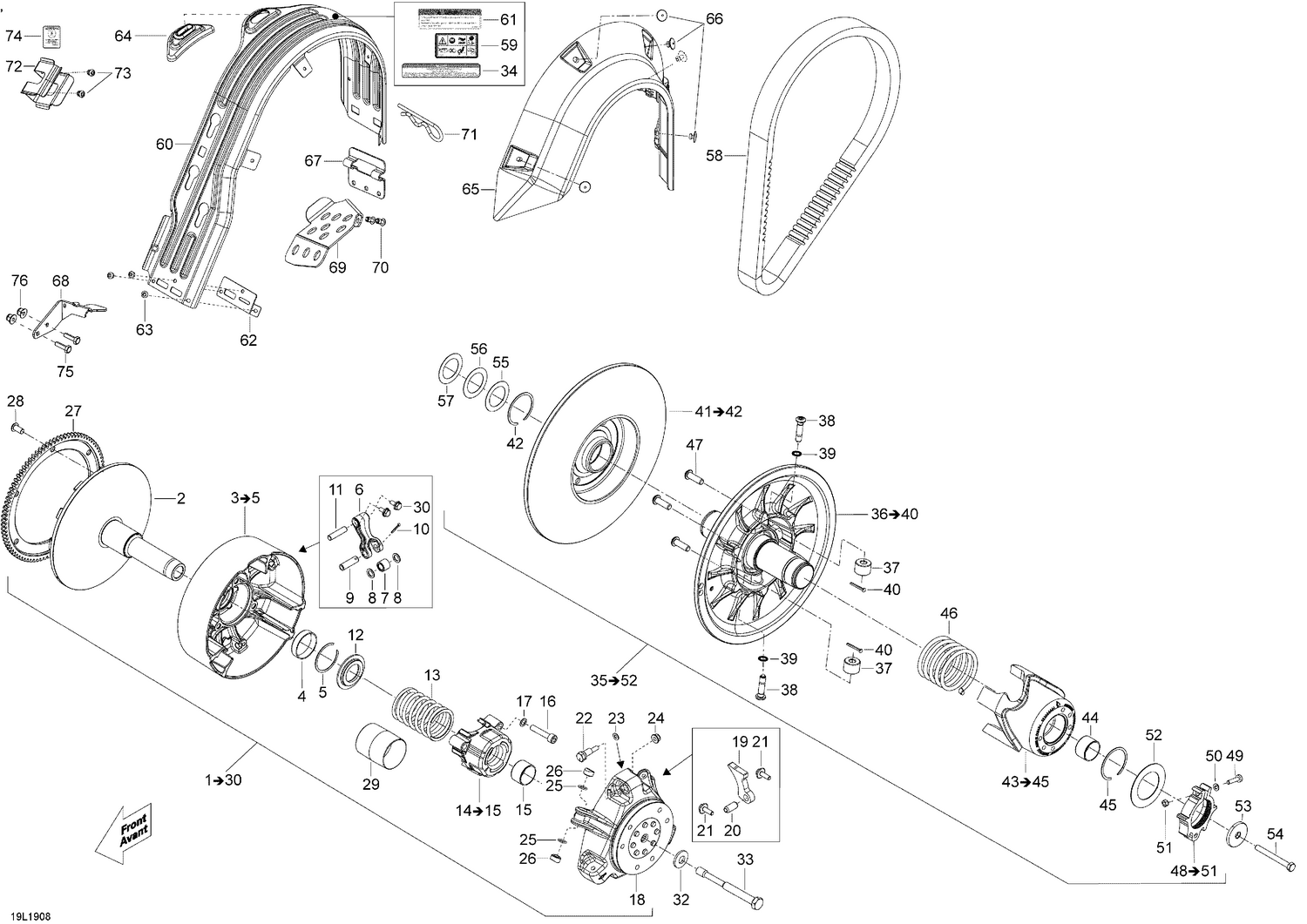

| Ref | Part Number | Description |
|---|
| 2 |
417222937 |
Fixed Flange Ass'y |
| 4 |
417222758 |
Bushing Outer Half |
| 5 |
293370037 |
Circlip |
| 6 |
417222671 |
Roller ass'y |
| 7 |
417222947 |
Roller |
| 8 |
417004302 |
Stopper Washer |
| 9 |
417222594 |
Long full pin 18.8g |
| 10 |
250400060 |
Cotter Pin |
| 11 |
417223164 |
Pannel Nut M6 X 1.0 |
| 12 |
414993000 |
Spring (Yellow / Red, 445-756N / 100-170lbs) |
| 14 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 |
| 15 |
417009204 |
Spring (Red / White, 356-600N / 80-135lbs) |
| 16 |
250200009 |
Ribbed Lock Washer 8 mm |
| 17 |
417223669 |
Governor Cup Ass'y |
| 18 |
417222444 |
Painovarsi 600 |
| 19 |
250400050 |
Spring Pin M10 X 22 |
| 20 |
250000418 |
Flanged Hex. Screw M6 X 18, Scotch Grip |
| 21 |
417223501 |
Calibration Screw |
| 22 |
417005600 |
Drive Pulley Bolt |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
732401030 |
Driven Pulley Ass'y |
| 25 |
417225070 |
Ring Gear_Starter This part replaces 417223738. |
| 26 |
250000533 |
Hex. Flanged Screw M8 x 16, Scotch Grip |
| 27 |
417009205 |
Loctite 271, 10ml |
| 28 |
250000412 |
Flanged Hex. Screw M6 X 12, Scotch Grip |
| 32 |
250200144 |
Conical Spring Washer M14 |
| 33 |
417120000 |
Kytkimen kiinn. pultti M14 |
| 34 |
516005503 |
Decal, Notice, Drive Pulley Bolt |
| 36 |
417127466 |
Fixed Flange Ass'y |
| 37 |
417127189 |
Roller, Vespel |
| 38 |
417127294 |
Torx Screw M8 x 25, Scotch Grip |
| 39 |
250200009 |
Ribbed Lock Washer 8 mm |
| 40 |
250400063 |
Socket Head Screw M5 x 25 |
| 41 |
417127366 |
Sliding Flange Ass'y |
| 43 |
417127411 |
Cam Ass'y (40º) |
| 46 |
417127243 |
Spring (White / White, 476-705N / 107-158lbs) |
| 47 |
250000757 |
Screw-Torx Button Head M8 X 25 S.Gr |
| 48 |
415129604 |
Pulley Adjuster Ass'y |
| 49 |
205052544 |
Socket Head Screw M10 x 1.5 |
| 50 |
234051410 |
Flat Washer M5 |
| 51 |
232551414 |
Elastic Stop Nut M5 |
| 52 |
417127155 |
Washer |
| 53 |
517302322 |
Vahvike aluslevy |
| 54 |
207287544 |
Hex. Cap Screw M8 X 75 |
| 55 |
417300252 |
Spacer |
| 56 |
417300265 |
Spacer |
| 57 |
504112000 |
Justering bricka |
| 58 |
417300551 |
Drive Belt This part replaces 417300383. |
| 59 |
516003919 |
Warning label (EU models) |
| 60 |
417300357 |
Belt Guard |
| 61 |
516006900 |
Driven Pulley Shield Warning Decal |
| 62 |
417300380 |
Reinforcement |
| 63 |
390909200 |
Avex Rivet |
| 64 |
417300381 |
Guide rubber |
| 65 |
417300356 |
Side Protector |
| 66 |
293150103 |
Pop Rivet 3/16 |
| 67 |
417300413 |
Belt Guard Bracket |
| 68 |
417300451 |
BELT GUARD BRACKET - Call your local BRP dealership |
| 69 |
518327035 |
Brake Hose Cover |
| 70 |
293150163 |
Rivet Hucklok |
| 71 |
114045200 |
Hair Pin |
| 72 |
517281905 |
Drive Belt Bracket |
| 73 |
390909100 |
Avex Rivet |
| 75 |
293150096 |
Hemlock Rivet, 6.5 mm |
