Home / BRP / Can-Am ATV / 2007 / Outlander / Outlander MAX 800 LTD 4 X 4, 2007 0002M7A00 0002M7B00 0002M7C00 / 10- Electrical System

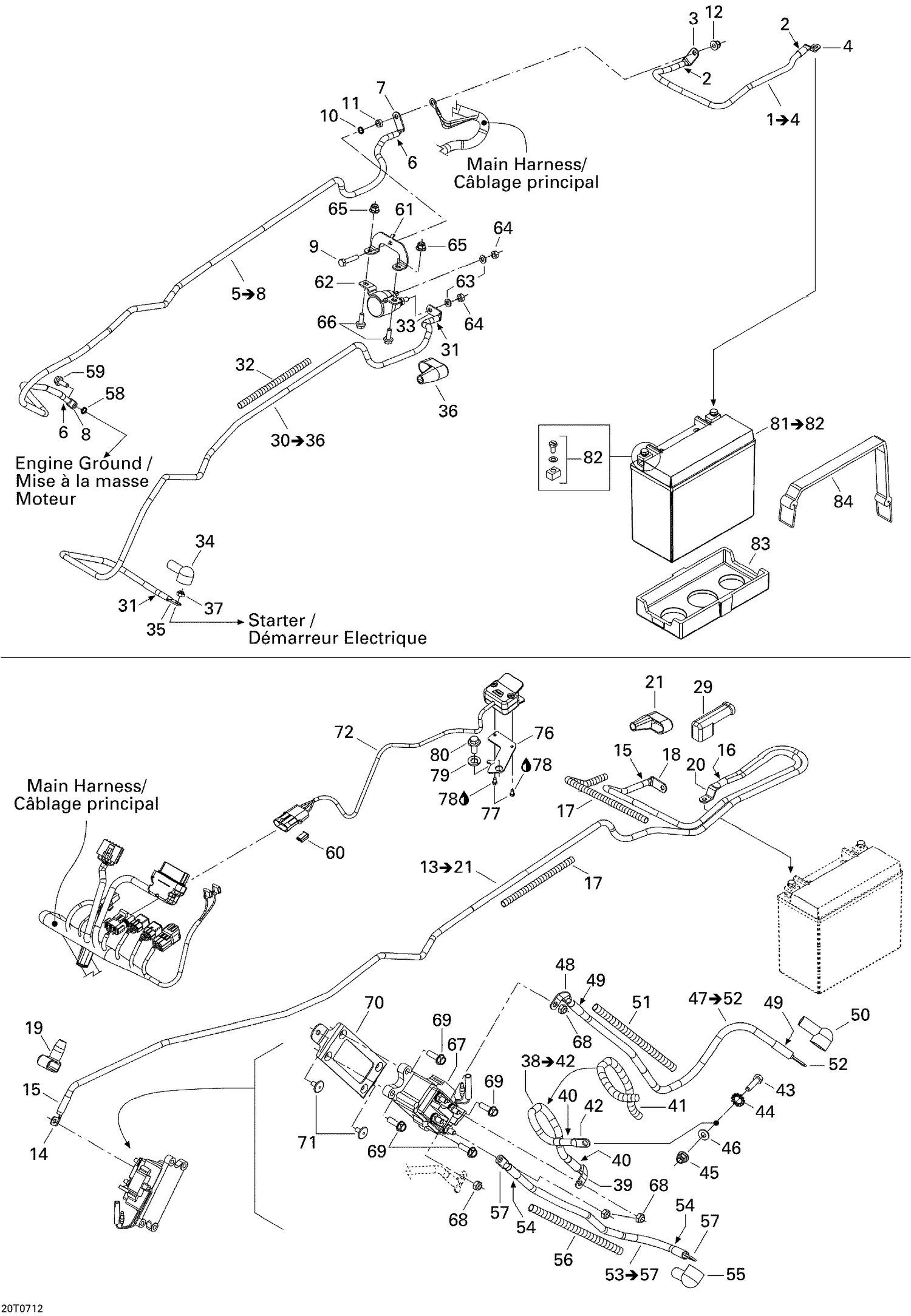

10- Electrical System

10- Electrical System

Parts (65)

RefPart NumberDescription
2 219704447 Was 710000483 Heat Shrink Tubing
3 710000508 Open Barrel
4 710000518 Open Barrel
6 219704447 Was 710000483 Heat Shrink Tubing
7 710000508 Open Barrel
8 710000530 Open Barrel
9 207162544 Hex. Screw M6 X 25
10 234461608 External Serrated Lock Washer 6 mm
11 232061414 Hex. Nut M6
12 233061414 Hex. Flange Nut M6
14 710000476 OPEN BARREL, 6.6 MM - Call your local BRP dealership
15 219704447 Was 710000483 Heat Shrink Tubing
16 275500578 Shrink Tubing
17 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
18 710000508 Open Barrel
19 710001828 PROTECTOR CAP - Call your local BRP dealership This part replaces 710000522.
20 710000519 Open Barrel
21 710001817 Protector Cap This part replaces 710000902.
29 710001829 Protector Cap This part replaces 710000516.
31 219704447 Was 710000483 Heat Shrink Tubing
32 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
33 710000508 Open Barrel
34 710000526 Protector Cap
35 710000530 Open Barrel
36 710001817 Protector Cap This part replaces 710000902.
37 232561414 Elastic Stop Nut M6
39 710000476 OPEN BARREL, 6.6 MM - Call your local BRP dealership
40 219704447 Was 710000483 Heat Shrink Tubing
41 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
42 710000530 Open Barrel
43 207662044 Hex. Flange Screw M6 X 20
44 250200041 Lock Washer Serrated M6
45 233261414 Hex. Flange Elastic Nut M6 x 1.0
46 224061121 Flat Washer
48 710000476 OPEN BARREL, 6.6 MM - Call your local BRP dealership
49 219704447 Was 710000483 Heat Shrink Tubing
50 710000494 Protector Cap
51 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
52 710000530 Open Barrel
54 219704447 Was 710000483 Heat Shrink Tubing
55 710000494 Protector Cap
56 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
57 710000530 Open Barrel
58 234461608 External Serrated Lock Washer 6 mm
59 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
60 409014200 CLIP - Call your local BRP dealership
61 710001260 SOLENOID SUPPORT - Call your local BRP dealership This part replaces 705201325.
62 515176011 Starter Relay
63 234161601 Lock Washer Helical M6
64 232061600 Hex. Nut M6
65 233061414 Hex. Flange Nut M6
66 207661244 Hex. Flange Screw M6 X 12
67 710001000 Winch Solenoid
68 232561414 Elastic Stop Nut M6
69 210262050 Hexagonal Head Screw This part replaces 210262080.
70 710001813 WINCH RELAY SUPPORT - Call your local BRP dealership This part replaces 710000798.
71 390406500 Pop Rivet 3/16"
72 710001001 WINCH INTERRUPTER - Call your local BRP dealership
76 710000755 WINCH INTERRUPTER SUPPORT - Call your local BRP dealership
77 250000153 Hex. Cap Screw 6-32 X 1/4"
78 293800060 Loctite 243, 10 ml
79 234101601 Helicoidal Lock Washer M10
80 250000029 HEX. SCREW M10 X 16 - Call your local BRP dealership
82 250000282 Battery Bolt Kit This part replaces 295500849.
83 710000279 INSULATOR PAD - Call your local BRP dealership
