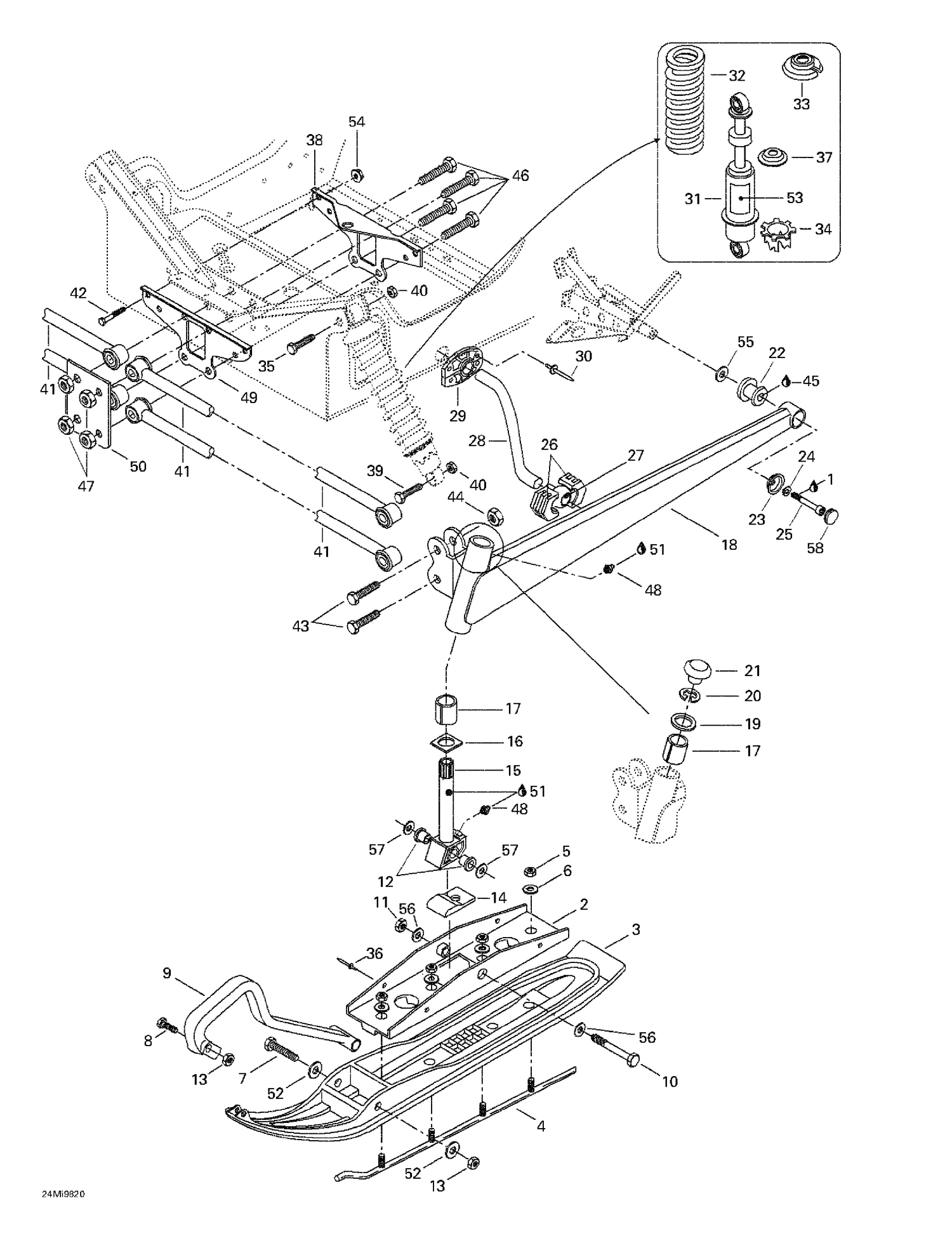

| Ref | Part Number | Description |
|---|
| 1 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 2 |
580668200 |
Bridge Ass'y |
| 3 |
505070189 |
Ski-Liner Flex This part replaces 572101100. |
| 5 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 6 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 7 |
230080044 |
SCREW-HEX. M8 X 100 - Call your local BRP dealership This part replaces 732601303. |
| 8 |
207085044 |
Hex. Screw M8 X 50 This part replaces 222085065. |
| 9 |
505070963 |
Black, Handle This part replaces 572101000. |
| 10 |
732601169 |
Hex. Screw M12 x 120 |
| 11 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 12 |
414530600 |
CUSHION - Call your local BRP dealership |
| 13 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 14 |
570053300 |
Ski Stopper |
| 15 |
506144500 |
Ski Leg |
| 16 |
506081200 |
Wear Plate |
| 17 |
572069900 |
Cushion |
| 18 |
506144200 |
LH Swing Arm |
| 19 |
506080900 |
Thrust Washer |
| 20 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 21 |
572091300 |
Cap |
| 22 |
570062200 |
DAMPER - Call your local BRP dealership |
| 23 |
705007171 |
Cup This part replaces 506115800. |
| 24 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 25 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 26 |
572069800 |
Block Sliding |
| 27 |
506127300 |
Ball Joint |
| 28 |
506127400 |
Stabilizator |
| 29 |
572077600 |
Half-Bushing |
| 30 |
390402300 |
Pop Rivet 3/16" |
| 31 |
414969900 |
Shock |
| 32 |
415083700 |
Spring (Yellow) |
| 33 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 34 |
503169000 |
Cam |
| 35 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 36 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 37 |
503165100 |
GUIDE_SPRING - Call your local BRP dealership |
| 38 |
517254900 |
Rear Link Plate |
| 39 |
207005544 |
Hex. Screw M10 X 55 This part replaces 222005565. |
| 40 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 41 |
580649500 |
Arm Ass'y |
| 42 |
207065544 |
Hex. Screw M6 X 55 This part replaces 222065565. |
| 43 |
222025075 |
Hex. Screw M12 x 50 |
| 44 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 45 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 46 |
732601113 |
Hex. Screw M12 x 100 |
| 47 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 48 |
408200700 |
Grease Fitting |
| 49 |
517254800 |
Front Link Plate |
| 50 |
518306700 |
Support |
| 51 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 52 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 53 |
418001500 |
Shock Decal |
| 54 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 55 |
503146700 |
WASHER - Call your local BRP dealership |
| 56 |
506136400 |
FLAT WASHER - Call your local BRP dealership |
| 57 |
732900048 |
Washer |
| 506144100 |
Bras |
Oscillant DDR 506144100 |
| 506144100 |
RH |
Swing Arm 506144100 |
