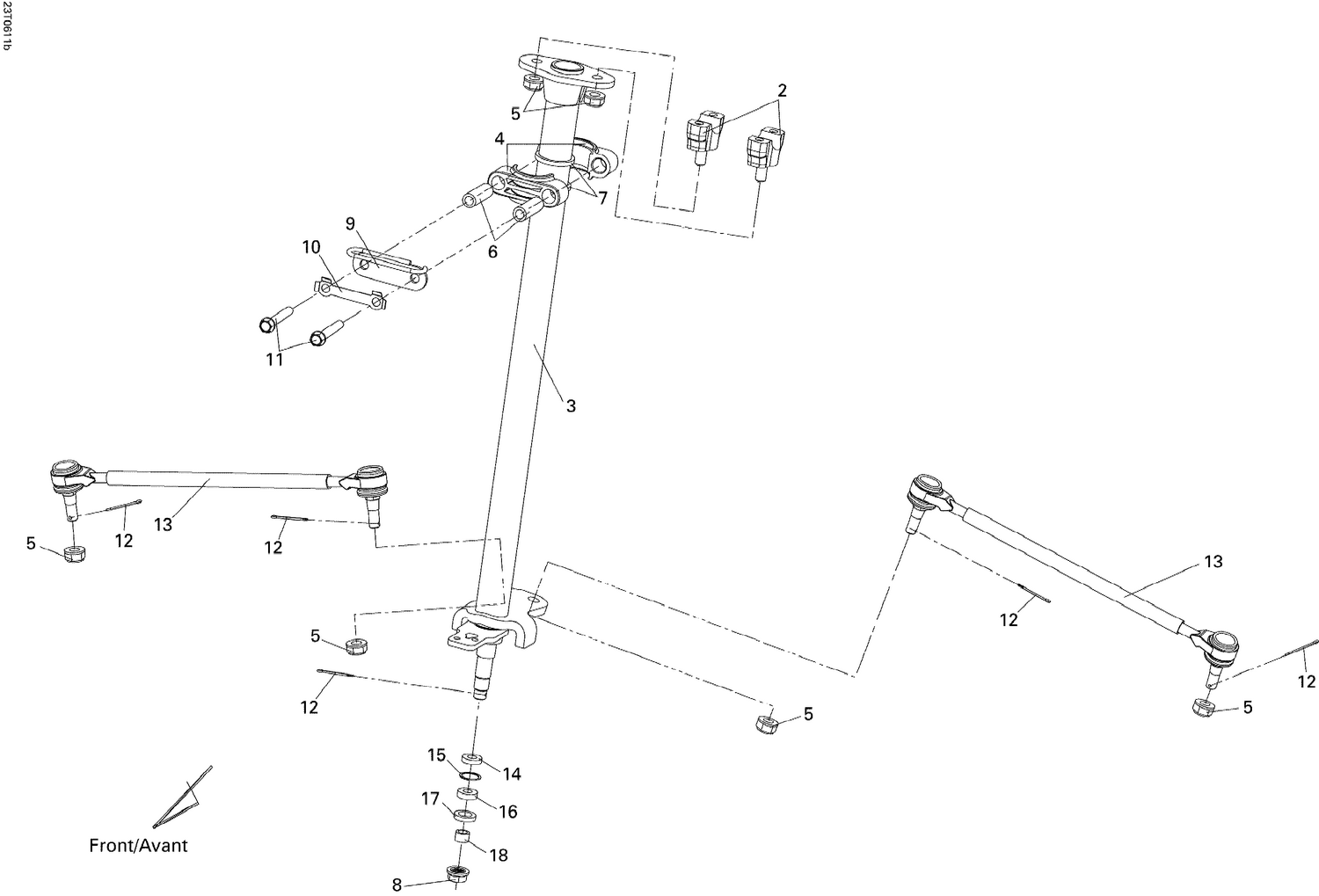

07- Steering Linkage
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | S53121RCA000 | HANDLE BAR BOTTOM CLAMP - Call your local BRP dealership |
| 3 | S53200RCA000 | Steering Column |
| 4 | S53202RCA000 | Half Bushing |
| 5 | S90304M9Q800 | Hex. Flange Nut 10 mm |
| 6 | S53203RCA000 | Bushing |
| 7 | S91208RCA000 | Oil Seal |
| 8 | S90305GW0901A | SELF LOCK NUT 14 MM - Call your local BRP dealership |
| 9 | S53204RCA000 | Steering Column Holder Plate |
| 10 | S53206RCA000 | Lock Tab |
| 11 | S958010806007 | Flanged Bolt M8 X 60 |
| 12 | S9420125250 | Split Pin |
| 13 | S50258RCA000 | Tie-rod Ass'y |
| 14 | S91210RCA000 | Oil Seal |
| 15 | S9452032000 | Circlip |
| 16 | S961306002310 | Ball Bearing |
| 17 | S91211RCA000 | Oil Seal |
