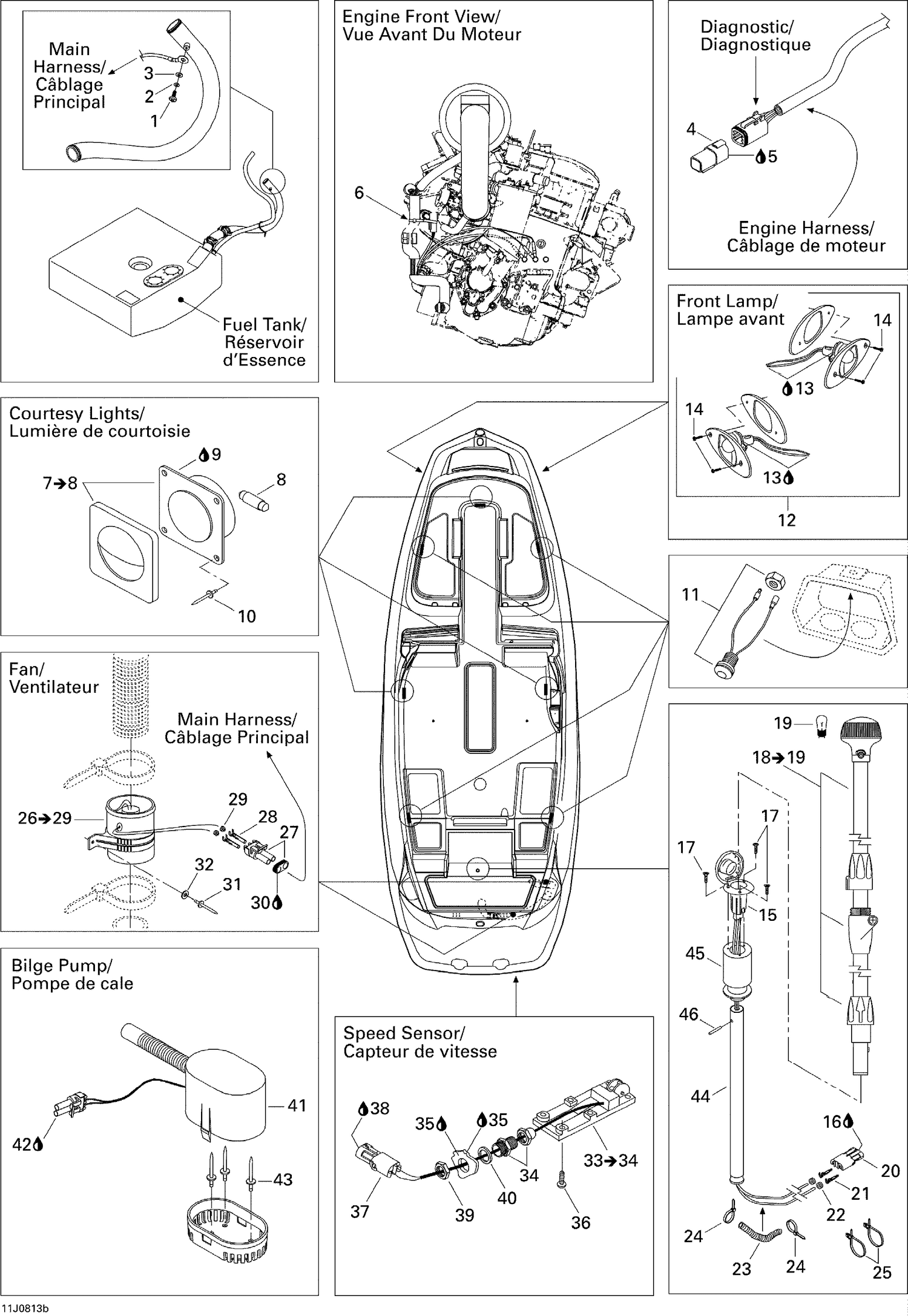

| Ref | Part Number | Description |
|---|
| 1 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 2 |
234141601 |
Lock Washer 4 mm |
| 3 |
234041600 |
Flat Washer 4 mm, Stainless |
| 4 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 5 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 6 |
414115200 |
Tie-Rap 180 mm |
| 8 |
204470081 |
BULB - Call your local BRP dealership |
| 9 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 10 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 11 |
204471169 |
LED Light Ass'y |
| 12 |
204470908 |
LATERAL LIGHT KIT - Call your local BRP dealership |
| 13 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 14 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 15 |
204471275 |
Base Lamp |
| 16 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 19 |
204470053 |
Bulb |
| 20 |
278000217 |
Female Housing, 2 Circuits |
| 21 |
278000222 |
Male Terminal |
| 22 |
278000218 |
Wire Seal |
| 23 |
204050326 |
SPLIT LOOM 3/8, METER - Call your local BRP dealership |
| 24 |
293750001 |
Tie Wrap 94 mm |
| 25 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 27 |
278000220 |
Male Connector, 2 Circuits |
| 28 |
278000223 |
Female Terminal |
| 29 |
278000218 |
Wire Seal |
| 30 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 31 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 32 |
234052600 |
Flat Washer 5 mm, Stainless |
| 34 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 35 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 36 |
208551060 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 37 |
278000217 |
Female Housing, 2 Circuits |
| 38 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 39 |
293710032 |
LOCKING NUT - Call your local BRP dealership |
| 40 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 41 |
204471431 |
Bilge Pump |
| 42 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 43 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 44 |
204950025 |
SKI SHAFT - Call your local BRP dealership |
| 45 |
204950024 |
SKI SHAFT CAP - Call your local BRP dealership |
