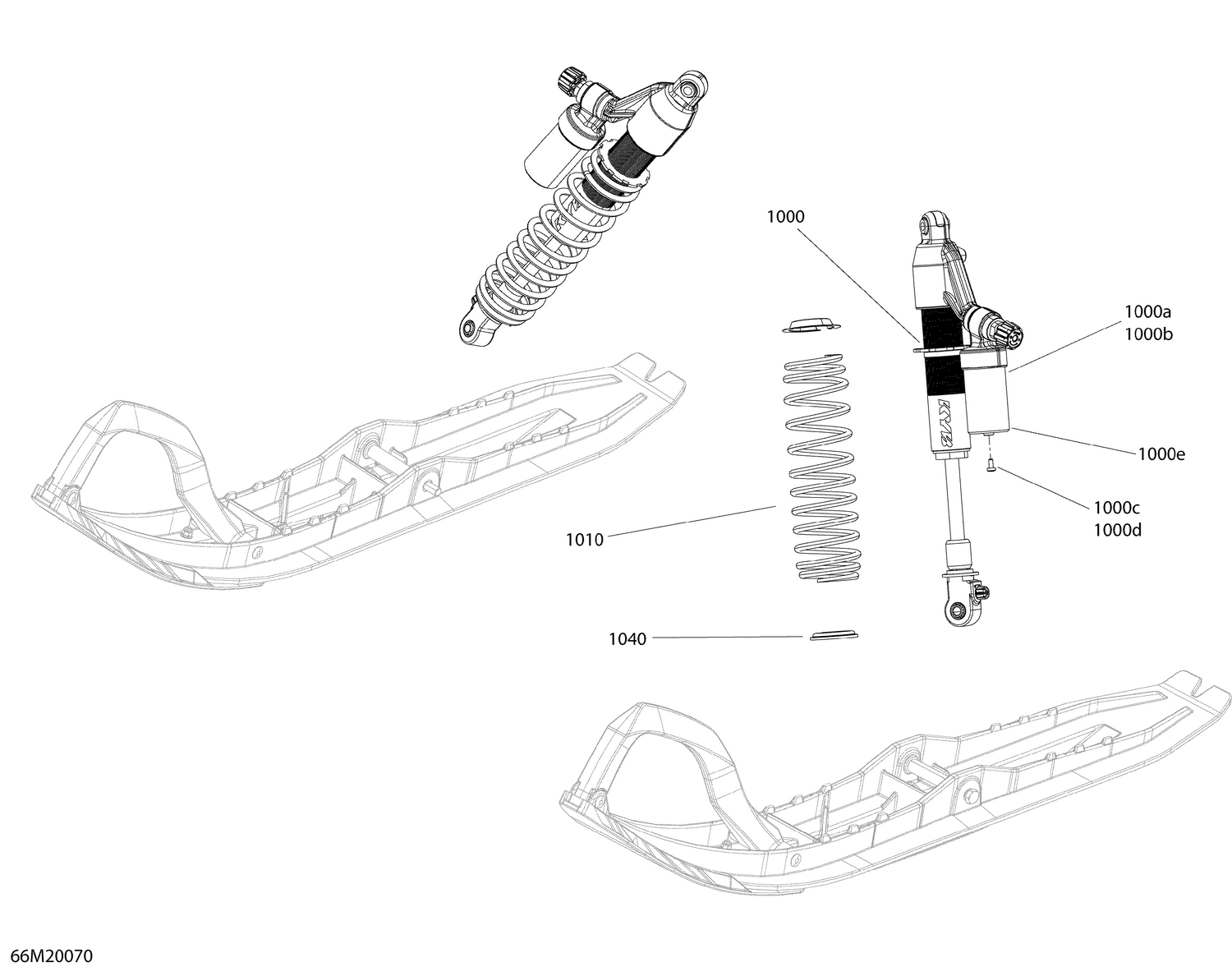

07- Suspension, Front - Shocks

07- Suspension, Front - Shocks

Parts (6)

RefPart NumberDescription
1000a 415093807 O-Ring
1000b 415093806 Piston Ring
1000c 505070400 O-Ring
1000d 505070399 Screw
1000e 415093804 O-Ring
1010 505074309 Deep Black, Spring
