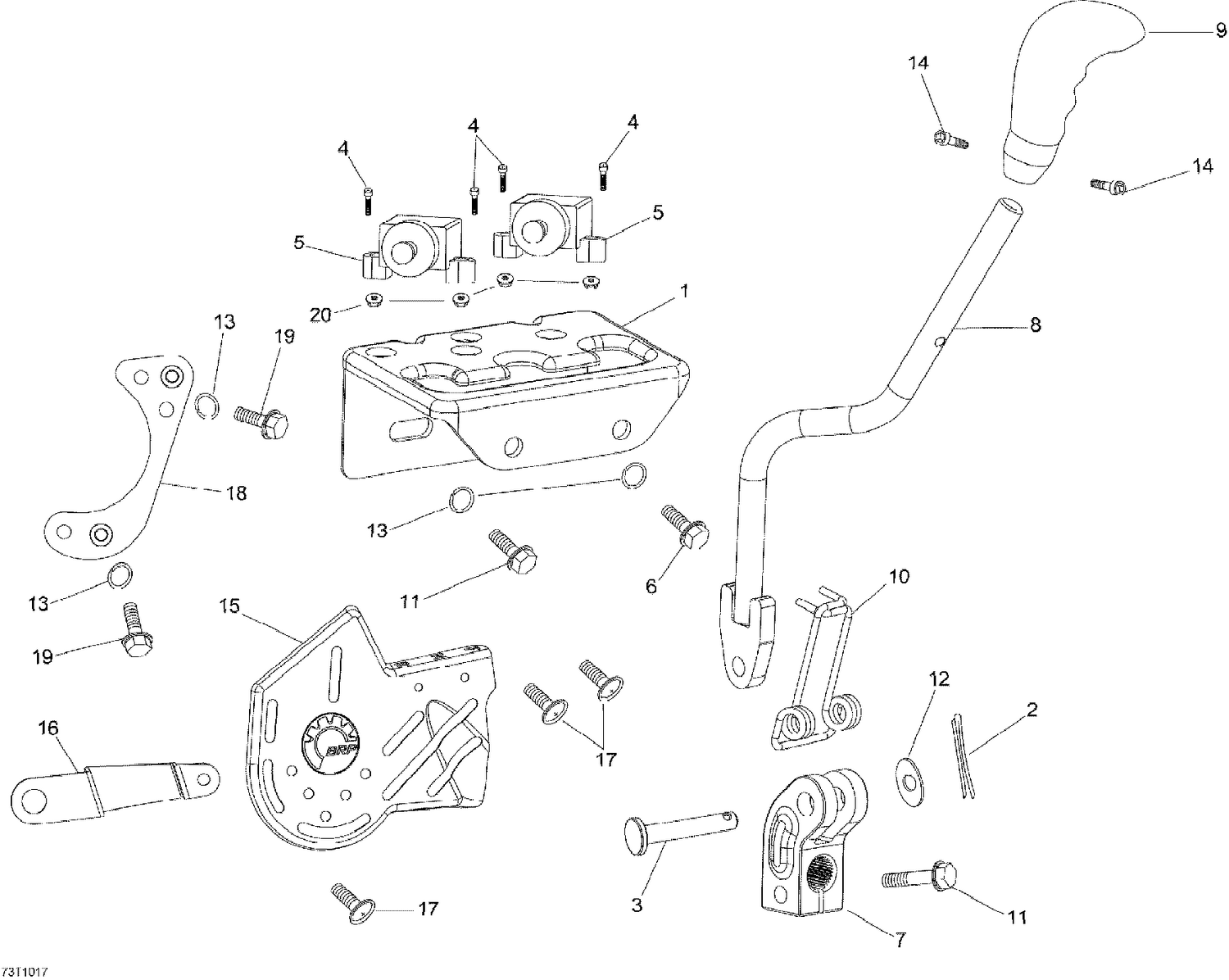

05- Shift Lever
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V72101DGF00H | Shift Plate |
| 2 | V9420130032LL | Cotter Pin This part replaces V9420130032. |
| 3 | V50226MAF040LL | Pin |
| 4 | V935000501501 | BOLT - Call your local BRP dealership |
| 5 | V35152DGF060 | Switch |
| 6 | 207661644 | Hex. Flange Screw M6 X 16 |
| 7 | V72315MAD040 | Support Shifter |
| 8 | V72314DGF050LL | Shifter This part replaces V72314DGF050. |
| 9 | V72201CEK040LL | Handle This part replaces V72201CEK040. |
| 10 | V54294MAF030LL | Spring This part replaces V54294MAF030. |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 12 | V941010816015LL | Washer |
| 13 | 234161601 | Lock Washer Helical M6 |
| 14 | V9105005006 | Socket Head Screw |
| 15 | V50122DGF03HLL | Front Chain Guard This part replaces V50122DGF02H. |
| 16 | V50124DGF00H | Chain Guard Bracket |
| 17 | V9300006012BLL | Round Head Bolt M6 X 12, White This part replaces V9300006012B. |
| 18 | V50242DGF02H | Rear Chain Guard This part replaces V50242DGF00H. |
| 19 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
