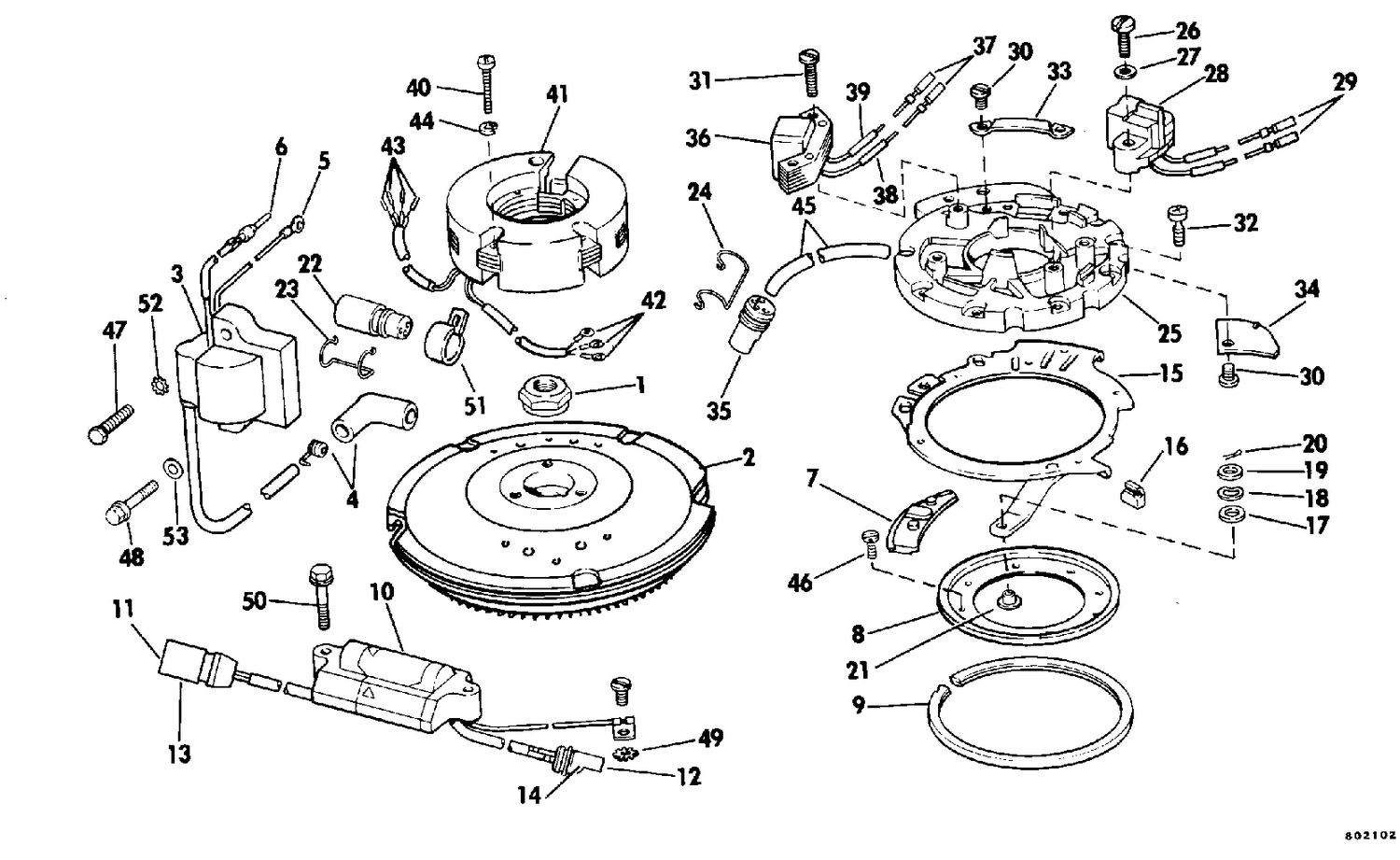

| Ref | Part Number | Description |
|---|
| 1 |
0302944 |
NIT,Flywheel |
| 2 |
0583913 |
FLYWHEEL ASSEMBLY This part replaces 0582141. |
| 2 |
0583915 |
FLYWHEEL & RING GEAR ASSY. This part replaces 0582144. |
| 3 |
0581998 |
COIL ASSY |
| 5 |
0510767 |
RING TERMINAL |
| 7 |
0323659 |
CAM, Throttle control |
| 8 |
0322102 |
PLATE, Support |
| 9 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 10 |
0581927 |
POER PACK ASSY |
| 13 |
0511449 |
COMMECTOR, Coil to power pack |
| 15 |
0395243 |
RETAINER & LINK ASSEMBLY This part replaces 0389205. |
| 16 |
0326936 |
SLEEVE, Retainer This part replaces 0321563. |
| 17 |
0306358 |
FLAT WASHER, Helm mounting |
| 18 |
0204757 |
BOW WASHER |
| 19 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 21 |
0307841 |
BUSHING, Control lever |
| 24 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 28 |
0583387 |
SENSOR ASSEMBLY This part replaces 0582069. |
| 32 |
0511460 |
VIS, dispositif de retenue |
| 33 |
0511458 |
COLLIER, fils |
| 34 |
0511459 |
CACHE, fils |
| 36 |
0581670 |
CHARGE COIL This part replaces 0582059. |
| 41 |
0581651 |
STATOR ASSEMBLY |
| 45 |
0511482 |
SLEEVE |
| 48 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0324697. |
| 50 |
0328726 |
SCREW (Use existing coil screw) This part replaces 0323796. |
| 0582021 |
0582021 |
PLATE ASSEMBLY COMPLETE |
| 0582029 |
0582029 |
CHARGE COIL & PLATE ASSY |
