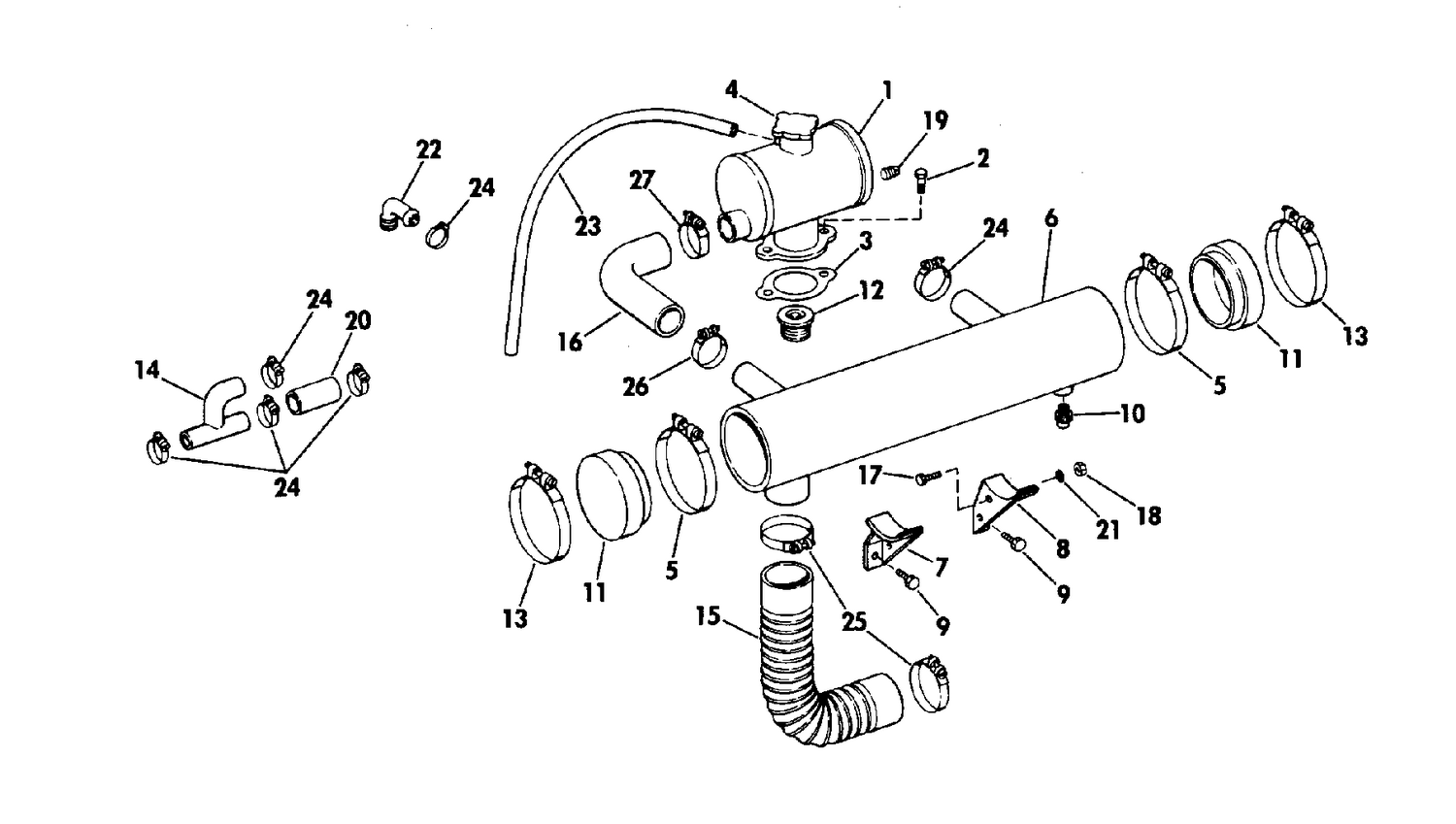

| Ref | Part Number | Description |
|---|
| 1 |
SJE023-2 |
EXPANSION TANK |
| 2 |
SJE023-3 |
BOLTS (3/8" STD X 3/4") EXPANSION TANK MOUNT |
| 3 |
SJE023-4 |
GASKET, Expansion tank |
| 4 |
SJE023-5 |
FILL CAP (12 P S I) EXPANSION TANK |
| 5 |
SJE023-6 |
CLAMPS, Size #64, heat exchanger mount |
| 6 |
SJE023-7 |
HEAT EXCHANGER |
| 7 |
SJE023-8 |
RIGHT MOUNT, Heat exchanger |
| 8 |
SJE023-9 |
LEFT MOUNT, Heat exchanger |
| 9 |
SJE023-9A |
BOLTS (3/8" STD X 7/8") HEAT EXCHANGER MOUNT |
| 10 |
SJE023-10 |
ZINC ANODE (1/4" N P T), Water drain |
| 11 |
SJE023-40 |
CAP, Heat exchanger end, neoprene 4" i d use |
| 12 |
SJE023-12 |
THERMOSTAT (DVI-160 degrees F.) |
| 13 |
SJE021-31 |
CLAMP, Heat exchanger end caps #68 |
| 14 |
SJE023-41 |
DIVIDER TEE |
| 15 |
SJE023-18 |
HOSE, Flex (1-3/4" x 13") heat exchanger to engine pump inlet |
| 16 |
SJE023-19 |
HOSE, Elbow (1-1/2" x 90") tank to heat exch anger |
| 17 |
SJE023-32 |
BOLT, 1/4" x3/4" voltage regulator |
| 18 |
SJE023-33 |
NUT, 1/4" voltag regulator |
| 19 |
SJE023-35 |
PIPE PLUG, 1/2" water drain |
| 20 |
SJE023-38 |
HOSE, Straight (7/8" x 10") w divider to lef t exhaust, rear |
| 21 |
SJE023-34 |
LOCKWASHER, 1/4" voltage regulator |
| 22 |
SJE023-37 |
PIPE NIPPLE, 1/2" x 1-1/2" |
| 23 |
SJE023-26 |
HOSE, Overflow (5/16" x 26") expansion tank fill neck |
| 24 |
SJE023-27 |
CLAMPS, Size #10, hose |
| 25 |
SJE023-31 |
CLAMPS, Size #28, hose |
| 0172788 |
0172788 |
HEAT EXCHANGER KIT |
