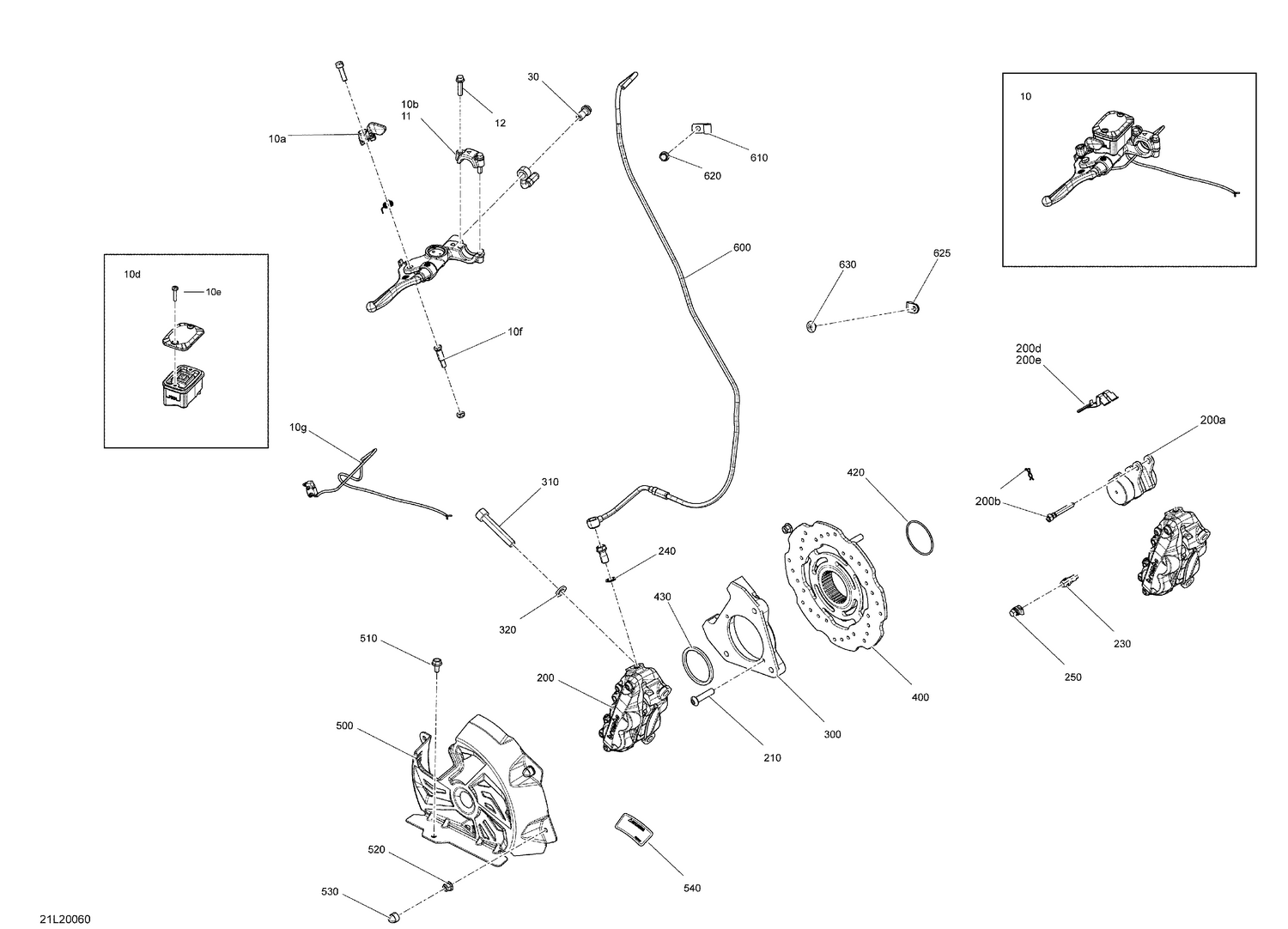

06- Brakes - System - 3300
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 507032476 | Lever With Parking Lock |
| 10e | 415129356 | Screw M4 X 20 |
| 10f | 415030000 | Pin Ass'y |
| 10g | 507032601 | Microswitch |
| 11 | 719000049 | Clamps Kit |
| 12 | 250000447 | Hex Flanged Screw M6 X 25 |
| 30 | 507032551 | Banjo Bolt |
| 200a | 507032615 | Brake Pads Kit |
| 200b | 507032616 | Pin & Spring Kit |
| 200d | 507032617 | Spring Plate |
| 200e | 507032618 | Spring Clips |
| 210 | 250000971 | Screw-torx Button Head M8 X 35 |
| 230 | 705601201 | Banjo Bolt/ Bleeder |
| 240 | 705601628 | Copper Washer |
| 250 | 705601190 | Bleeder Bolt Cap |
| 300 | 507032624 | Caliper Bracket |
| 310 | 244006060 | Socket Screw M10 X 60 |
| 320 | 503192496 | Washer |
| 400 | 507032677 | Disc Brake Ass'y |
| 420 | 293300221 | O Ring |
| 430 | 507032612 | Spacer |
| 500 | 507032662 | Black, Disc Protector |
| 510 | 250000767 | Torx Truss Screw M6 X 12 |
| 520 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 530 | 293900129 | Hexagonal Cap |
| 540 | 516009932 | Warning Decal |
| 600 | 507032609 | Brake Hose |
| 610 | 414108400 | Open Clamp |
| 620 | 210261040 | Hex. Flanged Forming Screw M6 X 10 |
| 625 | 293650257 | Hose Clamp |
