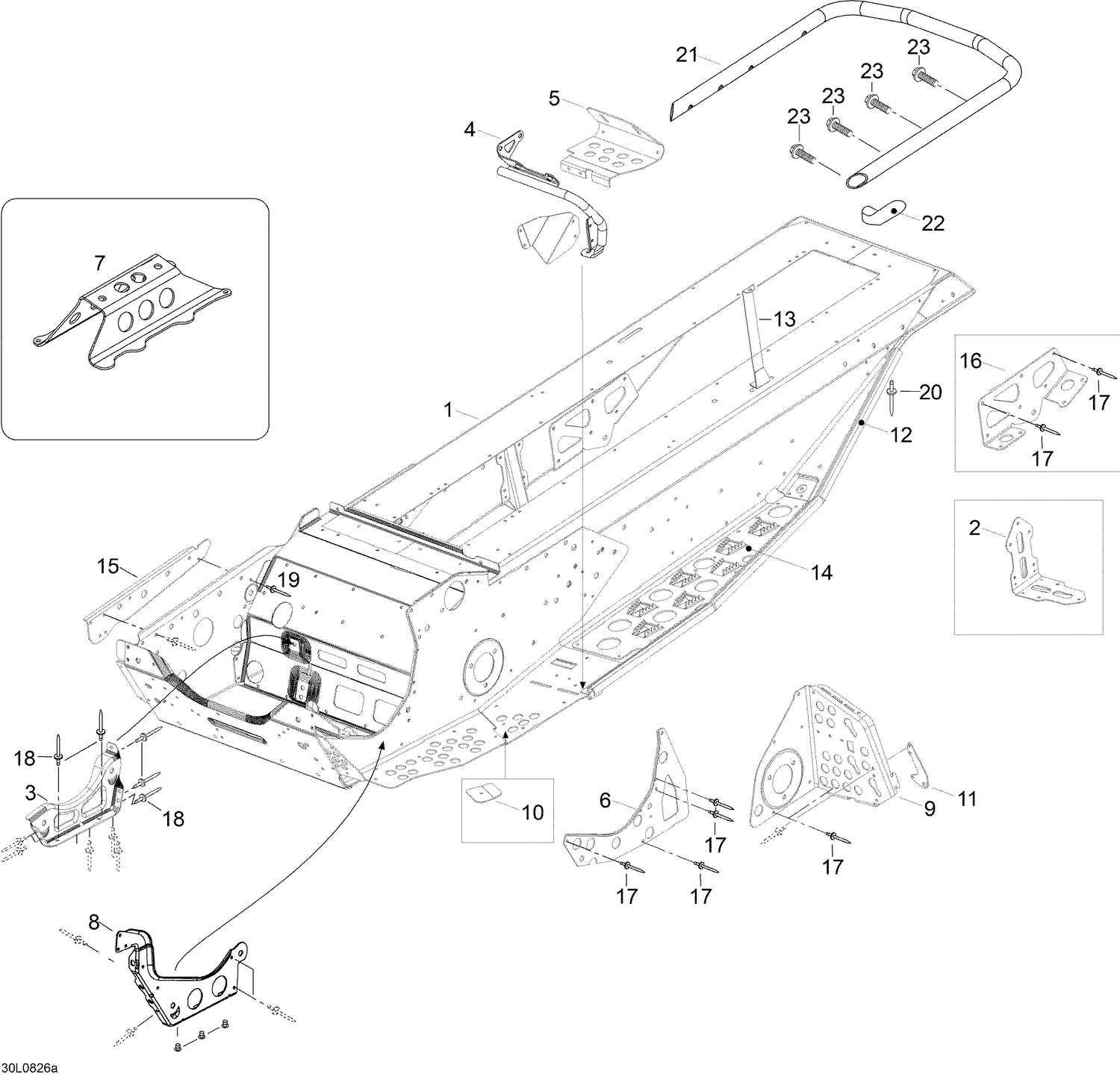

09- Frame
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518323578 | CENTER REINFORCEMENT - Call your local BRP dealership |
| 3 | 518323346 | ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 4 | 605354700 | L.H. Footrest |
| 4 | 605354701 | R.H. Footrest |
| 5 | 605353980 | R.H. Toe hold |
| 5 | 605353981 | L.H. Toe hold |
| 6 | 605350345 | Inner reinforcement |
| 7 | 518324093 | CENTER CROSS LINK - Call your local BRP dealership |
| 8 | 605451826 | L.H. Engine support |
| 9 | 518323805 | R.H. footrest reinforcement |
| 9 | 518324527 | LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 10 | 605451590 | Rivet plate |
| 11 | 605453453 | L.H. Bracket |
| 11 | 605453454 | R.H. Bracket |
| 12 | 605353982 | R.H. Roller |
| 12 | 605353983 | L.H. Roller |
| 13 | 605351612 | L.H. Steel strip |
| 13 | 605351613 | R.H. Steel strip |
| 14 | 605254123 | L.H. Side bracket |
| 14 | 605254124 | R.H. Side bracket |
| 15 | 605353544 | L.H. Side bracket |
| 16 | 605354140 | L.H. Side bracket |
| 16 | 605354141 | R.H. Side bracket |
| 17 | 36080 | Rivet |
| 18 | 36007 | Rivet |
| 19 | 36094 | Rivet |
| 20 | 36108 | Rivet |
| 21 | 605353643 | Rear bumper |
| 22 | 520000272 | CAP - Call your local BRP dealership |
