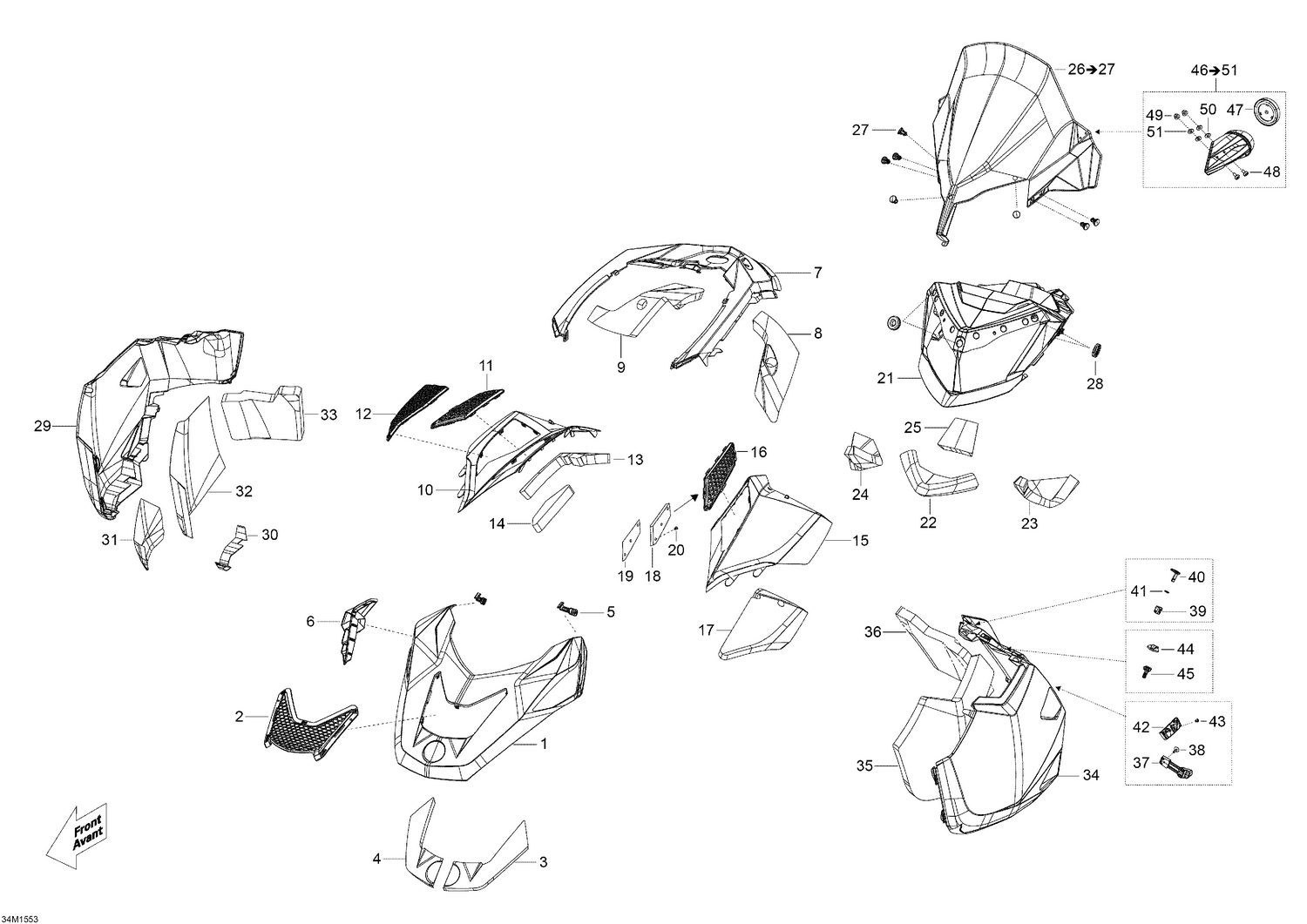

09- Hood _34M1553
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304812 | Black, Hood |
| 2 | 517304843 | Hood Grille |
| 3 | 517304330 | Insulator |
| 4 | 517304214 | Insulator |
| 5 | 517304289 | Latch Pannel |
| 6 | 517306980 | Scoop Grille This part replaces 517304155. |
| 7 | 517305220 | Black, Console |
| 8 | 517305644 | Insulator |
| 9 | 517304318 | Insulator |
| 10 | 517304829 | Black, RH Side Access Panel |
| 11 | 517304015 | RH Access Panel Grille |
| 12 | 517304016 | RH Lower Acces Grille |
| 13 | 517304311 | Insulator |
| 14 | 517304312 | Insulator |
| 15 | 517304839 | Black, LH Side Access Panel |
| 16 | 517303893 | LH Access Panel Grille |
| 17 | 517304313 | Insulator |
| 18 | 517305311 | Insulator |
| 19 | 502007312 | Grille plate |
| 20 | 414644300 | Black, Dart |
| 21 | 517304272 | Indicator Support |
| 22 | 517304314 | Insulator |
| 23 | 517304315 | Insulator |
| 24 | 517304316 | Insulator |
| 25 | 517304319 | Insulator |
| 27 | 517304744 | Button |
| 28 | 517303756 | Grommet |
| 29 | 517306970 | Black, RH Side Panel This part replaces 517304866. |
| 30 | 517304215 | Aluminium Foil |
| 31 | 517304216 | Aluminium Foil |
| 32 | 517303890 | RH Foam |
| 33 | 517304310 | RH Rear Foam |
| 34 | 517306973 | Black, LH Side Panel This part replaces 517304869. |
| 35 | 517303891 | LH Foam |
| 36 | 517304309 | LH Rear Foam |
| 37 | 517304572 | Latch-Panel |
| 38 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 39 | 517304297 | Handle Fastener Quarter-Turn |
| 40 | 517304296 | Quarter-Turn Handle |
| 41 | 517304538 | Locking Plate |
| 42 | 517304497 | Side Panel Support |
| 43 | 293150211 | Rivet |
| 44 | 860200239 | Black Latch Kit |
| 45 | 517306057 | Latch-Panel This part replaces 517304573. |
| 47 | 517304629 | Mirror |
| 48 | 250000721 | Torx Truss Screw M6 X 16 |
| 49 | 232361493 | Domed Nut M6 |
| 50 | 250200024 | Rubber Washer 5 mm |
