Home / BRP / STERN DRIVE / 1997 / 5.70 / 572BPLKD 1997 / EXHAUST & COOLING

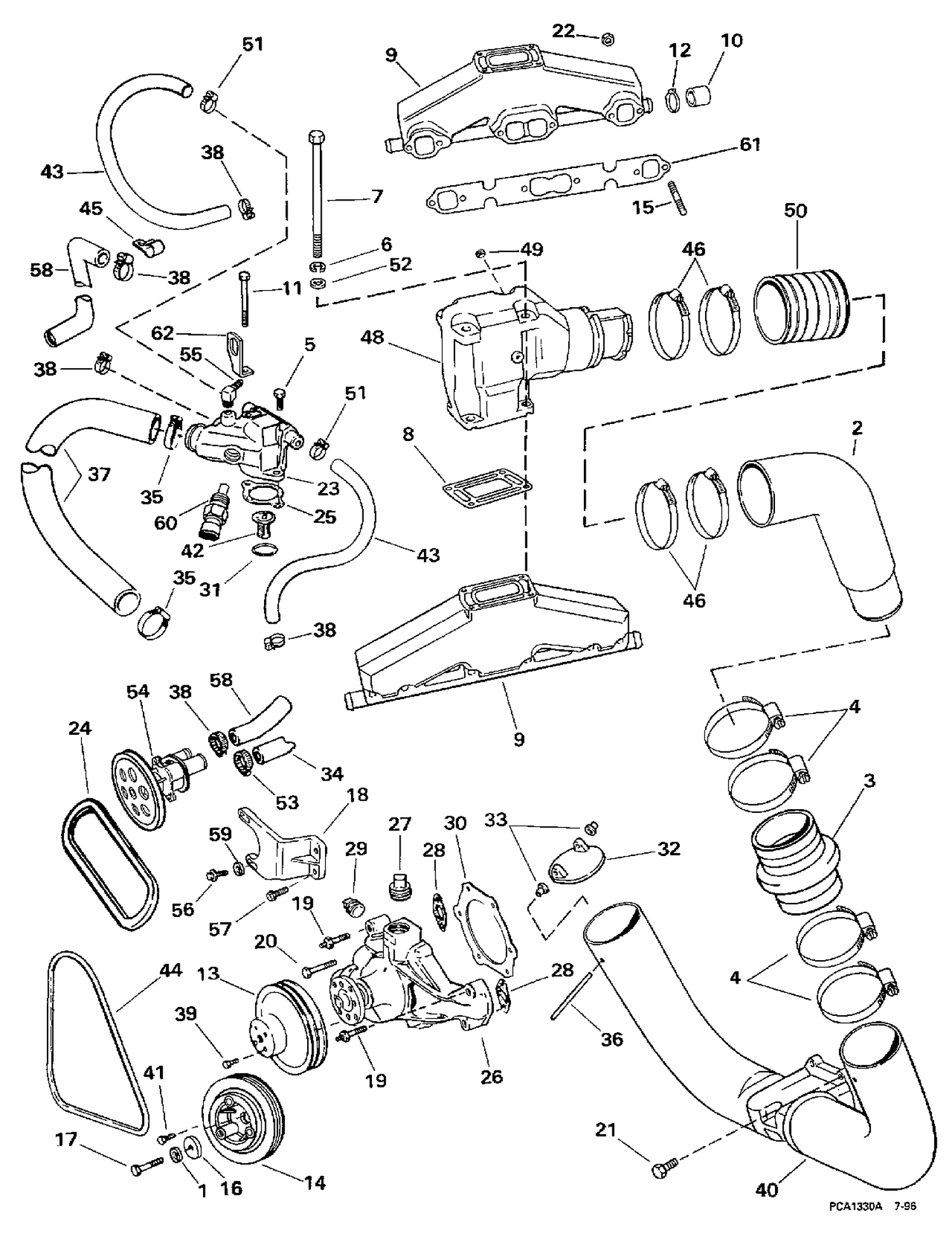

EXHAUST & COOLING

EXHAUST & COOLING

Parts (58)

RefPart NumberDescription
1 0303269 L'WASHER, Upper This part replaces 3852046.
2 3852738 EXHAUST PIPE, Upper
3 3852742 HOSE, Exhaust pipe
4 3852604 CLAMP, Exhaust
5 3853401 SCREW, Housing to manifold
6 0120177 L'WASHER, Alternator to brkt This part replaces 3852002.
7 3852830 HUB,Water pump pulley
8 3850496 GASKET, Elbow
9 3857723 EXHAUST MANIFOLD This part replaces 3852374.
10 3852476 CAP, Manifold
11 3853430 SCREW, Manifold, 5 1/4 in. This part replaces 3853391.
12 0912627 CLAMP This part replaces 3852602.
13 0384104 PULLEY ASSEMBLY This part replaces 3852220.
14 3851991 PULLEY, Crankshaft
15 3852467 STUD, Manifold to engine
16 3852110 WASHER, Harmonic balancer
17 0949519 SCREW, Balancer
18 3856865 BRACKET, Water pump
19 3852507 STUD, Bracket to water pump
20 3854653 BOLT, Intake manifold, short This part replaces 3853539.
21 3855472 SCREW, Pipe to gimbal This part replaces 3852898.
22 3853404 NUT, Exhaust manifold
23 3850360 HOUSING, Thermostat
24 3857015 BELT, Water pump
25 0312797 GASKET, Therm. hsg. to adapter This part replaces 3852111.
26 3853850 WATER PUMP ASSY.
27 0909601 PLUG, Manifold This part replaces 3850802.
28 3852477 GASKET, Pump to block
29 3850999 PLUG
30 3850595 GASKET, Water pump cover
32 3853864 EXHAUST SEAL ASSY
33 3855517 BUSHING, Pin
34 3850231 HOSE, Cooler to water pump
34 3856250 HOSE, Cooler to water pump
36 0913663 PIN EXHAUST FLAP This part replaces 3852753.
37 3852288 HOSE, Water pump to thermostat
38 0912627 CLAMP This part replaces 3852602.
39 3853390 SCREW, Pulley to pump
40 3858873 Kit This part replaces 3855281.
41 3855717 SCREW, Crankshaft pulley
42 0383307 TERMOSTAT ASSEMBLY This part replaces 3852216.
43 3852746 HOSE, Thermostat hsg. to manifold
44 0978547 BELT, Alternator
45 0910201 COLLIER, solénoïde amorçage This part replaces 3852490.
46 3853860 CLAMP, Exhaust hose, upper
47 3852649 BRACKET, Center lift
48 3857944 ELBOW, Exhaust This part replaces 3856444.
49 3850740 PLUG, 1/4 NPTF
50 3852696 HOSE, High rise to elbow
51 3853780 CLAMP, Hose
53 3850422 CLAMP, Water hose inlet
54 3857794 WATER PUMP This part replaces 3851982.
55 3853598 ELBOW, Hose to reservoir
56 3853155 SCREW, Manifold to engine
57 3853326 SCREW, Bracket to engine
58 3856769 HOSE, Pump to thermostat
60 3850397 SENSOR, Coolant temperature
61 3852468 GASKET, Manifold to engine
