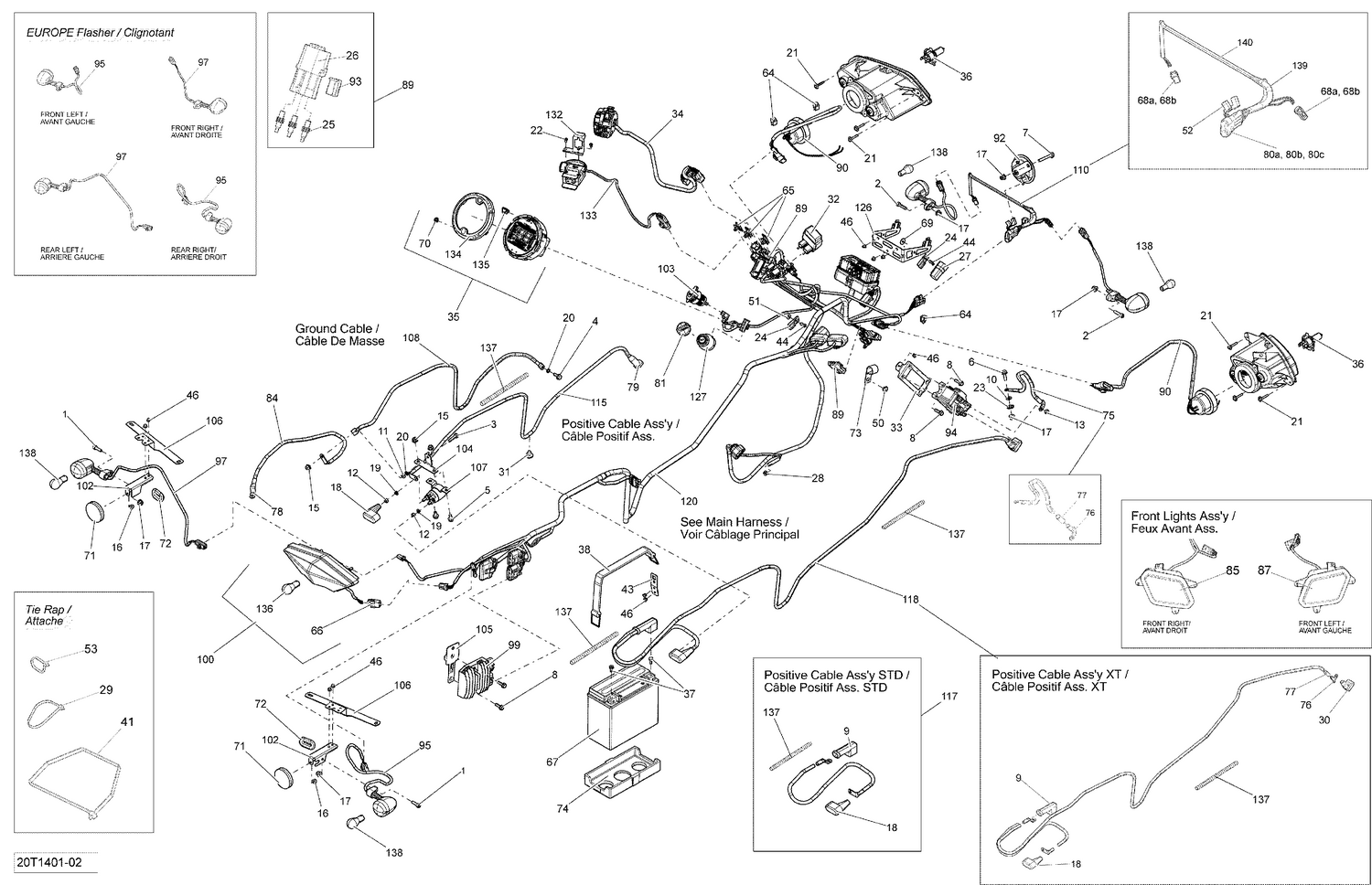

10- Electrical System
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 207162544 | Hex. Screw M6 X 25 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 5 | 207661244 | Hex. Flange Screw M6 X 12 |
| 8 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 11 | 232061414 | Hex. Nut M6 |
| 12 | 232061600 | Hex. Nut M6 |
| 13 | 232561414 | Elastic Stop Nut M6 |
| 15 | 233061414 | Hex. Flange Nut M6 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 710001817 | Protector Cap |
| 19 | 234161601 | Lock Washer Helical M6 |
| 20 | 234461608 | External Serrated Lock Washer 6 mm |
| 21 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 24 | 270000141 | Clip |
| 27 | 278002704 | Diagnostic Connector |
| 28 | 293650100 | Oetiker Clamp |
| 29 | 293750008 | Tie Wrap 368 mm |
| 31 | 293730040 | Mount Dart |
| 35 | 710003100 | Speedometer Ass'y |
| 36 | 710000871 | Bulb, 12V 35/35W |
| 37 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 38 | 293850097 | Retainer Strap |
| 43 | 293850030 | Strap Clip |
| 44 | 390402300 | Pop Rivet 3/16" |
| 46 | 390402400 | Pop Rivet 3/16" |
| 50 | 390406500 | Pop Rivet 3/16" |
| 51 | 250200081 | FLAT WASHER - Call your local BRP dealership |
| 53 | 414115200 | Tie-Rap 180 mm |
| 64 | 414227300 | Clip |
| 65 | 515175283 | Housing Support |
| 66 | 515175494 | Male Housing, 3 Circuits |
| 67 | 410301203 | Battery YUASA YTX20L |
| 69 | 517124300 | Washer |
| 70 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 73 | 705600311 | CLAMP - Call your local BRP dealership |
| 74 | 710000279 | INSULATOR PAD - Call your local BRP dealership |
| 77 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 78 | 710000518 | Open Barrel |
| 79 | 710000526 | Protector Cap |
| 84 | 710000830 | Battery/Frame Ground Cable Ass'y |
| 99 | 710001103 | Voltage Regulator |
| 103 | 710001248 | DC Outlet |
| 104 | 710001260 | SOLENOID SUPPORT - Call your local BRP dealership |
| 105 | 710001262 | RECTIFIER SUPPORT - Call your local BRP dealership |
| 107 | 710007777 | Starter Relay This part replaces 710001364. |
| 108 | 710001444 | Ground Cable |
| 115 | 710001821 | POSITIVE CABLE ASS'Y - Call your local BRP dealership |
| 126 | 710002176 | FUSE SUPPORT - Call your local BRP dealership |
| 127 | 710002324 | Ignition Switch |
| 134 | 710001416 | Trim Ring |
| 135 | 710001473 | Button |
| 136 | 520000758 | Bulb |
| 137 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
