| Ref | Part Number | Description |
|---|
| Not |
Available |

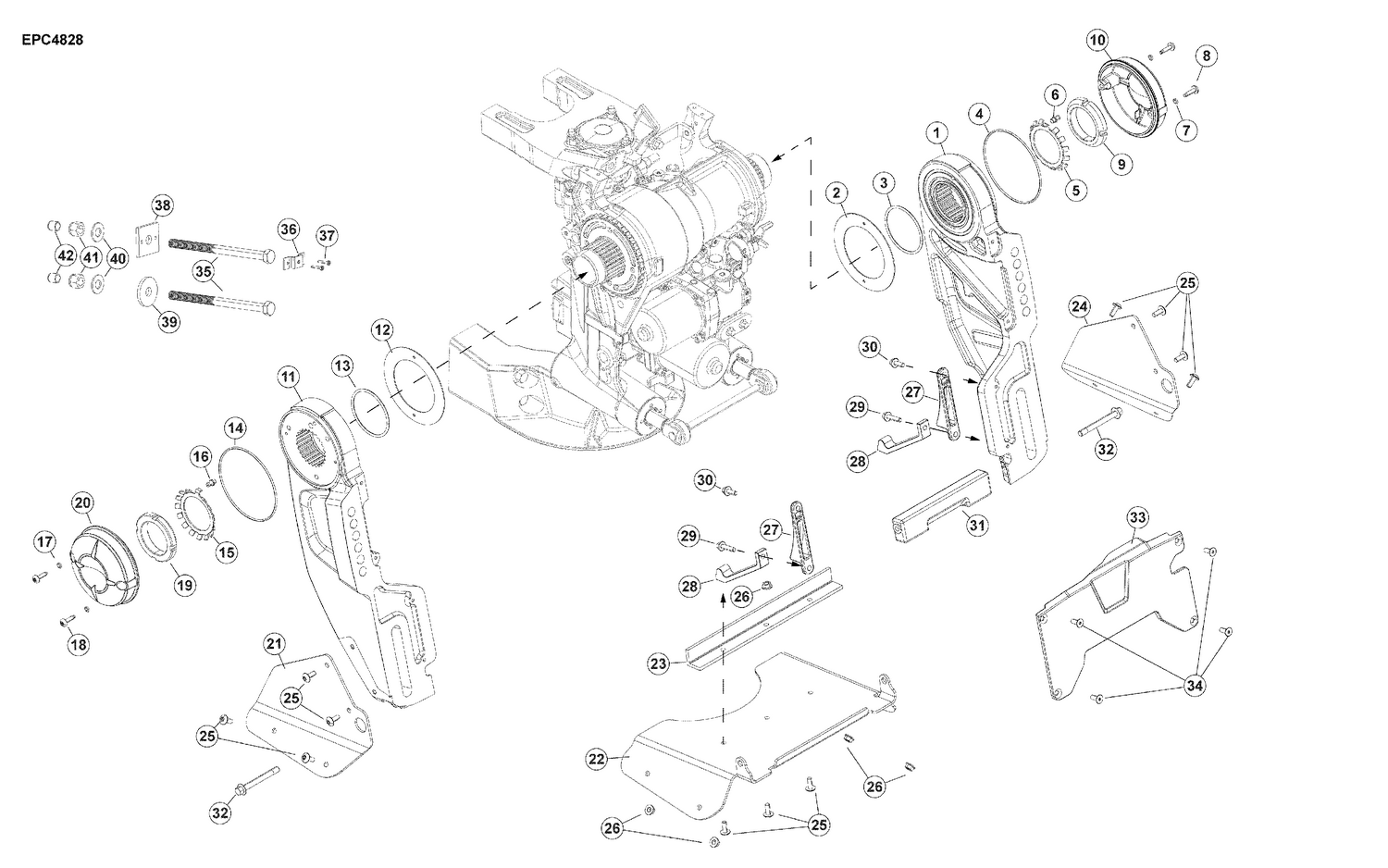

As Spare Part - TRANSOM MOUNTING HARDWARE |
| 8 |
0362483 |
SCREW This part replaces 0358259. |
| 18 |
0362483 |
SCREW This part replaces 0358259. |
| 21 |
0357702 |
Cover, Spray plate – Starboard |
| 22 |
0357590 |
SPRAY PLATE |
| 23 |
0357633 |
SUPPORT |
| 24 |
0357701 |
Cover, Spray plate – Port |
| 27 |
0356045 |
RAMP BRACKET |
| 28 |
0357628 |
BRACKET |
| 31 |
5010190 |
ANODE KIT |
| 33 |
0357363 |
PLATE |
| 34 |
0358258 |
SCREW |
| 35 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0358240. |
| 38 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 39 |
0307238 |
RONDELLE |
| 40 |
0320248 |
RONDELLE, écrou |
| 41 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
