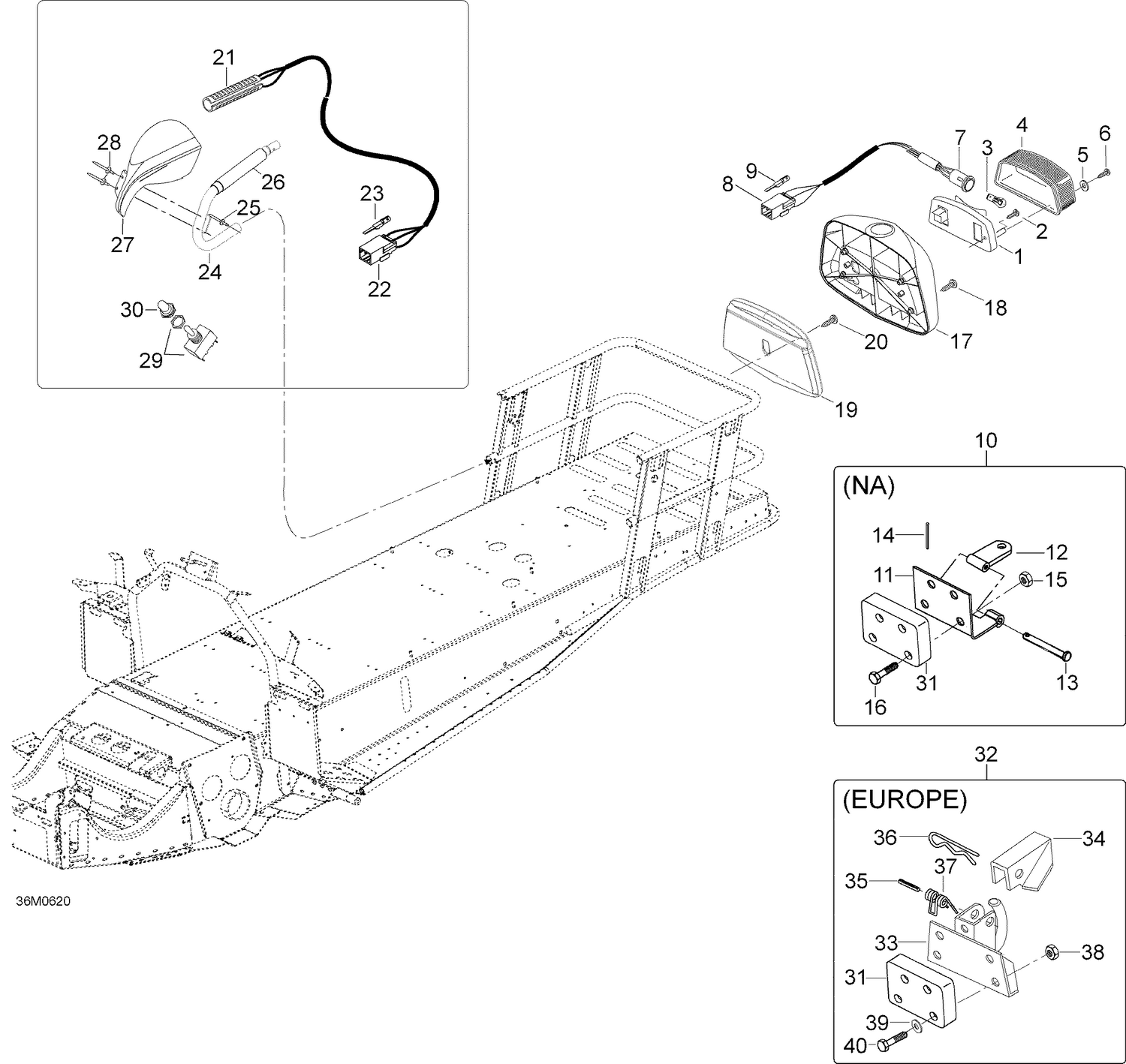

| Ref | Part Number | Description |
|---|
| 1 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 2 |
M40207 |
Screw 4.8 X 45 |
| 3 |
520000758 |
Bulb This part replaces 410504100. |
| 4 |
414513700 |
Lens |
| 5 |
414516400 |
Washer - Call your local BRP dealership |
| 6 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 7 |
515175852 |
Adapter |
| 8 |
M42606 |
Connector Housing |
| 9 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership This part replaces M42614. |
| 11 |
5344151 |
Fitting Plate This part replaces M5344151. |
| 12 |
548745 |
TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 13 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 14 |
41031 |
Cotter Pin This part replaces M41031. |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 16 |
207084544 |
Hex. Screw M8 X 45 |
| 17 |
605251392 |
MOLD TAIL LAMP - Call your local BRP dealership |
| 18 |
M40206 |
Screw 4.8 X 25 |
| 19 |
605251963 |
BASE - Call your local BRP dealership |
| 20 |
M40322 |
Screw |
| 21 |
515175573 |
Heating Grip |
| 22 |
M42271 |
Male Connector Housing |
| 23 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 24 |
605251810 |
RH GRIP - Call your local BRP dealership |
| 24 |
605251811 |
LH GRIP - Call your local BRP dealership |
| 25 |
36108 |
Rivet This part replaces M36083. |
| 26 |
415050300 |
RH Grip, 250 mm |
| 27 |
572089400 |
RH Protector |
| 27 |
572089500 |
LH Protector |
| 28 |
36037 |
Black Rivet This part replaces M36037. |
| 29 |
410107300 |
Switch (Heating Grip) |
| 30 |
515175281 |
Switch Cover |
| 31 |
605351510 |
SPACER - Call your local BRP dealership |
