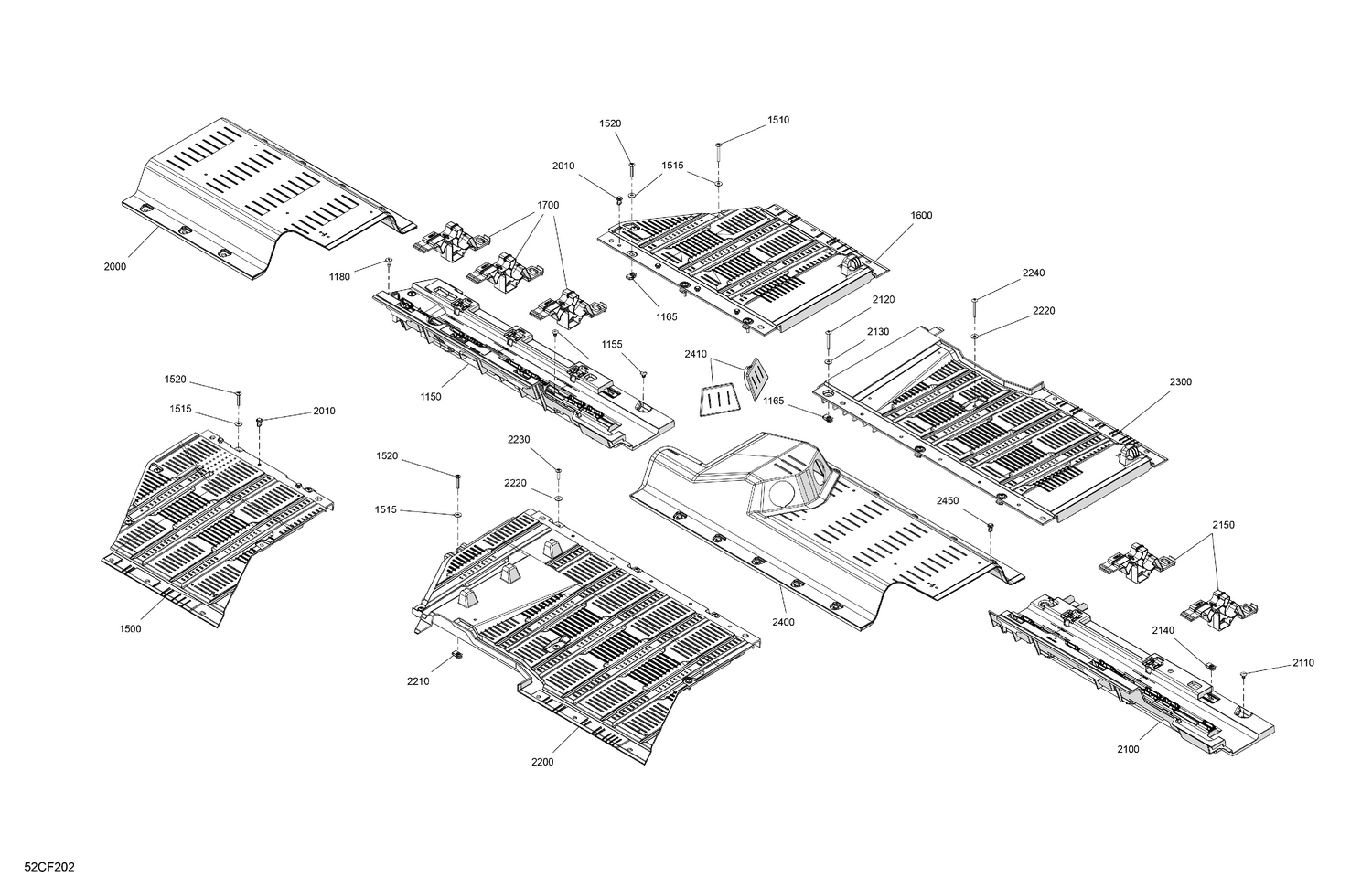

07- Cab Interior - Floor
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1150 | 707901196 | Front Console Support |
| 1155 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1165 | 250100198 | Panel Nut M6 X 1.0 |
| 1180 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 1500 | 707901194 | LH Front Floor Panel |
| 1510 | 250000868 | Torx Truss M6 X 50 |
| 1515 | 234062670 | Stainless Steel Flat Washer |
| 1520 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1600 | 707901195 | RH Front Floor Panel |
| 1700 | 707901226 | Hose Support |
| 2000 | 707901156 | Floor Panel |
| 2010 | 293150230 | Tuflok Plastic Rivet |
| 2100 | 707901217 | Lower Floor Panel |
| 2110 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 2120 | 250000868 | Torx Truss M6 X 50 |
| 2130 | 234062670 | Stainless Steel Flat Washer |
| 2140 | 250100198 | Panel Nut M6 X 1.0 |
| 2150 | 707901226 | Hose Support |
| 2200 | 707901218 | LH Rear Floor Panel |
| 2210 | 250100198 | Panel Nut M6 X 1.0 |
| 2220 | 234062670 | Stainless Steel Flat Washer |
| 2230 | 250000807 | Torx Truss Screw M6 X 25 |
| 2240 | 250000868 | Torx Truss M6 X 50 |
| 2300 | 707901219 | RH Rear Floor Panel |
| 2400 | 707901220 | Rear Central Floor Panel |
| 2410 | 707901149 | Rear Central Ventilation Cover |
