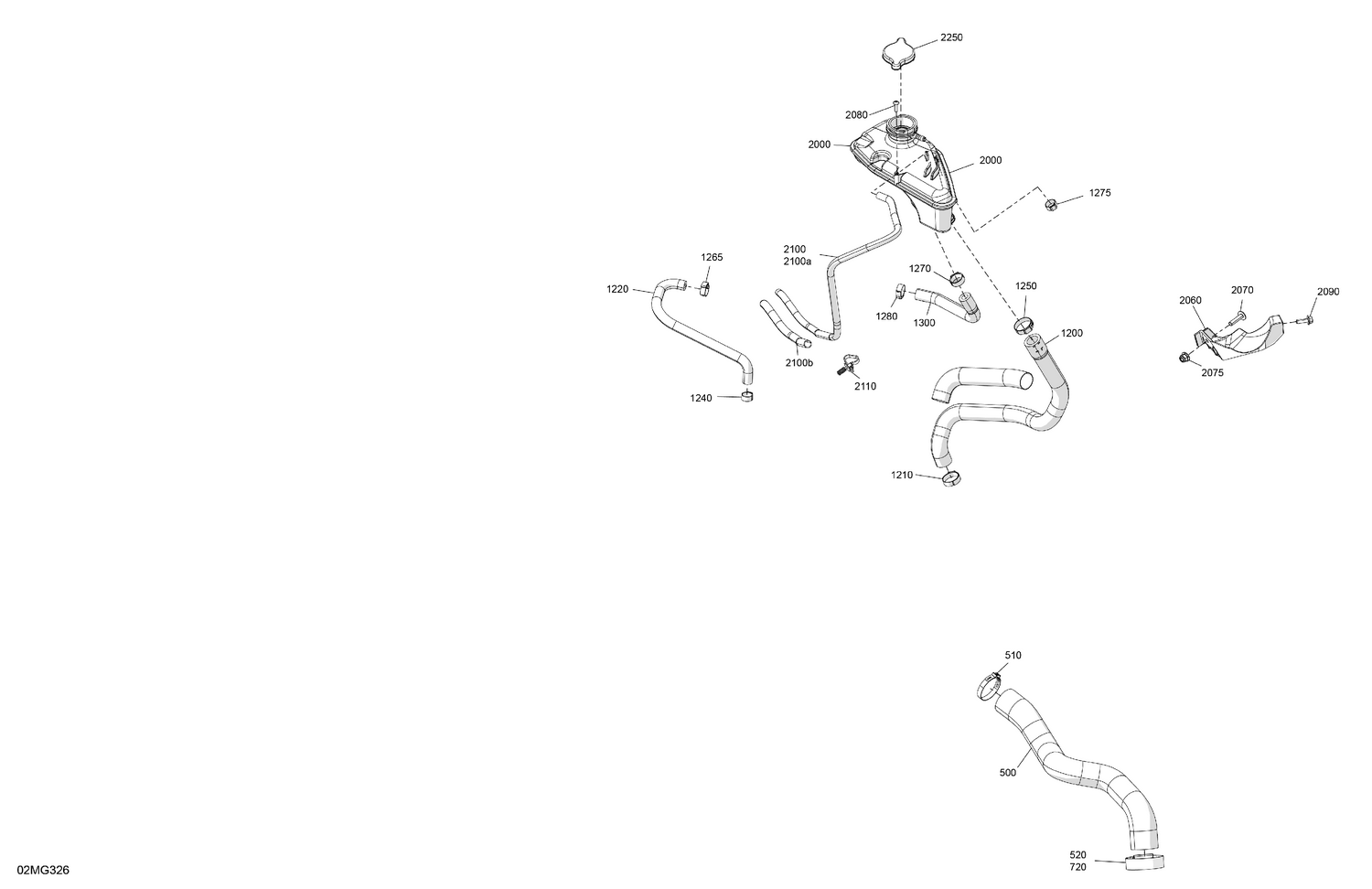

02- Engine - Cooling
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001414 | Thermostat Hose |
| 510 | 293650326 | Oetiker Clamp |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001430 | Cooling Hose |
| 1210 | 293650354 | Crimp Clamp |
| 1220 | 509001408 | Hose |
| 1240 | 293650349 | Crimp Clamp |
| 1250 | 293650357 | Crimp Clamp |
| 1265 | 293650349 | Crimp Clamp |
| 1270 | 293650361 | Crimp Clamp |
| 1275 | 293650349 | Crimp Clamp |
| 1280 | 293650047 | Crimp Clamp, 15.3-706R |
| 1300 | 509001409 | Cooling Hose |
| 2000 | 509001314 | Coolant Tank |
| 2060 | 509001318 | Coolant Tank Support |
| 2070 | 250000758 | Torx Screw M6 X 25 |
| 2075 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2080 | 250000759 | Torx Truss Pt K40 X 16 |
| 2090 | 207651646 | Hex. Flange Screw M5 X 16 |
| 2100a | 219704706 | Hose 6 MM 15000MM Long |
| 2100b | 515179201 | Heat Shield |
| 2110 | 293750099 | Anchorage Tie Wrap Christmas Tree |
