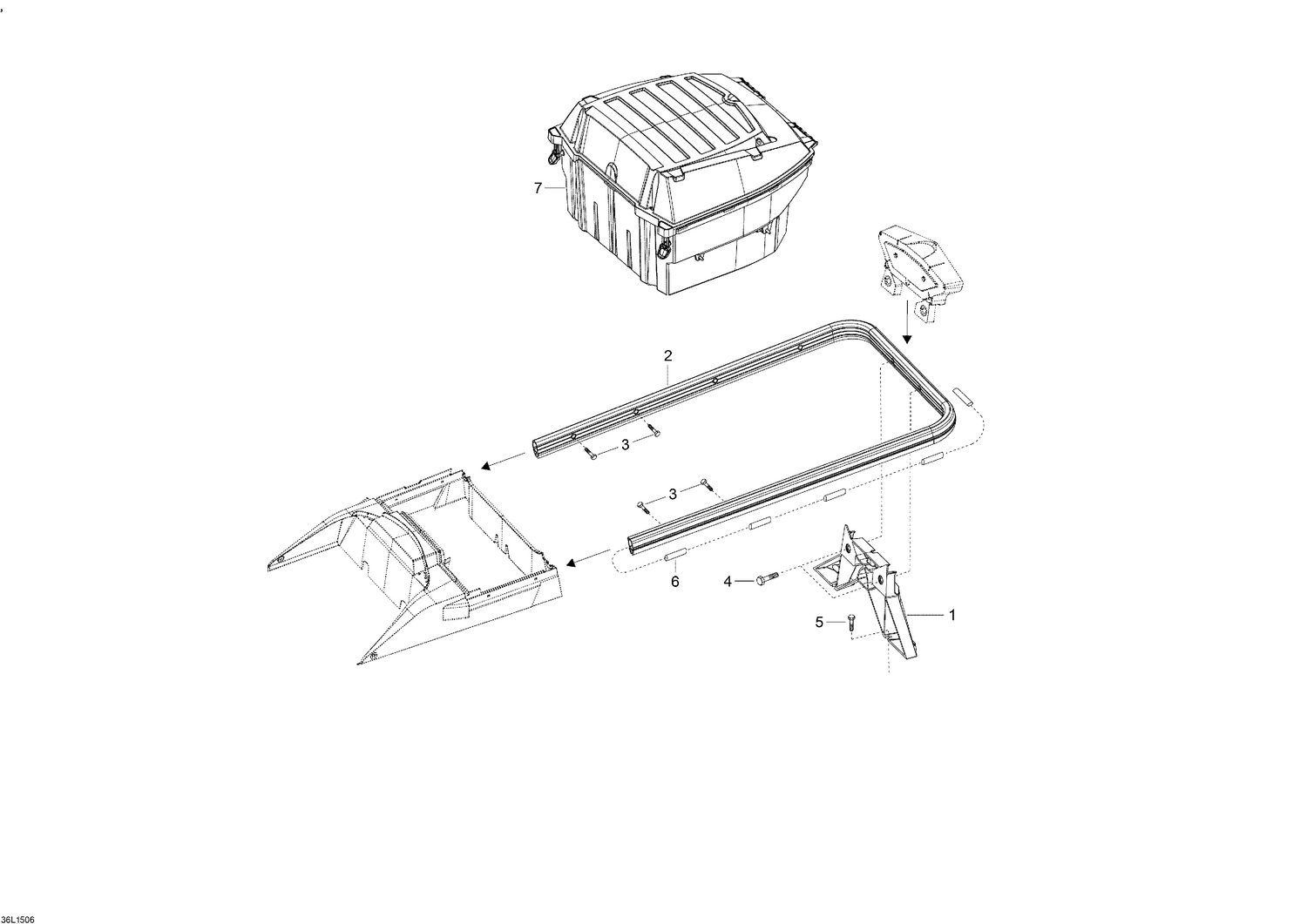

09- Cargo Rack — Parts Catalog

Ref	Part Number	Description
1	511000559	Rear Light Support
2	511000887	Black Rack Bar
3	207561644	Hex Flange Screw M6 X 16, Scotch Grip
4	207663094	Hex. Flange Screw M6 x 30
5	207662056	Hex. Flange Screw M6 x 20
6	511000657	SUPPORT HOSE - Call your local BRP dealership
