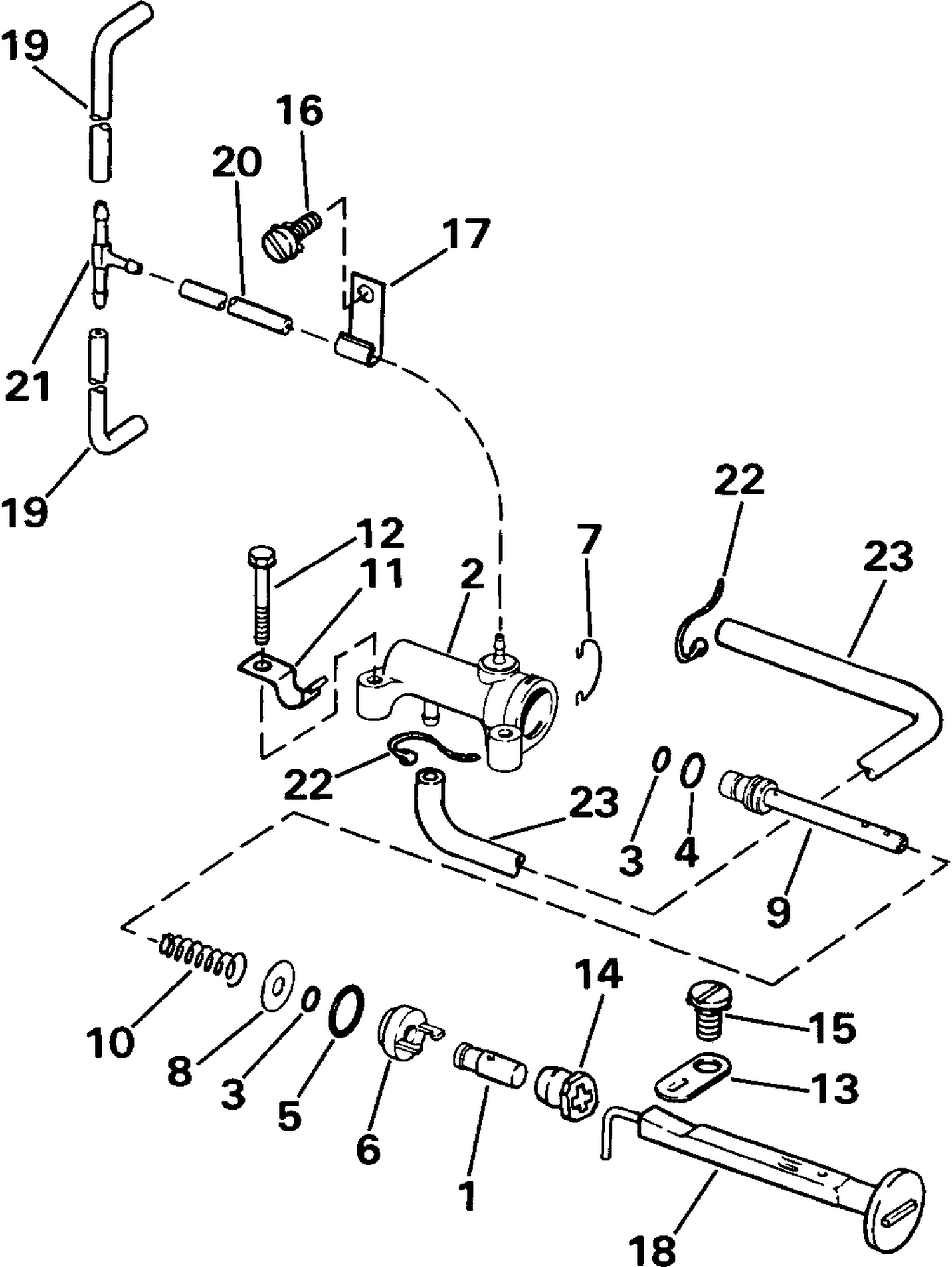

| Ref | Part Number | Description |
|---|
| 1 |
0326422 |
CONNECTOR, Primer pump |
| 2 |
0398793 |
PRIMER PUMP ASSY This part replaces 0393936. |
| 5 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 11 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 12 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 13 |
0327043 |
DETENT, Primer knob |
| 14 |
0320731 |
BUSHING, Choke knob |
| 15 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 16 |
0328696 |
SCREEN, Ground lead |
| 18 |
0395149 |
KNOB, Primer pump |
| 19 |
HOSE, |
Tee to carb. 114mm (4-1/2") |
| 20 |
HOSE, |
Primer pump to tee 210mm (8-1/4") |
| 21 |
0325569 |
T, amorçage |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
HOSE, |
Primer pump to carb. 330mm (13") |
