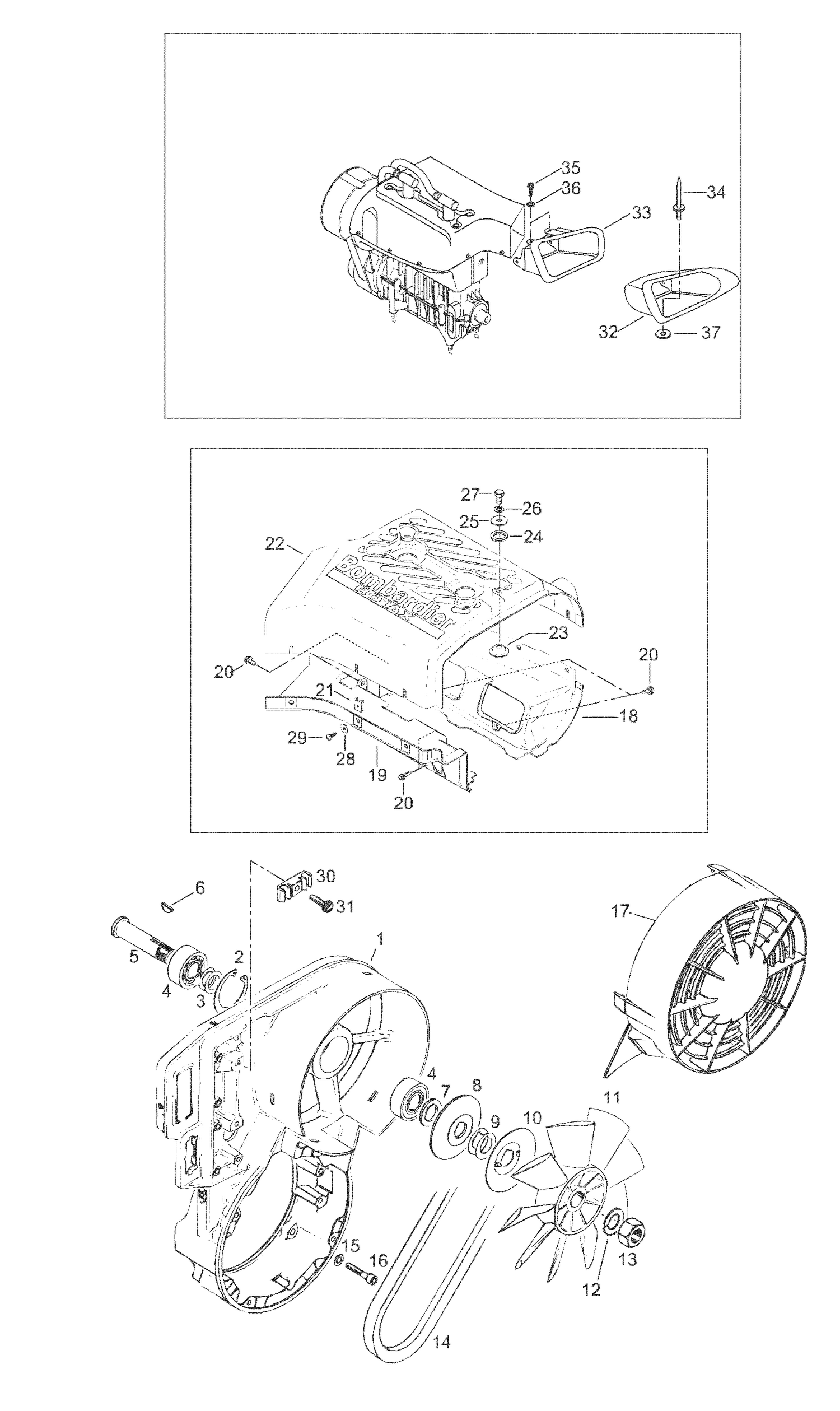

| Ref | Part Number | Description |
|---|
| 1 |
420912230 |
Fan Housing This part replaces 420912203. |
| 2 |
420945880 |
Retaining ring |
| 3 |
420244585 |
Shim |
| 4 |
420832161 |
Ball Bearing This part replaces 405406100. |
| 5 |
420937941 |
Fan Axle This part replaces 420937940. |
| 6 |
420246015 |
Woodruff Key |
| 7 |
420827650 |
Distance sleeve |
| 8 |
420980496 |
Belt disk |
| 9 |
420827080 |
Adj.washer 0.5 |
| 9 |
420827082 |
Adj.washer 0.2 |
| 10 |
420980523 |
Protection washer |
| 11 |
420866292 |
FAN - Call your local BRP dealership |
| 12 |
420945756 |
Spring washer |
| 13 |
420942289 |
Nut M16 This part replaces 420942285. |
| 14 |
414630800 |
V-belt |
| 15 |
20052 |
Spring washer |
| 16 |
205063044 |
Allen screw M6x30 This part replaces 222963065. |
| 17 |
420975695 |
FAN COVER - Call your local BRP dealership |
| 18 |
420810764 |
CYLINDER COWL - Call your local BRP dealership |
| 19 |
420810792 |
CYLINDER COWL - Call your local BRP dealership |
| 20 |
420240580 |
TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
| 21 |
417300005 |
SPRING NUT U #10-24 - Call your local BRP dealership |
| 22 |
420810776 |
CYLINDER COWL - Call your local BRP dealership |
| 23 |
420827817 |
Cup washer |
| 24 |
420960865 |
Rubber washer |
| 25 |
420227936 |
Washer This part replaces 420227935. |
| 26 |
20014 |
Lock washer |
| 27 |
40035 |
Screw M8x16 |
| 28 |
420926180 |
FLAT WASHER - Call your local BRP dealership |
| 29 |
417300006 |
Tapping Screw M4.8 X 16 This part replaces 420841495. |
| 30 |
420860940 |
CLAMP - Call your local BRP dealership |
| 31 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 32 |
572083900 |
Outlet duct |
| 33 |
5245799 |
Outlet Duct |
| 34 |
36036 |
Rivet |
| 35 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 36 |
732900047 |
SERRATED LOCK WASHER M5 - Call your local BRP dealership |
