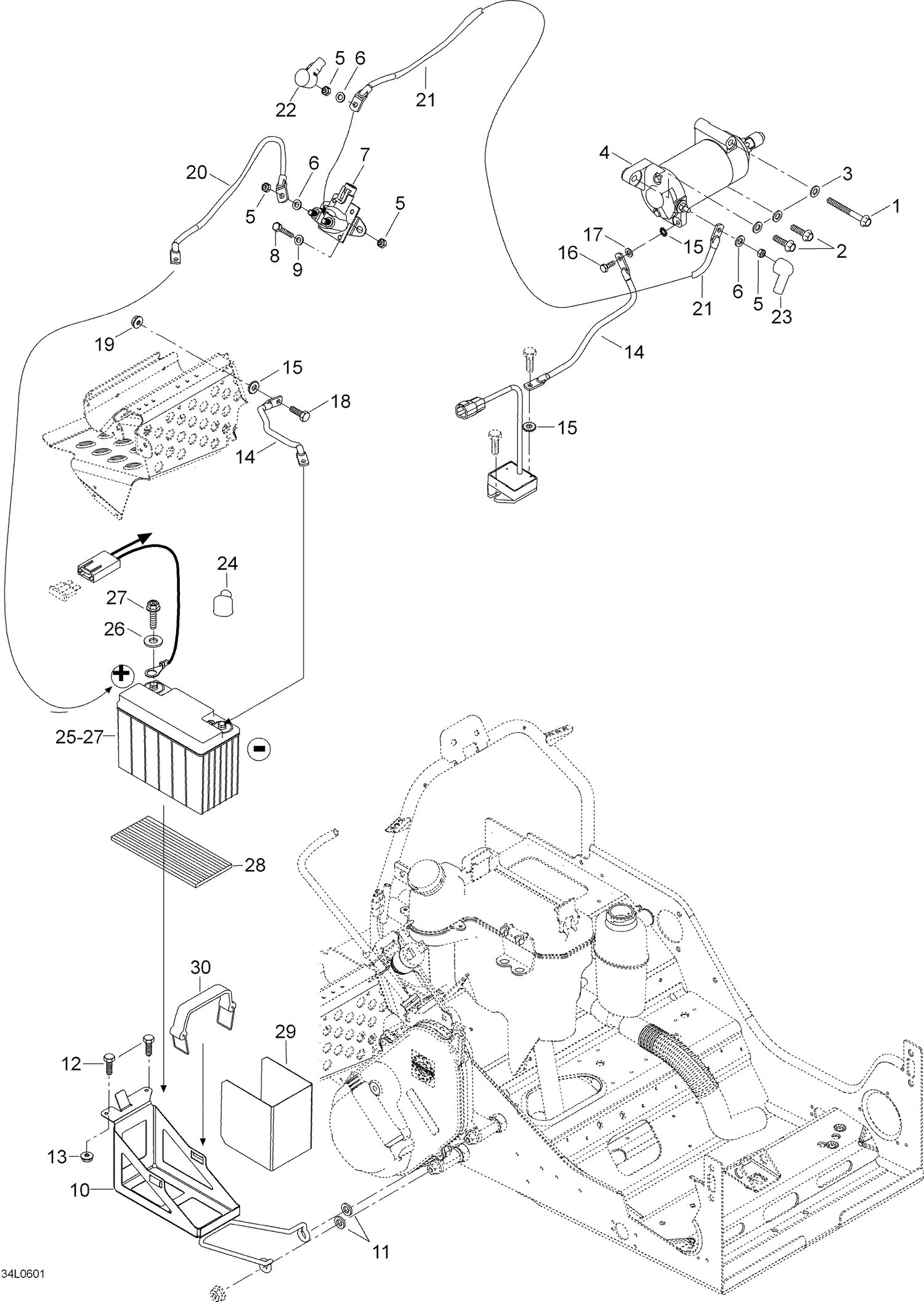

| Ref | Part Number | Description |
|---|
| 1 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 2 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 3 |
250200008 |
Flat Washer With Teflon 8 mm |
| 4 |
515176133 |
Electric start This part replaces 515176003. |
| 5 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 6 |
20003 |
Washer A6,4 |
| 7 |
515176011 |
Relay |
| 8 |
40030 |
Hex. screw M6 x 20 |
| 9 |
20052 |
Lock washer A6 |
| 10 |
515175848 |
Bracket |
| 11 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 12 |
40247 |
Screw M5 x 16 |
| 13 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 14 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 15 |
20017 |
Serrated lock washer M6 |
| 16 |
207361644 |
Hex. screw M6 x 16 |
| 17 |
20003 |
Washer A6,4 |
| 18 |
40031 |
Hex. screw M6 x 25 |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 23 |
570151000 |
Cap protection |
| 24 |
570064200 |
PROTECTION CAP - Call your local BRP dealership |
| 26 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 27 |
207161644 |
Screw M6 x 16 |
| 28 |
5347314 |
Rubber |
| 29 |
515175643 |
DEFLECTOR - Call your local BRP dealership |
