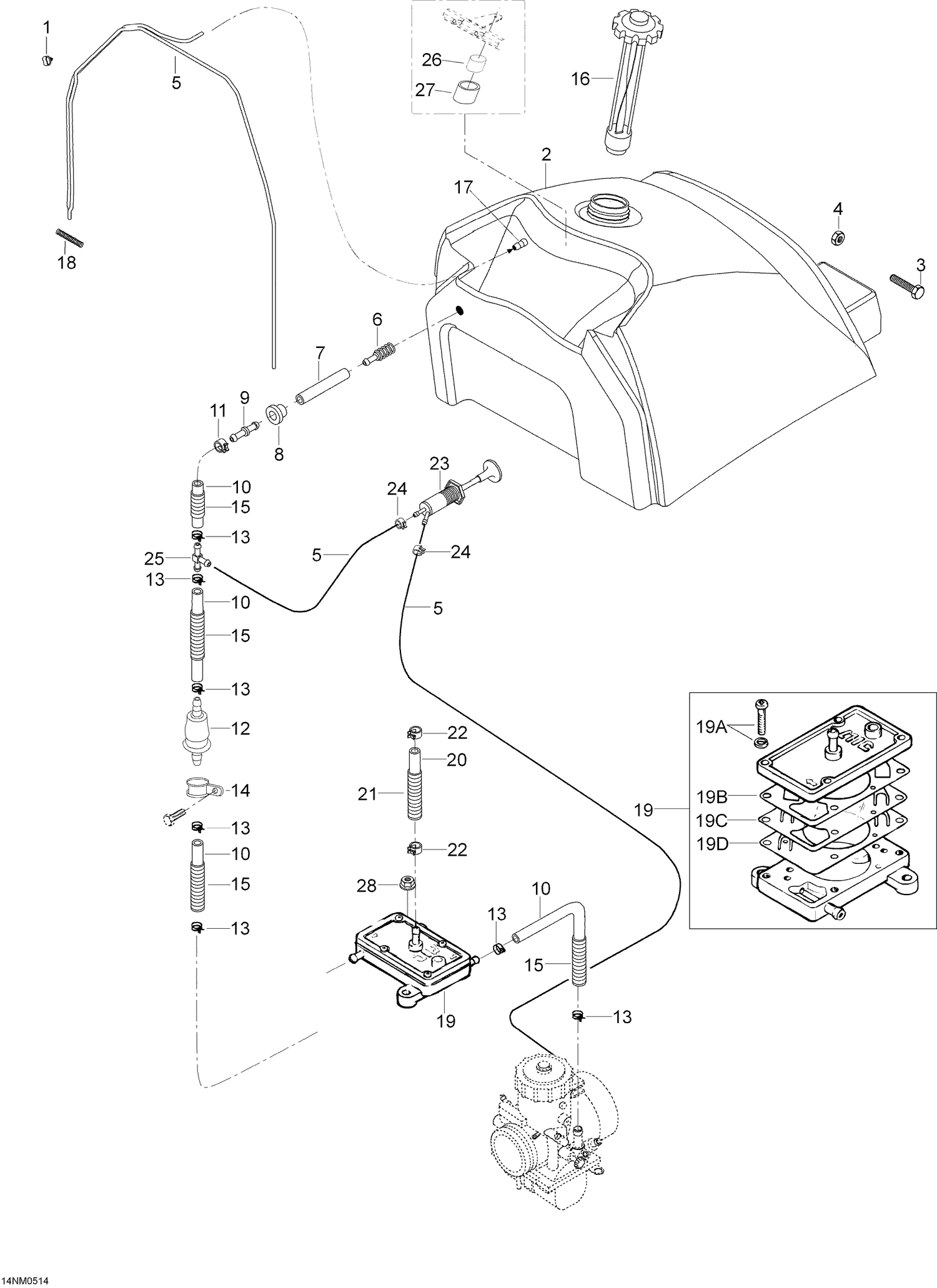

| Ref | Part Number | Description |
|---|
| 1 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 2 |
5145048 |
Polttoainetankki, 37L |
| 3 |
40826 |
Hex. screw M6 x 90 |
| 4 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 5 |
39035 |
Ilmaletku 5/3, 1800 mm |
| 6 |
414865700 |
Filter för bränsletank |
| 7 |
39030 |
HOSE - Call your local BRP dealership |
| 8 |
570045500 |
Läpivientikumi |
| 9 |
414518500 |
Nippel till bränsleslang |
| 10 |
39004 |
Polttoaineletku 8/5 |
| 11 |
414554800 |
Jousikiristin |
| 12 |
605352516 |
Fuel filter This part replaces 414363600. |
| 13 |
27086 |
CLAMP - Call your local BRP dealership |
| 14 |
27039 |
Suojaspiraali |
| 15 |
28012 |
Skydd spiral slang |
| 16 |
605349994 |
Mittari-korkki |
| 17 |
19051 |
Nipple for fuelline |
| 18 |
25006 |
Fjäder |
| 19 |
403800800 |
FUEL PUMP DF44-226A - Call your local BRP dealership |
| 19A |
420841460 |
Ruuvit + aluslevyt |
| 19B |
420831935 |
Tiiviste |
| 19C |
420861137 |
Pump diaphgram |
| 19D |
420861135 |
Pumpcase gasket |
| 20 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 21 |
28015 |
Suojaspiraali PP-MOD 13 (D=15.8) |
| 22 |
414420700 |
Universal Spring Clamp |
| 23 |
415060500 |
Primer-pumppu |
| 24 |
543230 |
Kiristin, primerletku |
| 25 |
21067 |
Plastic T-fitting |
| 26 |
5446811 |
Support sleeve |
| 27 |
605450311 |
Gummi dämpare |
