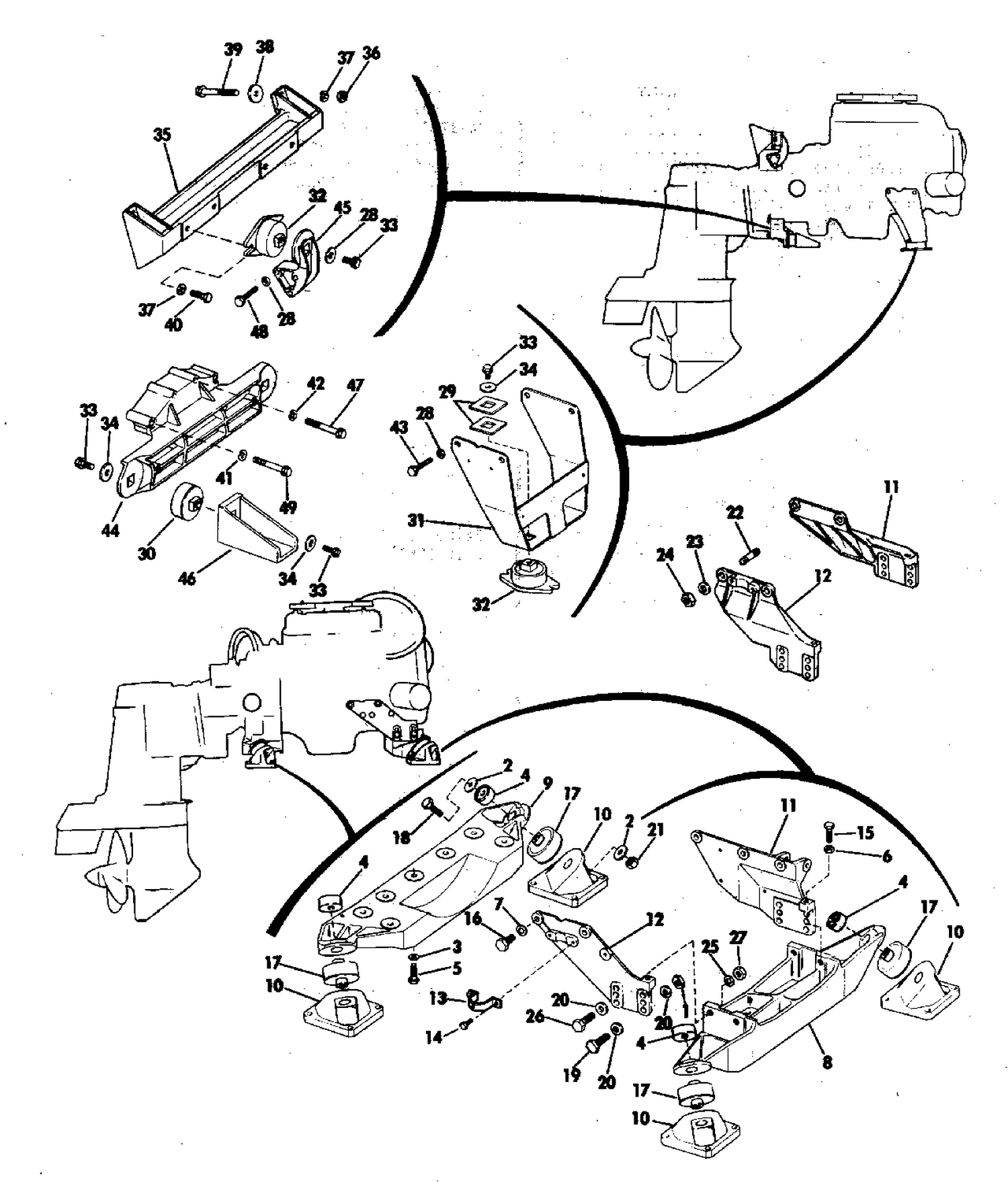

| Ref | Part Number | Description |
|---|
| 1 |
0313650 |
NUT |
| 2 |
0313641 |
WASHER, Rubber mount |
| 3 |
0120177 |
L'WASHER, Alternator to brkt |
| 4 |
0382511 |
RUBBER MOUNT, Top |
| 6 |
0309602 |
LOCK NUT, Steering handle |
| 7 |
0309336 |
L'WASHER, Alternator to bracket |
| 8 |
0313658 |
MOUNT SUPPORT, Lateral, front |
| 9 |
0313657 |
MOUNT SUPPORT, Lateral, rear |
| 10 |
0313649 |
BRACKET |
| 11 |
0313659 |
BRACKET, Port |
| 11 |
0313661 |
BRACKET, Port |
| 12 |
0313660 |
BRACKET, Starboard |
| 12 |
0313662 |
BRACKET, Starboard |
| 13 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 14 |
0303311 |
SCR,Clamp,eng cable |
| 15 |
0312178 |
SCREW |
| 16 |
0310896 |
SCREW |
| 17 |
0382510 |
RUBBER MOUNT ASSEMBLY |
| 18 |
0313639 |
SCREW, Rubber mount |
| 19 |
0313640 |
SCREW, Bracket to mount support |
| 20 |
0312177 |
WASHER, Bracket to mount support |
| 21 |
0551021 |
NUT, Mount screw |
| 22 |
0312974 |
STUD, Adapter housing |
| 23 |
0312972 |
WASHER, Alternator brkt |
| 24 |
0312973 |
NUT, Stud |
| 25 |
0306454 |
LOCKWASHER, Bracket to mount, starboard, rear |
| 26 |
0312176 |
SCREW, Actuator & valve |
| 27 |
0363254 |
NUT, Stern bracket screw This part replaces 0303912. |
| 28 |
0309336 |
L'WASHER, Alternator to bracket |
| 28 |
0310855 |
LOCKWASHER |
| 29 |
0310897 |
SPACER |
| 30 |
0381302 |
MOUNT, Rubber, upper side |
| 31 |
0379951 |
BRACKET & BRACE ASSY |
| 31 |
0381670 |
BRACKET & BRACE ASSY |
| 32 |
0380081 |
RUBBER MOUNT ASSEMBLY |
| 34 |
0312289 |
WASHER |
| 35 |
0310974 |
BRACKET |
| 37 |
0121025 |
CLIP,Contact retainer |
| 38 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 39 |
0308683 |
SCREW |
| 40 |
0309484 |
SCREW |
| 42 |
0306353 |
LKWASH,Brace to pump |
| 43 |
0306539 |
BOLT, Distributor |
| 43 |
0306838 |
BOLT, Bracket to head |
| 44 |
3310965 |
BRACKET, Lower |
| 45 |
0308477 |
BRACKET, Upper |
| 46 |
0308478 |
BRACKET |
| 47 |
0308689 |
SCREW |
