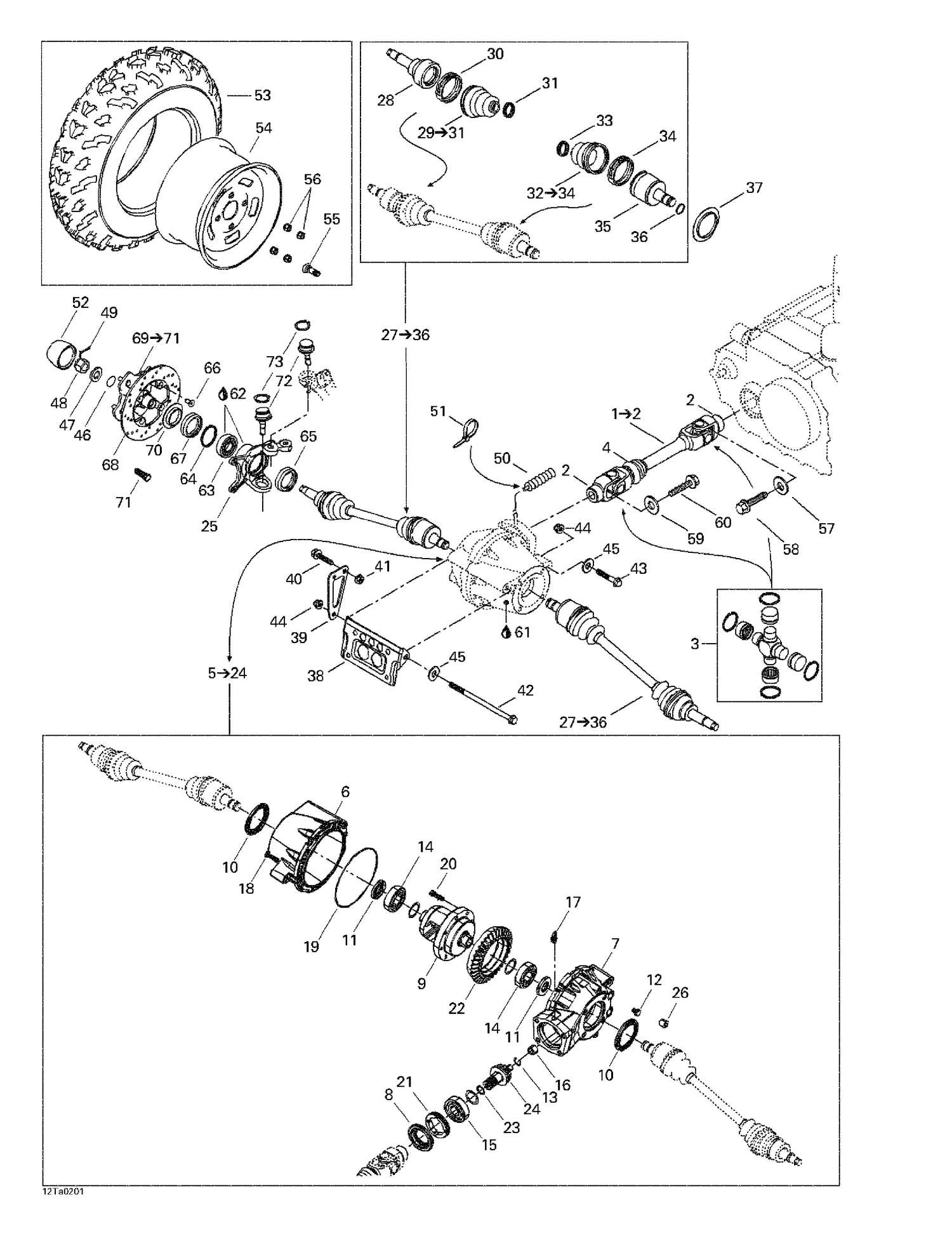

| Ref | Part Number | Description |
|---|
| 2 |
705400036 |
Wear Ring |
| 3 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500002. |
| 4 |
705400051 |
PROTECTOR - Call your local BRP dealership |
| 6 |
705400099 |
Front Cover |
| 7 |
705500177 |
Differential Carrier |
| 8 |
705401481 |
Oil Seal This part replaces 705400027. |
| 9 |
705400404 |
DIFFERENTIAL - Call your local BRP dealership This part replaces 705400004. |
| 10 |
705400019 |
OIL SEAL - Call your local BRP dealership |
| 11 |
705401618 |
Gasket This part replaces 705500255. |
| 12 |
705500894 |
Drain Plug This part replaces 705500245. |
| 13 |
705500269 |
RETAINING RING - Call your local BRP dealership |
| 14 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 15 |
705500260 |
Ball Bearing |
| 16 |
705500261 |
Needle Bearing |
| 17 |
705500893 |
VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 18 |
705401601 |
Screw This part replaces 705500264. |
| 19 |
705500265 |
Seal |
| 20 |
705400101 |
RING GEAR SCREW - Call your local BRP dealership |
| 21 |
705401603 |
Nut This part replaces 705500266. |
| 22 |
705400103 |
Crown Gear |
| 23 |
705500267 |
O-Ring |
| 24 |
705500268 |
GEAR, 10 TEETH - Call your local BRP dealership |
| 25 |
709400095 |
RH Knuckle |
| 26 |
705500228 |
Fill level plug |
| 28 |
705400093 |
CV JOINT - Call your local BRP dealership |
| 30 |
705400180 |
Clamp |
| 31 |
705400064 |
CLAMP - Call your local BRP dealership |
| 33 |
705400064 |
CLAMP - Call your local BRP dealership |
| 34 |
705400181 |
Clamp |
| 35 |
705400128 |
RH Plunging Joint |
| 36 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 37 |
705400016 |
Wear Ring |
| 38 |
705400068 |
Bracket (Differential) |
| 39 |
705400069 |
RH Diffential Front Bracket |
| 40 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 41 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 44 |
233101414 |
Hex. Flange Nut M10 |
| 45 |
250200003 |
Flat Washer |
| 46 |
705500271 |
O-RING - Call your local BRP dealership |
| 47 |
250200019 |
WASHER - Call your local BRP dealership |
| 48 |
232291413 |
Hex. Flange Castellated Nut M18 |
| 49 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 50 |
705400552 |
Rubber Bellow This part replaces 705400066. |
| 51 |
293750001 |
Tie Wrap 94 mm |
| 52 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 53 |
705400071 |
Front Tire |
| 54 |
705400072 |
Front Rim |
| 55 |
705400193 |
Rim Valve With Cap This part replaces 705400053. |
| 56 |
705400013 |
HEX. NUT - Call your local BRP dealership |
| 57 |
211200041 |
Washer |
| 59 |
250200014 |
Flat Washer M10 |
| 62 |
293550010 |
Synthetic Grease, 400 G |
| 63 |
293350150 |
Ball Bearing This part replaces 705400088. |
| 64 |
293370019 |
Circlip |
| 65 |
293250090 |
Oil Seal |
| 66 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 67 |
705500099 |
OIL SEAL - Call your local BRP dealership |
| 68 |
705600168 |
Brake disc 205 mm |
| 70 |
705500100 |
WEAR RING - Call your local BRP dealership |
| 71 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 72 |
706200653 |
Ball Joint This part replaces 706200091. |
| 705400124 |
Joint |
Homocinétique GA - Appelez votre concessionnaire BRP local 705400124 |
| 705400124 |
LH |
CV JOINT - Call your local BRP dealership 705400124 |
| 705400129 |
Joint |
Plongeant GA 705400129 |
| 705400129 |
LH |
Plunging Joint 705400129 |
| 709400097 |
LH |
KNUCKLE - Call your local BRP dealership 709400097 |
| 709400097 |
Porte-Fusée |
GA - Appelez votre concessionnaire BRP local 709400097 |
