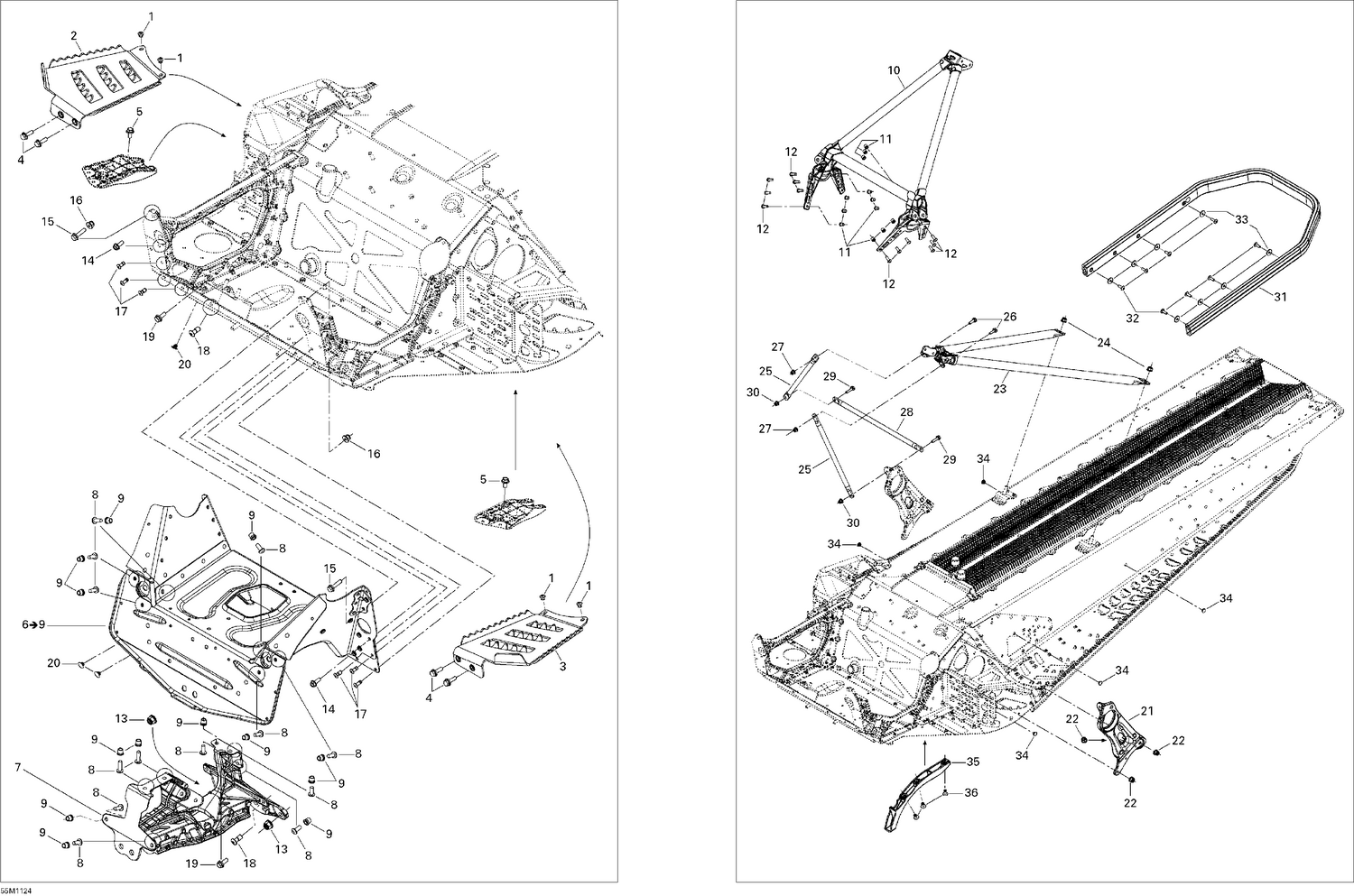

09- Frame and Components
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 390402200 | Pop Rivet 3/16" |
| 2 | 518326193 | RH FOOTREST - Call your local BRP dealership |
| 3 | 518326194 | LH FOOTREST - Call your local BRP dealership |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 7 | 518327487 | Front Suspension Support This part replaces 518325925. |
| 8 | 207662044 | Hex. Flange Screw M6 X 20 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 518326970 | Front Member This part replaces 518326555. |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 207662044 | Hex. Flange Screw M6 X 20 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 15 | 207662544 | Hex. Flange Screw M6 X 25 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 293150191 | Monobolt Rivet, 4.8 mm |
| 18 | 293150182 | Monobolt Rivet 6.4 |
| 19 | 207661644 | Hex. Flange Screw M6 X 16 |
| 20 | 293730042 | Full Moon Dart 5 mm |
| 21 | 518327460 | Driven Pulley Support This part replaces 518326192. |
| 22 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | 518326559 | Rear Member |
| 24 | 233281414 | Hex. Flange Elastic Nut M8 |
| 25 | 518325114 | Upper Lateral Column Support |
| 26 | 207662044 | Hex. Flange Screw M6 X 20 |
| 27 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 28 | 518325115 | Center Column Support |
| 29 | 207662544 | Hex. Flange Screw M6 X 25 |
| 30 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 31 | 518325470 | REAR BUMPER - Call your local BRP dealership |
| 32 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 33 | 224061201 | Flat Washer |
| 34 | 293730041 | Full Moon Dart 8 mm |
| 35 | 518326973 | Front Tunnel Protector |
