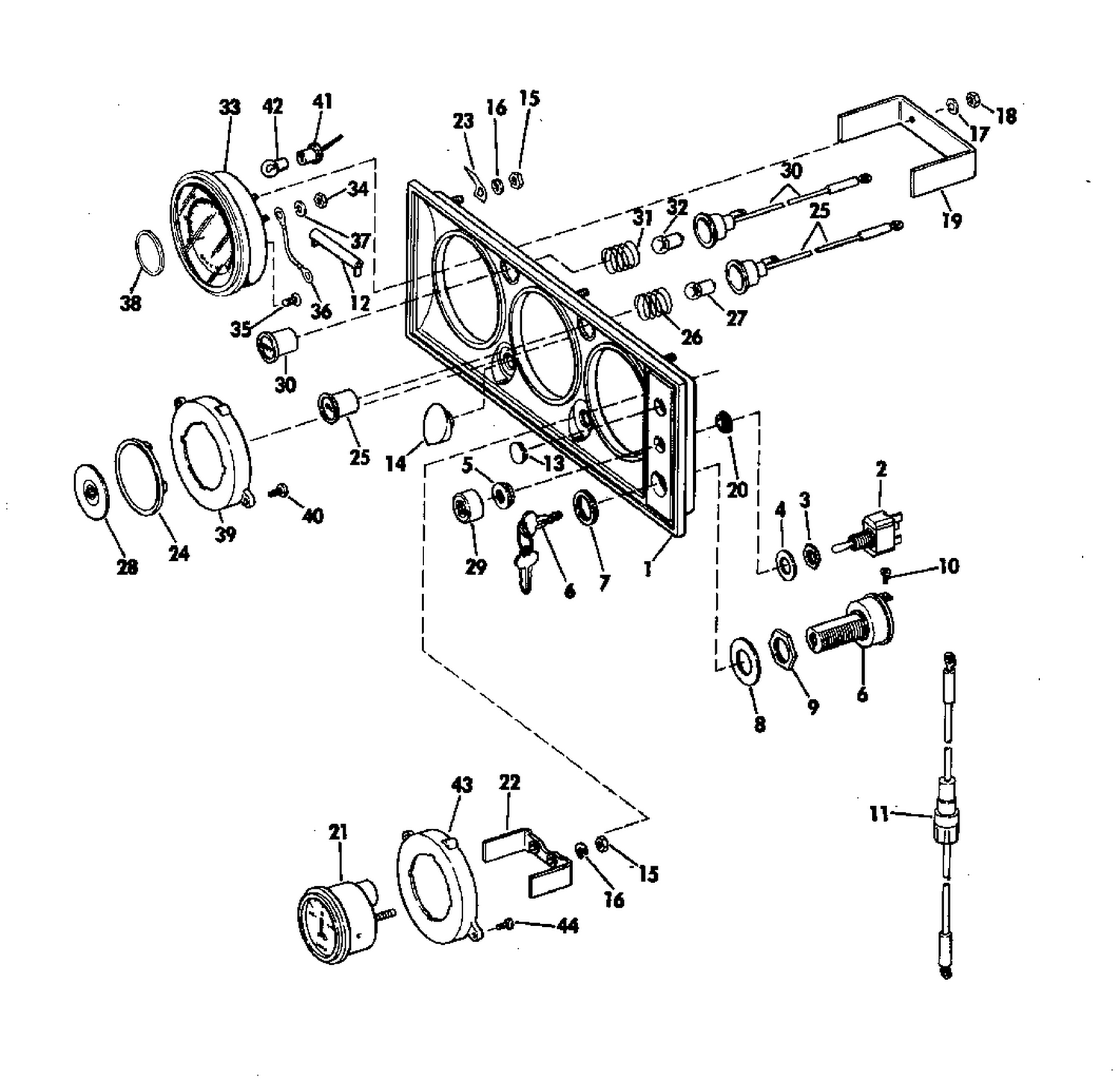

INSTRUMENT PANEL ASS'Y 90,120,155, 215 & 235 HP
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0172048 | PANEL & STUD ASSEMBLY |
| 4 | 0900696 | WASHER |
| 6 | 0386545 | IGNITION SWITCH & KEY ASSY This part replaces 0378238. |
| 11 | 0378334 | FUSE HOLDER & LEAD ASSEMBLY |
| 13 | 0309024 | PLUG |
| 14 | 0121810 | PLUG, Switch hole |
| 17 | 0304642 | LOCKWASHER |
| 19 | 0121350 | BRACKET |
| 20 | 0121996 | BUSHING |
| 21 | 0380444 | AMMETER |
| 23 | 0121811 | CLAMP, Mounting |
| 24 | 0121808 | PLUG, Small |
| 25 | 0379852 | INDICATING LIGHT ASSY., Oil |
| 28 | 0121812 | EMBLEM |
| 30 | 0379853 | INDICATING LIGHT ASSY., Temperature |
| 33 | 0172051 | TACHOMETER ASSEMBLY |
| 35 | 0121354 | MOUNTING SCREW, Instrument |
| 36 | 0172140 | GROUND WIRE ASSEMBLY |
| 37 | 0304642 | LOCKWASHER |
| 38 | 0121720 | BITTON,Trim |
| 39 | 0121807 | PLUG, Large |
| 40 | 0121354 | MOUNTING SCREW, Instrument |
| 41 | 0171961 | LIGHT SOCKET ASSEMBLY |
