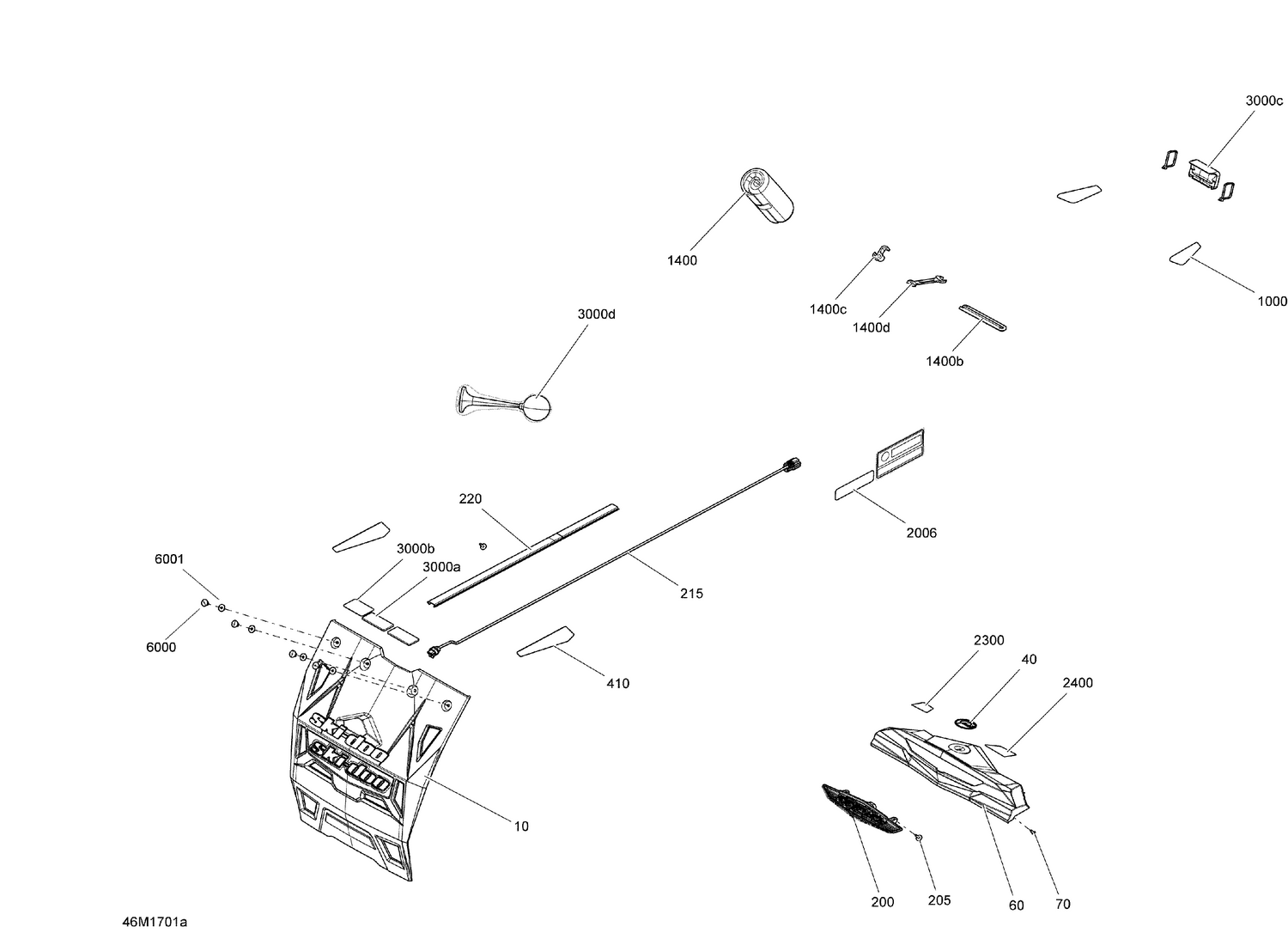

09- Utilities - All Models
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 516005175 | Warning Decal, Track |
| 40 | 516008738 | BRP Logo 48mm This part replaces 516006887. |
| 60 | 511000810 | Deep Black, Light Fairing |
| 70 | 241141340 | Hex. Screw K40 X 13 |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 215 | 515178062 | Wiring Harness |
| 225 | 520000829 | Radiator Trim |
| 1000 | 520001236 | Yellow, LH Front Reflector |
| 1000 | 520001237 | Yellow, RH Front Reflector |
| 1400c | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 2300 | 516006914 | Security Label, XS |
| 2400 | 516005058 | Warning Decal, Safety |
| 6000 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
