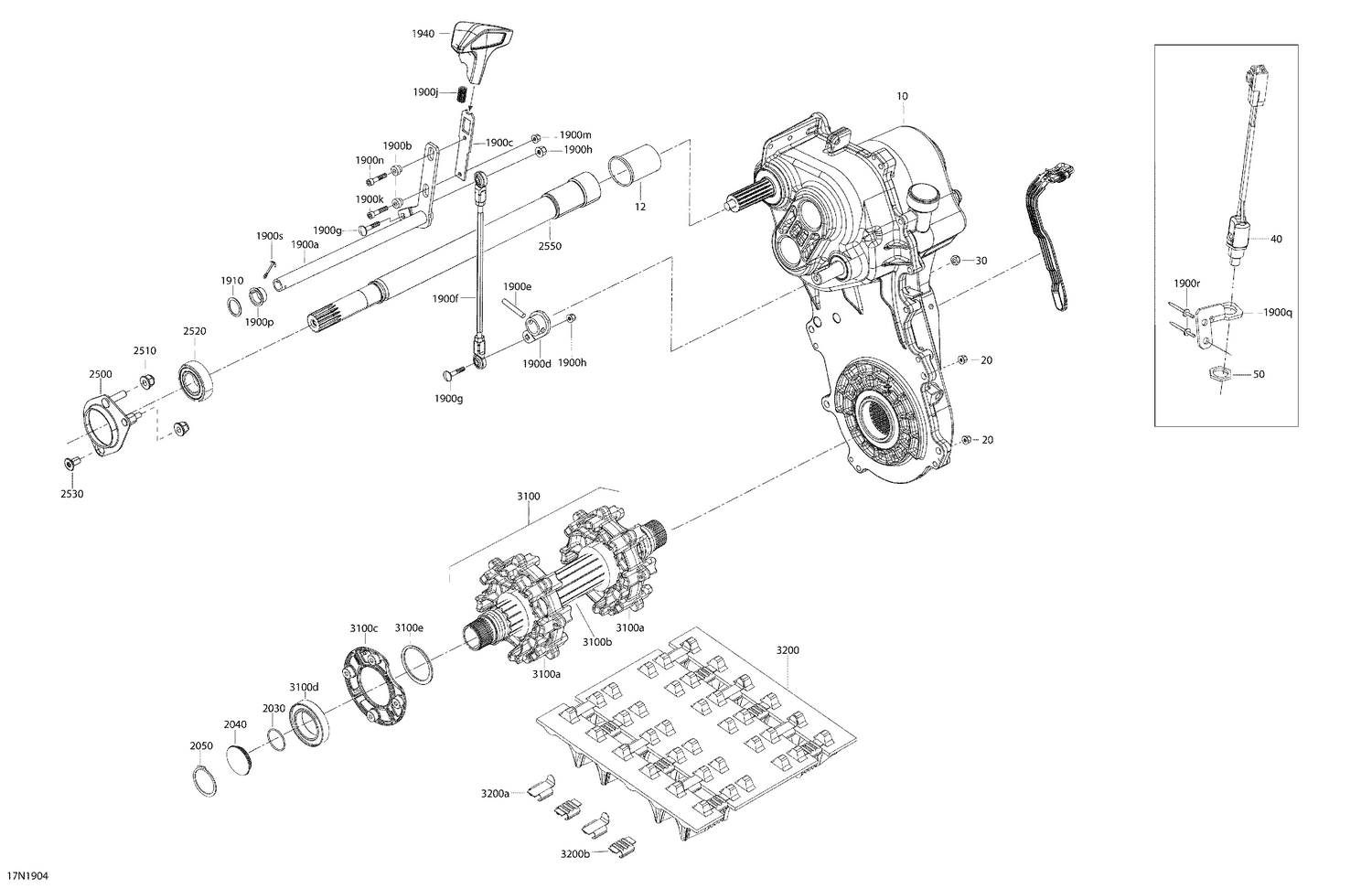

05- Drive Train - 600HO E-TEC
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 504152896 | Rotation Sensor |
| 12 | 504153568 | Protective Rubber |
| 20 | 233281414 | Hex. Flange Elastic Nut M8 |
| 30 | 232581414 | Hex. Elastic Stop Nut M8 |
| 40 | 515176472 | Switch Ass'y |
| 50 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 1900a | 504153288 | Lever Shifter |
| 1900b | 504152787 | Sleeve |
| 1900c | 504153287 | Shifter Arm |
| 1900d | 504153280 | Welded Lever |
| 1900e | 41012 | Pin |
| 1900f | 504153258 | Shifter Rod |
| 1900g | 250000677 | Carriage Bolt M6 X 20 |
| 1900h | 232561414 | Elastic Stop Nut M6 |
| 1900j | 504152882 | Spring |
| 1900k | 205052544 | Socket Screw M5 X 25 |
| 1900m | 233251434 | Flange Elastic Nut M5 |
| 1900n | 250000676 | Forming Screw M5 x 16 |
| 1900p | 504152890 | Bushing |
| 1900q | 504152902 | Sensor Bracket |
| 1900r | 293150163 | Rivet Hucklok |
| 1900s | 250400035 | Cotter Pin |
| 1910 | 503189273 | Washer |
| 1940 | 504152837 | Handle |
| 2030 | 293300122 | O-Ring |
| 2040 | 504152619 | Magnetic Cap |
| 2050 | 504152572 | Circlip |
| 2500 | 504153187 | Bearing Housing |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2520 | 293350074 | Ball Bearing |
| 2530 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 2550 | 504152963 | Counter Shaft |
| 3100b | 504152873 | Axle-drive |
| 3100c | 504153886 | Retaining Ring This part replaces 504153426. |
| 3100d | 293350059 | Ball Bearing |
| 3100e | 504153207 | Shim |
