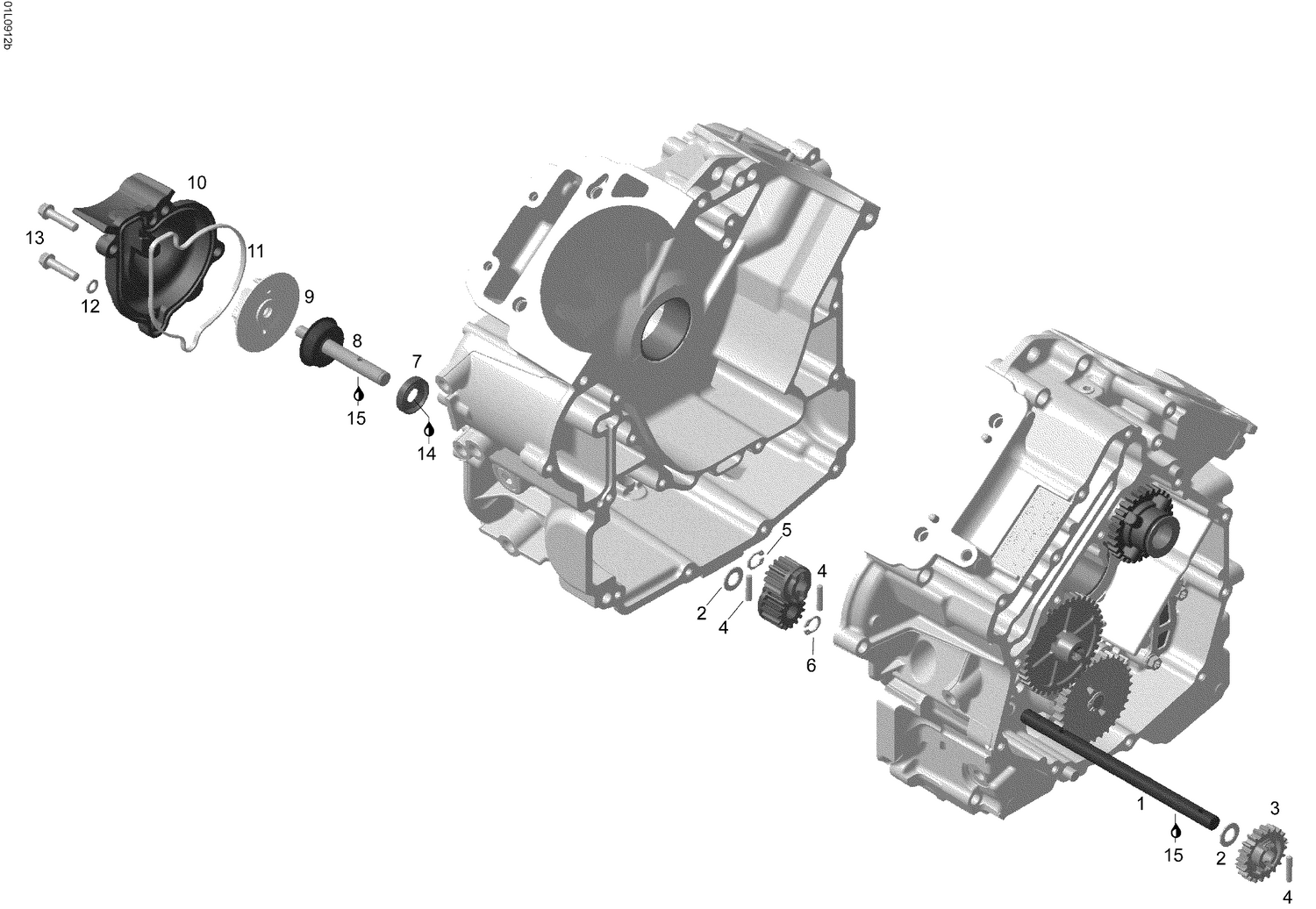

01- Waterpump
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420620500 | Intermediate shaft |
| 2 | 420827590 | Thrust washer |
| 3 | 420434330 | Waterpump gear (20 teeth) |
| 4 | 420232420 | Needle pin |
| 5 | 420234627 | Pump gear (15 teeth) |
| 6 | 420245330 | Circlip |
| 7 | Not | Available As Spare Part - Oil seal |
| 8 | 420620175 | Waterpump shaft ass'y |
| 9 | 420222505 | Impeller |
| 10 | 420222780 | WATER PUMP HOUSING - Call your local BRP dealership |
| 11 | 420651190 | Gasket |
| 12 | 420230415 | O-ring |
| 13 | 420641238 | Hex. Screw M6 x 25 |
| 14 | 293550030 | Grease, Super Lube This part replaces 293550014. |
