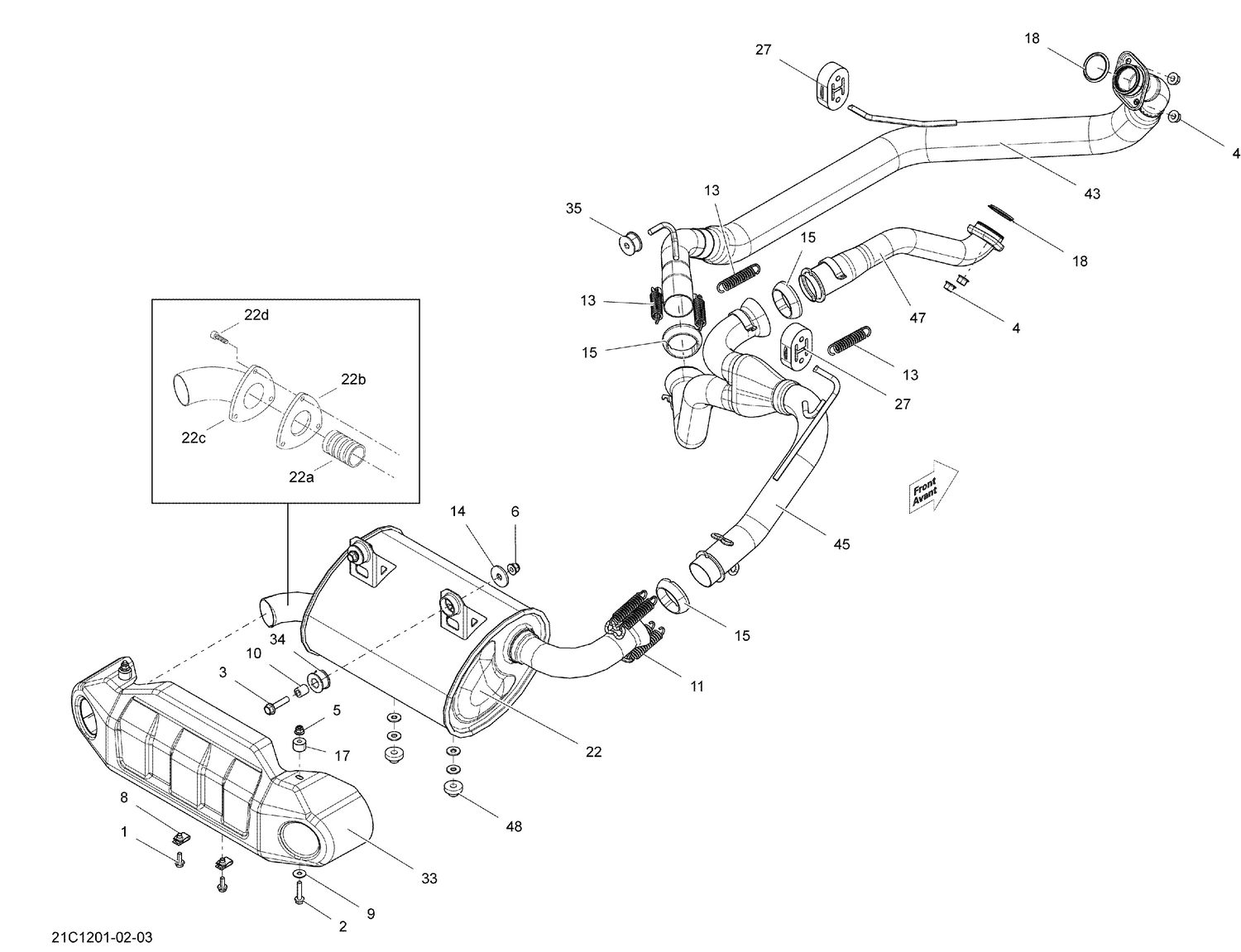

01- Exhaust System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 3 | 207683544 | Hex. Flange Screw M8 X 35 |
| 4 | 233081416 | Hex. Flange Nut M8 |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 9 | 250200082 | Flat Washer |
| 10 | 293900106 | Bushing |
| 11 | 415107100 | Spring |
| 13 | 415107100 | Spring |
| 14 | 503032900 | Washer |
| 15 | 707601033 | Exhaust Gasket This part replaces 514053532. |
| 17 | 707000882 | Bushing |
| 18 | 707600317 | Gasket |
| 22 | 707600545 | MUFFLER_EXHAUST ASSY - Call your local BRP dealership |
| 22a | 707601803 | Spark Arrester This part replaces 715900089. |
| 22b | 715900090 | Gasket |
| 22c | 715900091 | Muffler Outlet End Piece |
| 27 | 707600638 | Rubber Bumper |
| 33 | 707600675 | Deflector |
| 34 | 707603323 | Vibration Damper This part replaces 707600701. |
| 35 | 707600702 | Anti-Vibration Rubber |
| 43 | 707601013 | Front Head Pipe This part replaces 707600541. |
| 45 | 707601020 | Link Head Pipe This part replaces 707600639. |
| 47 | 707601016 | Rear Head Pipe This part replaces 707600543. |
| 48 | 709200285 | Grommet |
