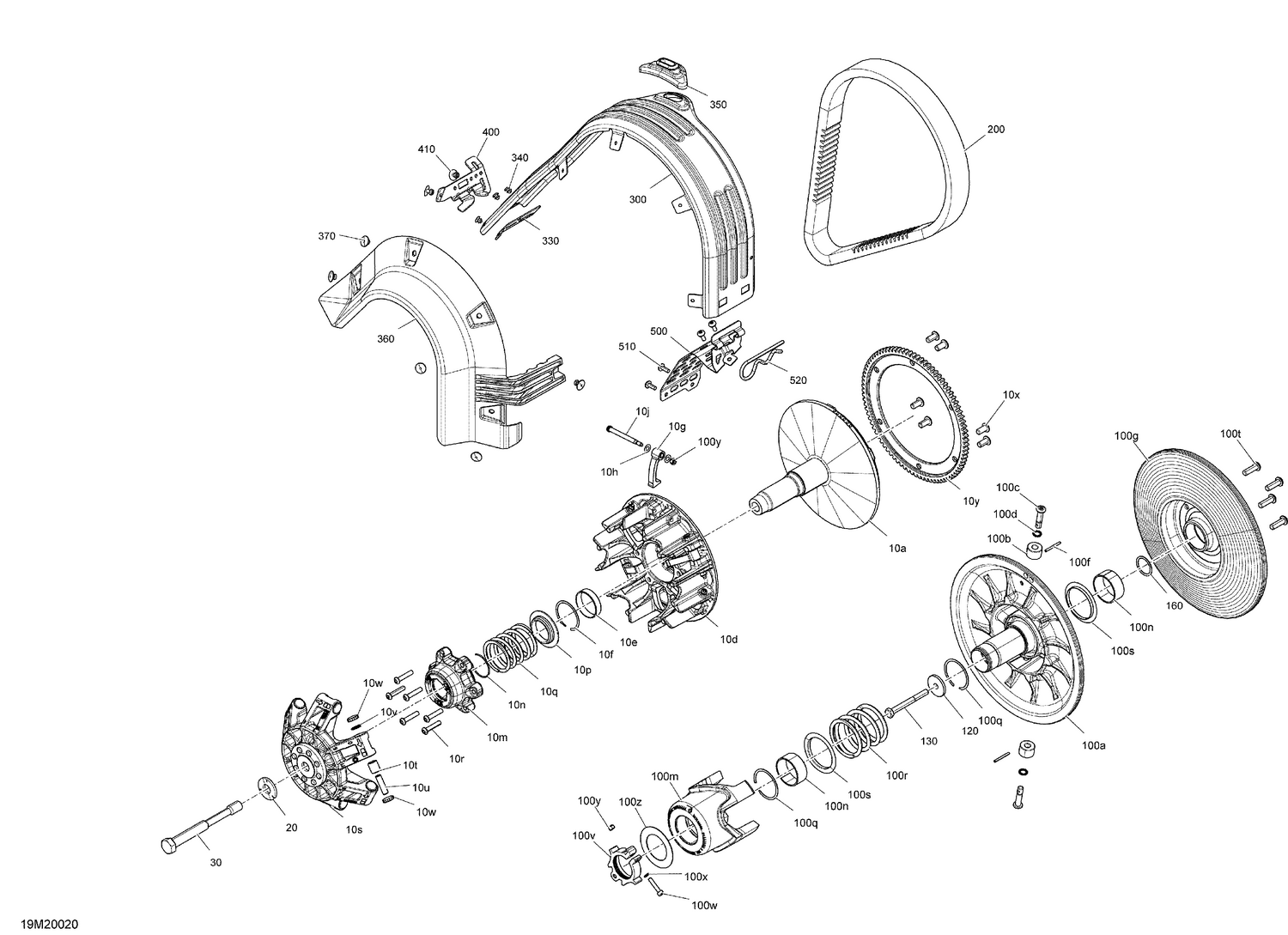

05- Pulley - System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 10e | 417222758 | Bushing |
| 10f | 293370037 | Circlip |
| 10g | 417223604 | Ramp 700 Ass'y This part replaces 417223557. |
| 10h | 417223255 | Thrust Washer |
| 10j | 417223694 | Ramp Axle |
| 10n | 293370065 | Circlip |
| 10p | 417223752 | Seat Spring |
| 10q | 417223748 | Spring Clutch |
| 10r | 250000580 | Torx Screw M6 X 30 |
| 10s | 417223865 | Governor Cup Ass'y |
| 10t | 417223767 | Roller |
| 10u | 417223257 | Roller Axle |
| 10v | 293300185 | O-Ring |
| 10w | 417223919 | Slider Shoe |
| 10x | 250000706 | Torx Button Head Screw M8 X 16 |
| 10y | 417223476 | Crown Gear Launch |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300432 | Pulley Drive Bolt |
| 100b | 417127016 | Pulley Roller |
| 100c | 417127294 | Pivot Stud |
| 100d | 250200009 | Lock Washer 8 mm |
| 100f | 250400063 | Spring Pin M3 X 30 |
| 100n | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100q | 293370049 | Circlip |
| 100r | 417127061 | Spring |
| 100s | 417127116 | Swivel Abutment |
| 100t | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 100v | 415129604 | Calibration Ass'y |
| 100w | 250000981 | Socket Screw M5 X 25 |
| 100x | 234051410 | Flat Washer M5 |
| 100y | 232551414 | Elastic Stop Nut M5 |
| 100z | 417127155 | Washer |
| 120 | 517302322 | Strength Washer |
| 130 | 207287544 | Hex. Cap Screw M8 X 75 |
| 160 | 417300265 | Spacer |
| 200 | 417300585 | Drive Belt This part replaces 417300127. |
| 300 | 417300382 | Belt Guard |
| 330 | 417300380 | Reinforcement |
| 340 | 390909200 | Avex Rivet |
| 350 | 417300381 | Guide |
| 360 | 417300356 | Side Protector |
| 370 | 293150103 | Pop Rivet 3/16" |
| 400 | 417300386 | Front Belt Guard Bracket |
| 410 | 293150104 | Pop Rivet 3/16" |
| 500 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 510 | 250000742 | Torx Screw M5 X 14 |
