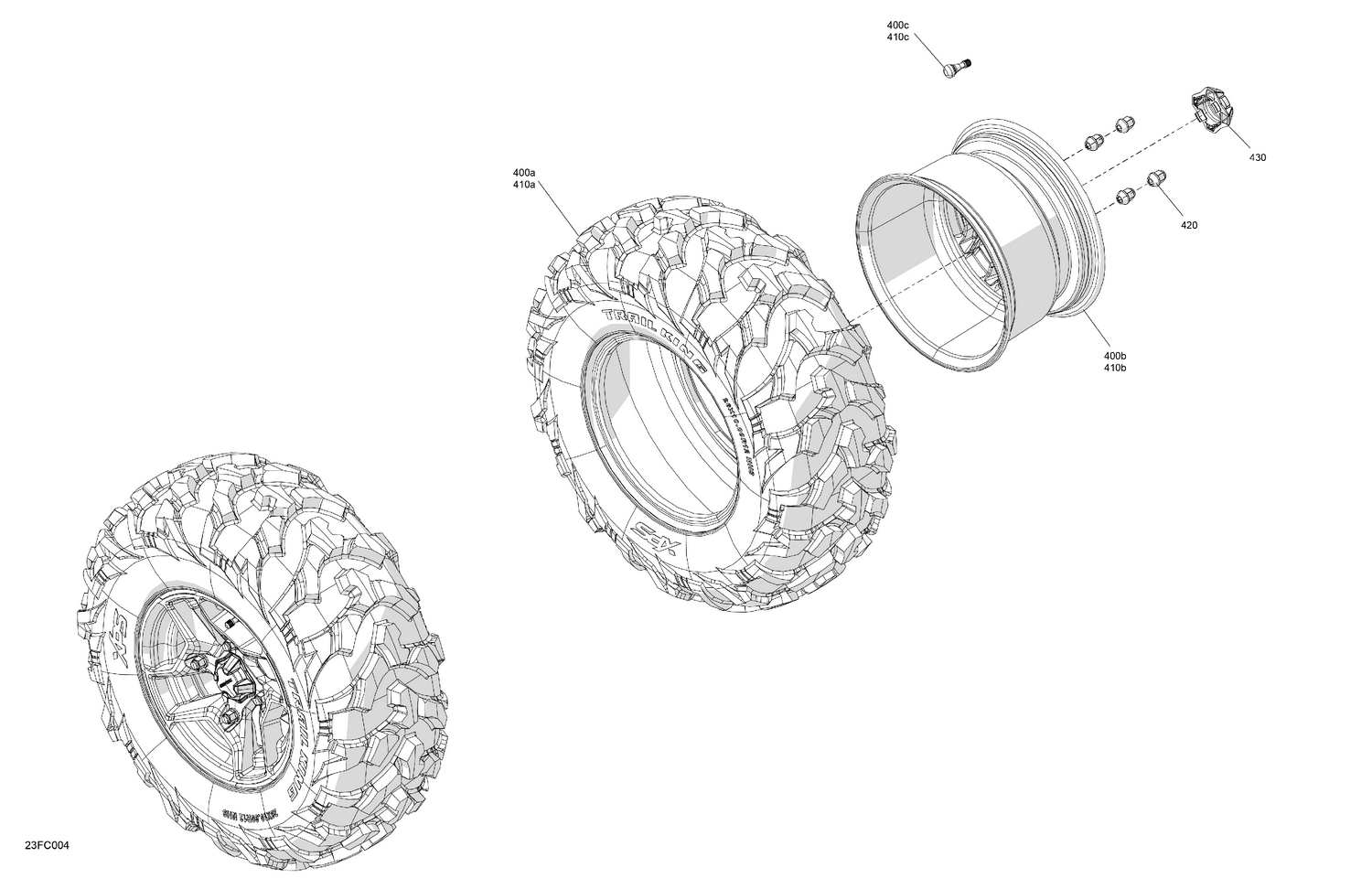

04- Drive - Rear Wheels

04- Drive - Rear Wheels

Parts (5)

RefPart NumberDescription
400a 705503073 Tire 26X10-R12
400c 705402595 Tire Valve Ass'y
410a 705503073 Tire 26X10-R12
410c 705402595 Tire Valve Ass'y
420 250100184 Black, Wheel Nut M10 X 1.25
