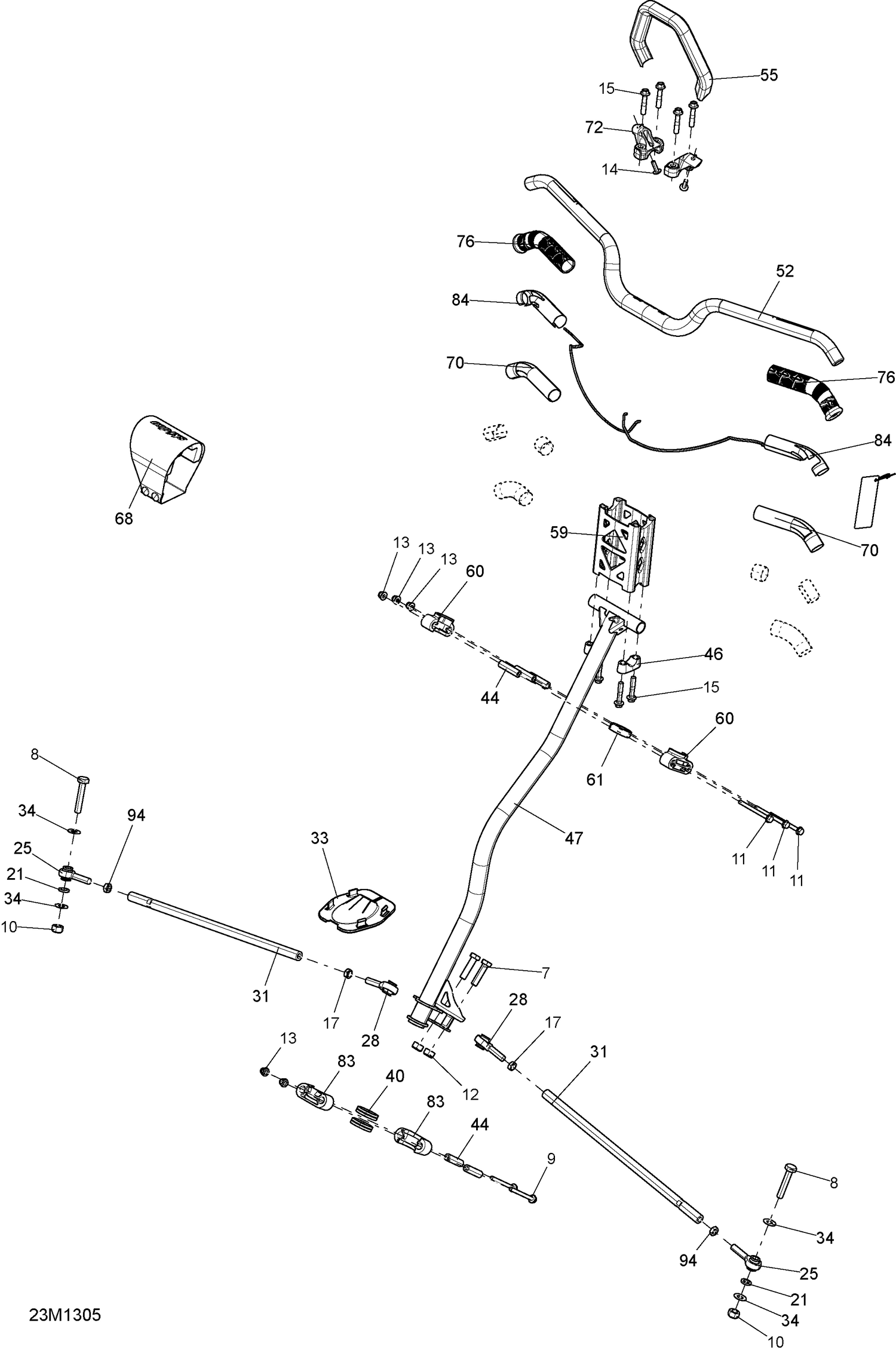

07- Steering
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 8 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 9 | 207667044 | Hex. Flange Screw M6 X 70 |
| 10 | 250100132 | ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 11 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 12 | 232500416 | Elastic Stop Nut M10 |
| 13 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 15 | 250000352 | Hex. Flange Screw M8 X 40 |
| 33 | 506152163 | Plate |
| 34 | 506152582 | Washer |
| 40 | 506152518 | Lower Vibration Ring |
| 44 | 506152297 | Housing Bushing |
| 46 | 506152751 | Steering Support This part replaces 506152395. |
| 47 | 506152962 | Steering Column This part replaces 506152584. |
| 60 | 506152508 | Upper Half-Housing |
| 61 | 506152509 | Upper Anti-Vibration Gasket |
| 70 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 76 | 506152560 | Grip 148mm |
| 84 | 506152798 | Heating Element 32 Watt 3 Wires This part replaces 506152606. |
