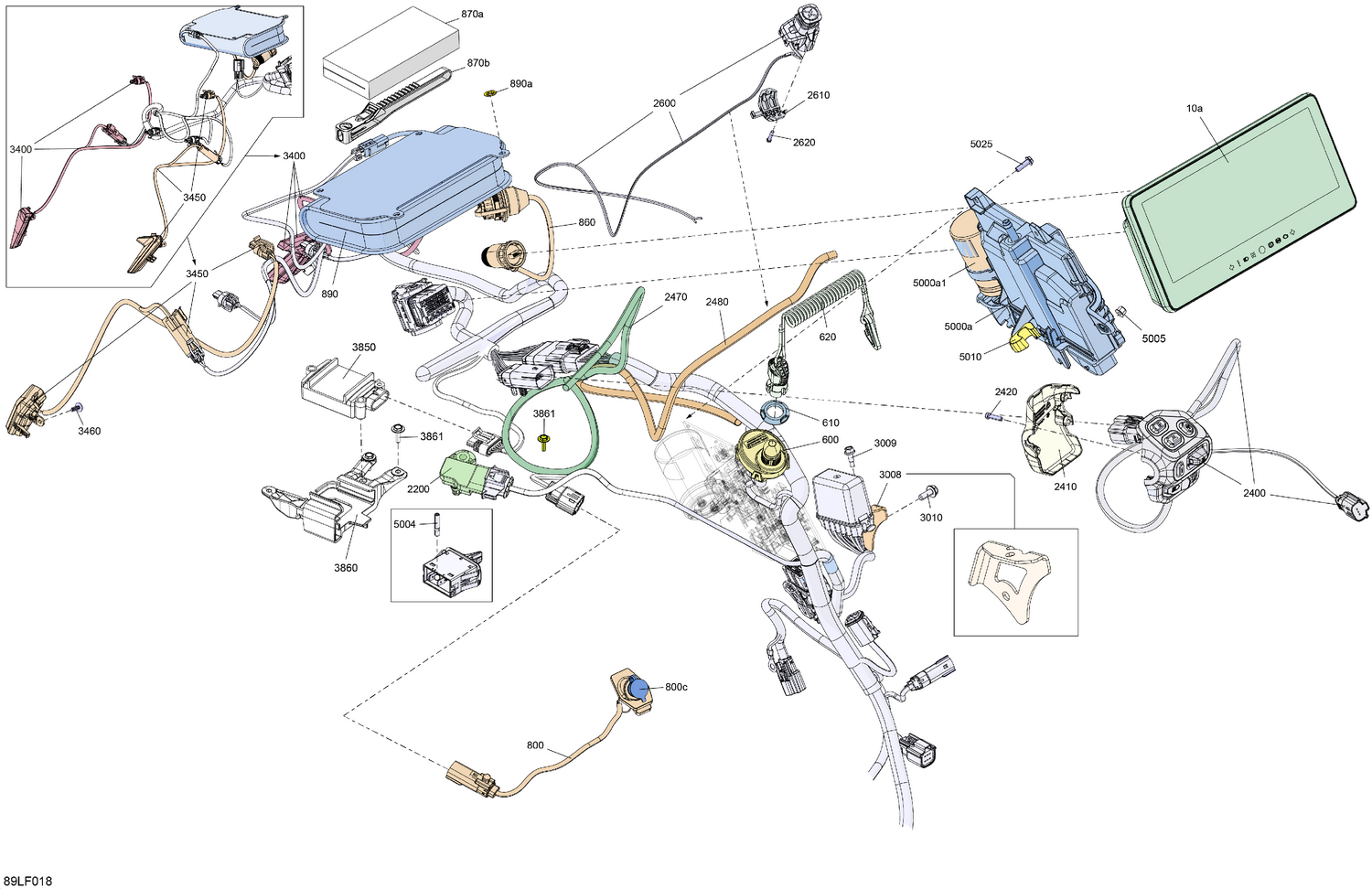

08- Electric - Upper Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710010374 | Multifunction Gauge 10 |
| 600 | 710008832 | Dess Can Terminal |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178288 | Key |
| 800c | 572103300 | Cap |
| 870a | 264000135 | Sealed Foam Compartment |
| 870b | 515179675 | Mounting Clamp P |
| 890a | 732610072 | Push Nut |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2400 | 515179679 | LH Front Multifunction Switch |
| 2410 | 415130659 | Rear Housing This part replaces 515179438. |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3008 | 515179281 | Fuse Box Support |
| 3009 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3010 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3400 | 520003238 | RH Auxiliary Light |
| 3450 | 520003239 | LH Auxiliary Light |
| 3460 | 250001034 | Torx-Truss Screw K40 X 10 |
| 3850 | 278004506 | GPS |
| 3860 | 515179316 | Module Support |
| 3861 | 250000725 | Screw M4 X 16 |
| 5000a1 | 515177272 | Capacitor |
| 5004 | 515180121 | Stud Double End M5X0.8X26 |
| 5005 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 5010 | 515178430 | Rubber Stopper |
