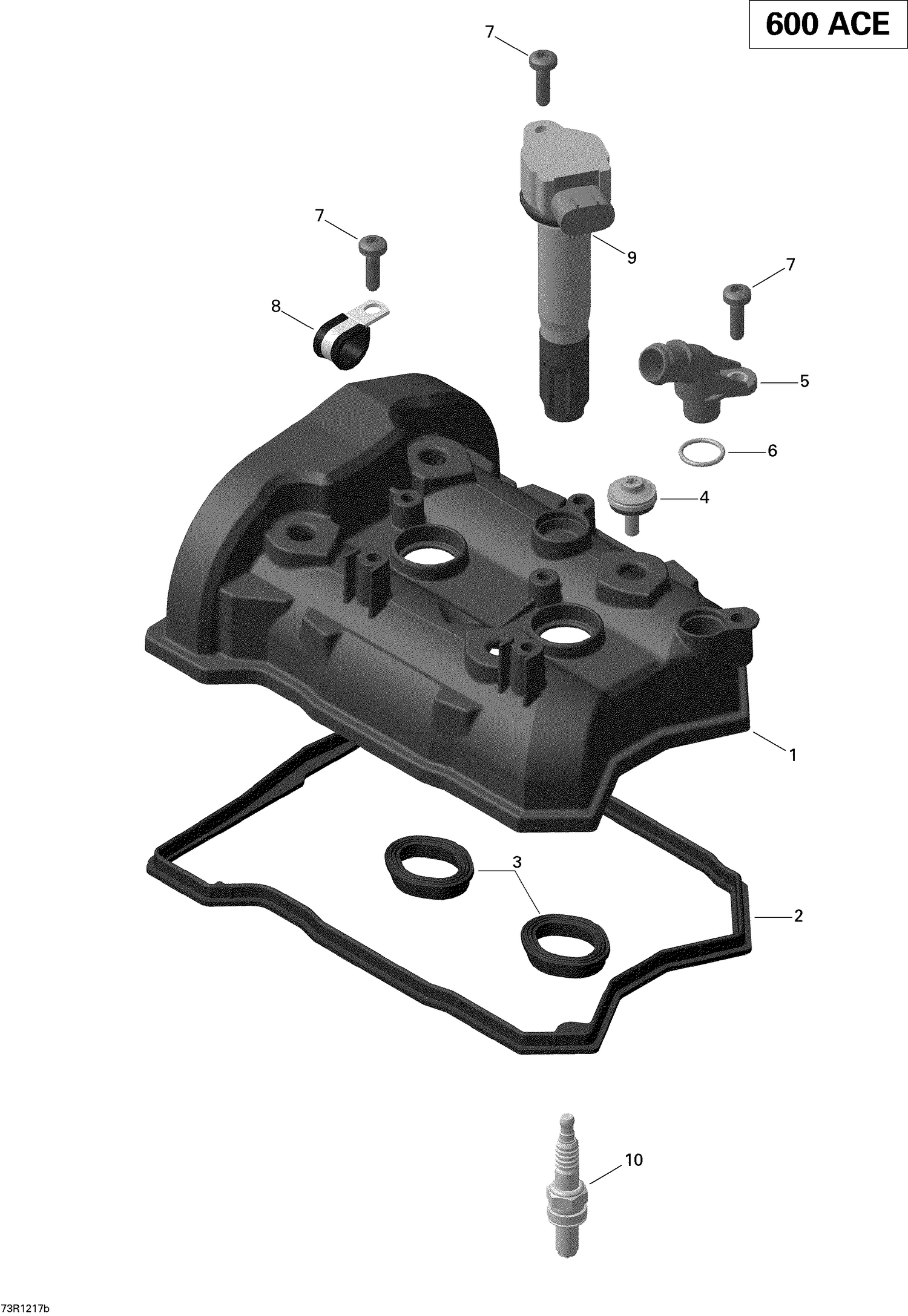

01- Valve Cover
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911040 | VALVE COVER - Call your local BRP dealership |
| 2 | 420431621 | Gasket This part replaces 420431620. |
| 3 | 420431751 | Valve Cover Gasket This part replaces 420431750. |
| 4 | 420440495 | Torx Distance Screw M6 |
| 5 | 420611240 | Connector |
| 6 | 420631260 | O-RING - Call your local BRP dealership |
| 7 | 420441381 | FLANGED TORX SCREW M6 X 20 - Call your local BRP dealership |
| 8 | 420851492 | Cable Clamp |
| 9 | 420666142 | Stick Coil This part replaces 420666140. |
