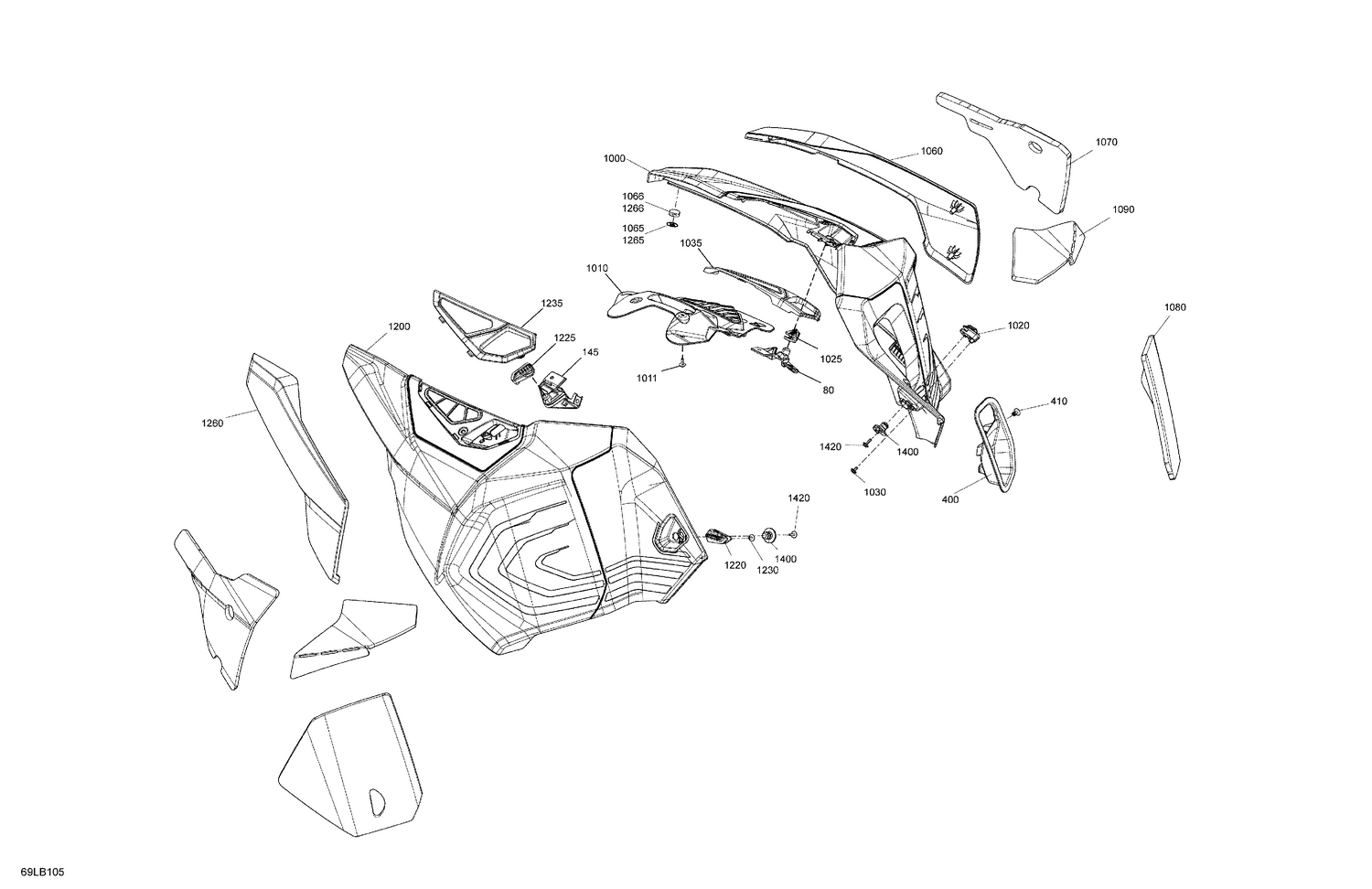

07- Body - Side Panels
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 517306450 | RH Knob Part |
| 145 | 517306451 | LH Knob Part |
| 400 | 517306302 | Reverse Lever Trim |
| 410 | 293150104 | Pop Rivet 3/16 |
| 1000 | 517306806 | RH Side Panel 16" With Wing Holes |
| 1010 | 517306769 | RH Grill |
| 1011 | 250000725 | Screw M4 X 16 |
| 1020 | 517305773 | RH Rear Latch |
| 1025 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1035 | 517306482 | RH Trim |
| 1060 | 517307011 | Red, RH Air Deflector |
| 1065 | 508000853 | Push Nut |
| 1066 | 517306809 | Rubber Damper |
| 1070 | XXX | Not Available As Spare Parts |
| 1080 | XXX | Not Available As Spare Parts |
| 1090 | XXX | Not Available As Spare Parts |
| 1200 | 517306807 | LH Side Panel 16" With Wing Holes |
| 1220 | 517305774 | LH Rear Latch |
| 1225 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1235 | 517306481 | LH Trim |
| 1260 | 517307014 | Red, LH Air Deflector |
| 1265 | 508000853 | Push Nut |
| 1266 | 517306809 | Rubber Damper |
| 1400 | 517305985 | Rear Stud |
