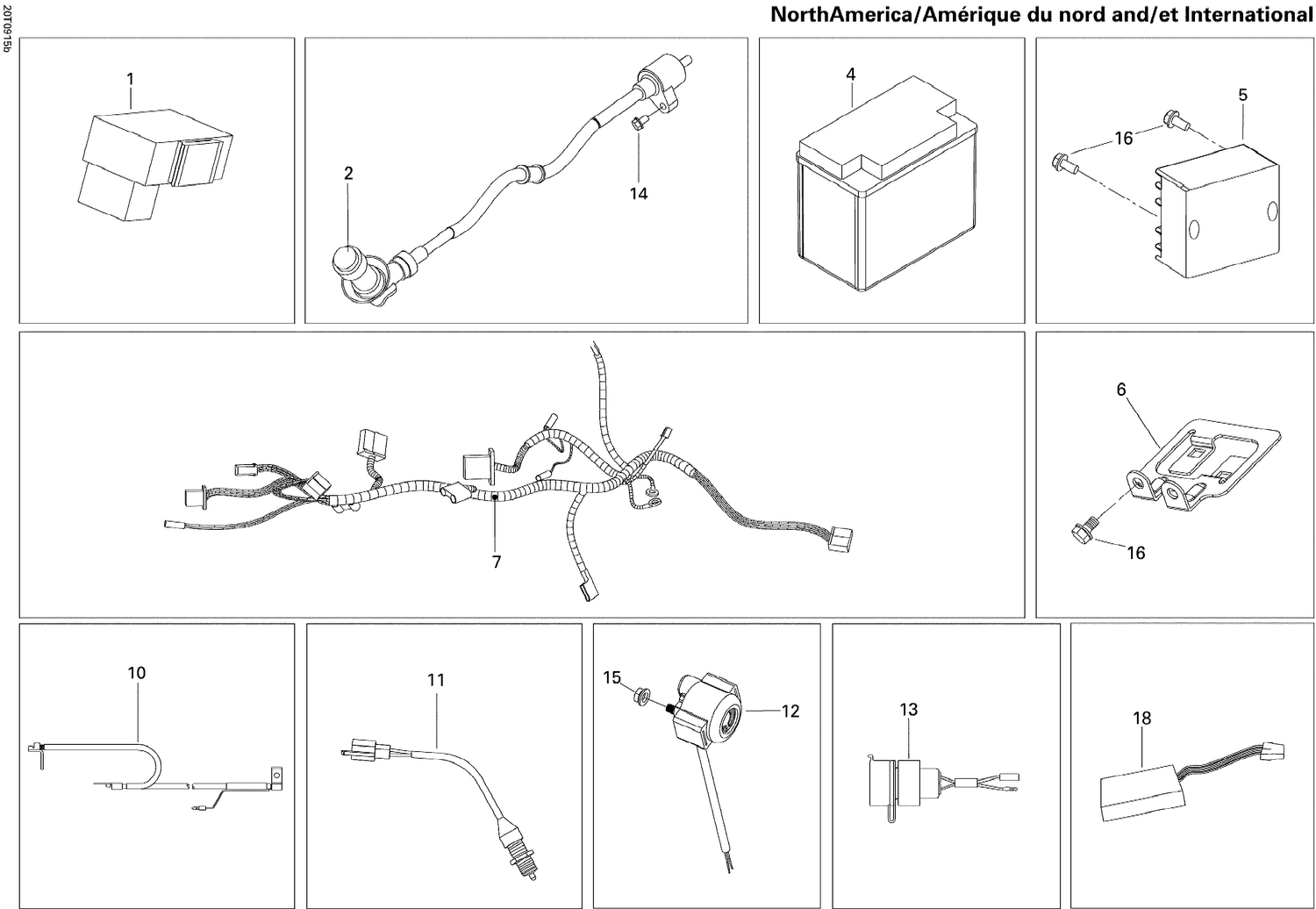

10- Electrical Components NA, INT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S30400RCB000 | CDI Unit Ass'y |
| 2 | S3051ARB1000 | Ignition Coil |
| 4 | 715900031 | Battery 12 Amp |
| 5 | S31600RCA010 | Redresseur *Rectifier This part replaces S31600RCA000. |
| 6 | S31601RCA000 | Connector Bracket |
| 7 | S32100RCB800 | Harness Ass'y This part replaces S32100RCB900. |
| 10 | S32412RB1000 | Ground Cable |
| 11 | S35350RCA000 | Rear Stop Switch Ass'y |
| 12 | S3585ARCA000 | Starter Solenoïd |
| 13 | S38600RA1000 | DC Power Outlet, 12 Volts |
| 14 | S90112GK8000 | Flange Bolt M5 X 22 |
| 15 | S9405006070 | Flanged Nut 6 mm |
| 16 | S958010601607 | Flanged Bolt M6 X 16 |
