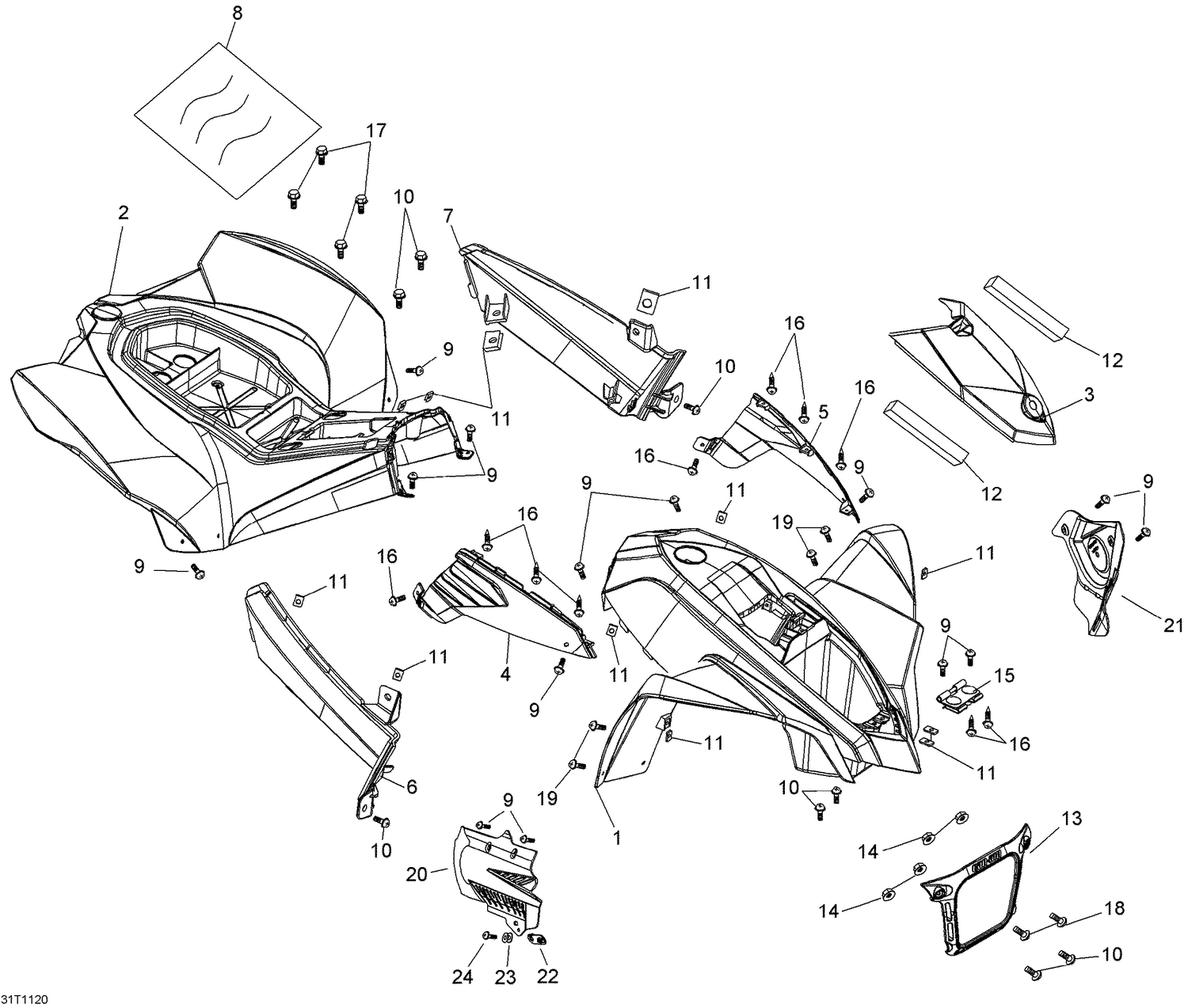

09- Body And Accessories
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 3 | V82103DGF00HLL | Cargo Cover |
| 4 | V80104DGF010BKLL | RH Front Side Panel |
| 5 | V80105DGF010BKLL | LH Front Side Panel |
| 6 | V80116DGF000BKLL | RH Rear Side Panel |
| 7 | V80117DGF000BKLL | LH Rear Side Panel |
| 8 | V18450DGF000LL | Heat Insulation Sheet |
| 9 | V930000601201LL | Round Head Screw |
| 10 | V930000601501LL | Round Head Screw |
| 11 | V9034506000KLL | Spring Nut |
| 12 | V81146DGF020 | Waterproof Strip |
| 13 | V82113DGF01H | SKID PLATE, YELLOW - Call your local BRP dealership |
| 14 | 232561414 | Elastic Stop Nut M6 |
| 15 | V50262DGF030LL | Cargo Cover Hinge This part replaces V50262DGF030. |
| 16 | V9309304012LL | Tapping Screw |
| 17 | 207661244 | Hex. Flange Screw M6 X 12 |
| 18 | V9300006035 | Round Haed Bolt M6 X 35 |
| 19 | V9300006020 | Round Head Bolt M6 X 20 |
