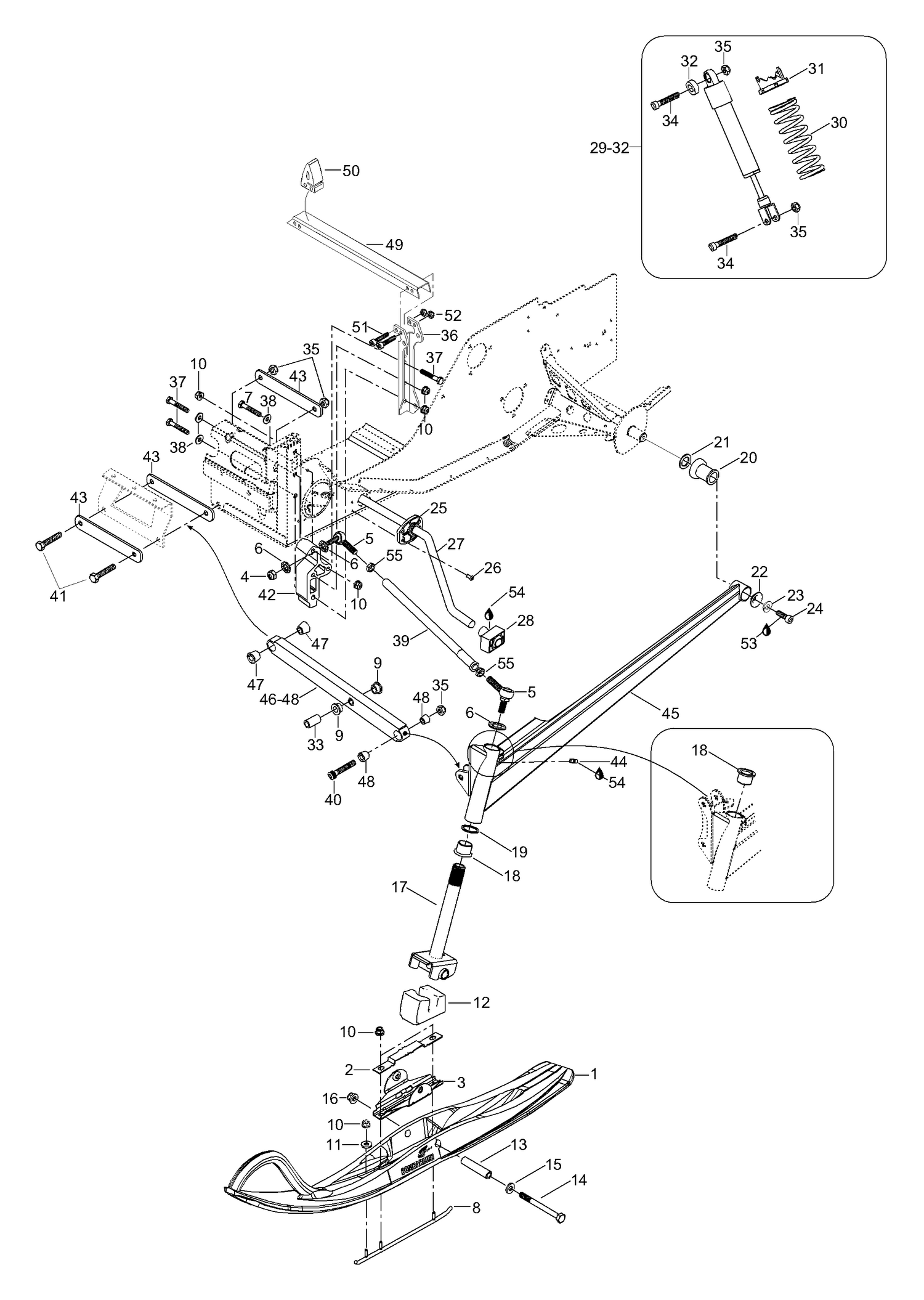

| Ref | Part Number | Description |
|---|
| 1 |
505072019 |
Ski *Ski This part replaces 505070975. |
| 2 |
605349410 |
Bracket, stopper-ski |
| 3 |
505070980 |
BRIDGE ASS'Y - Call your local BRP dealership |
| 4 |
33087 |
Jam nut elastic M12 |
| 5 |
31092 |
Ball joint |
| 6 |
20074 |
Lock washer |
| 7 |
40010 |
Screw M8x55 |
| 8 |
605348677 |
Runner carbide |
| 9 |
31088 |
Bearing |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 11 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 12 |
570070400 |
Stopper-ski |
| 13 |
506133300 |
Spacer |
| 14 |
40238 |
Screw M10x130 |
| 15 |
20105 |
Washer, hardened |
| 16 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 17 |
5245502 |
Ski leg |
| 18 |
505070003 |
Bushing |
| 19 |
505070004 |
WASHER - Call your local BRP dealership |
| 20 |
570062200 |
DAMPER - Call your local BRP dealership |
| 21 |
503146700 |
WASHER - Call your local BRP dealership |
| 22 |
506079600 |
CUP - Call your local BRP dealership |
| 23 |
20014 |
Spring washer |
| 24 |
40289 |
Allen screw M8x25 |
| 25 |
505070533 |
Bushing |
| 26 |
36009 |
Rivet |
| 27 |
605248976 |
Stabilisator |
| 28 |
505070531 |
Block, ball joint |
| 31 |
505073625 |
Adjustment Cam This part replaces 503183700. |
| 32 |
230055 |
Rubber bushing |
| 33 |
5441433 |
Bushing |
| 34 |
40837 |
Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 35 |
33012 |
Nut elastic M10 |
| 36 |
5248048 |
L.H. Shock bracket |
| 36 |
5248049 |
R.H. Shock bracket |
| 37 |
207089044 |
Hex. Screw M8 x 90 This part replaces 40264. |
| 38 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 39 |
5346122 |
Upper arm |
| 40 |
40136 |
Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership |
| 41 |
40814 |
Screw M10x110 |
| 42 |
5447559 |
L.H. Upper arm bracket |
| 42 |
5447566 |
R.H. Upper arm bracket |
| 43 |
5346112 |
Support plate |
| 44 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 45 |
605248963 |
L.H. Swing arm, red |
| 45 |
605248964 |
R.H. Swing arm, red |
| 47 |
5447769 |
Inner sleeve |
| 48 |
5447770 |
Outer sleeve |
| 49 |
5347225 |
Bracket |
| 50 |
5348099 |
Rubber plug |
| 51 |
40345 |
Allen screw M6x40 |
| 52 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 53 |
293800060 |
Loctite 243, 10ml |
| 54 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
