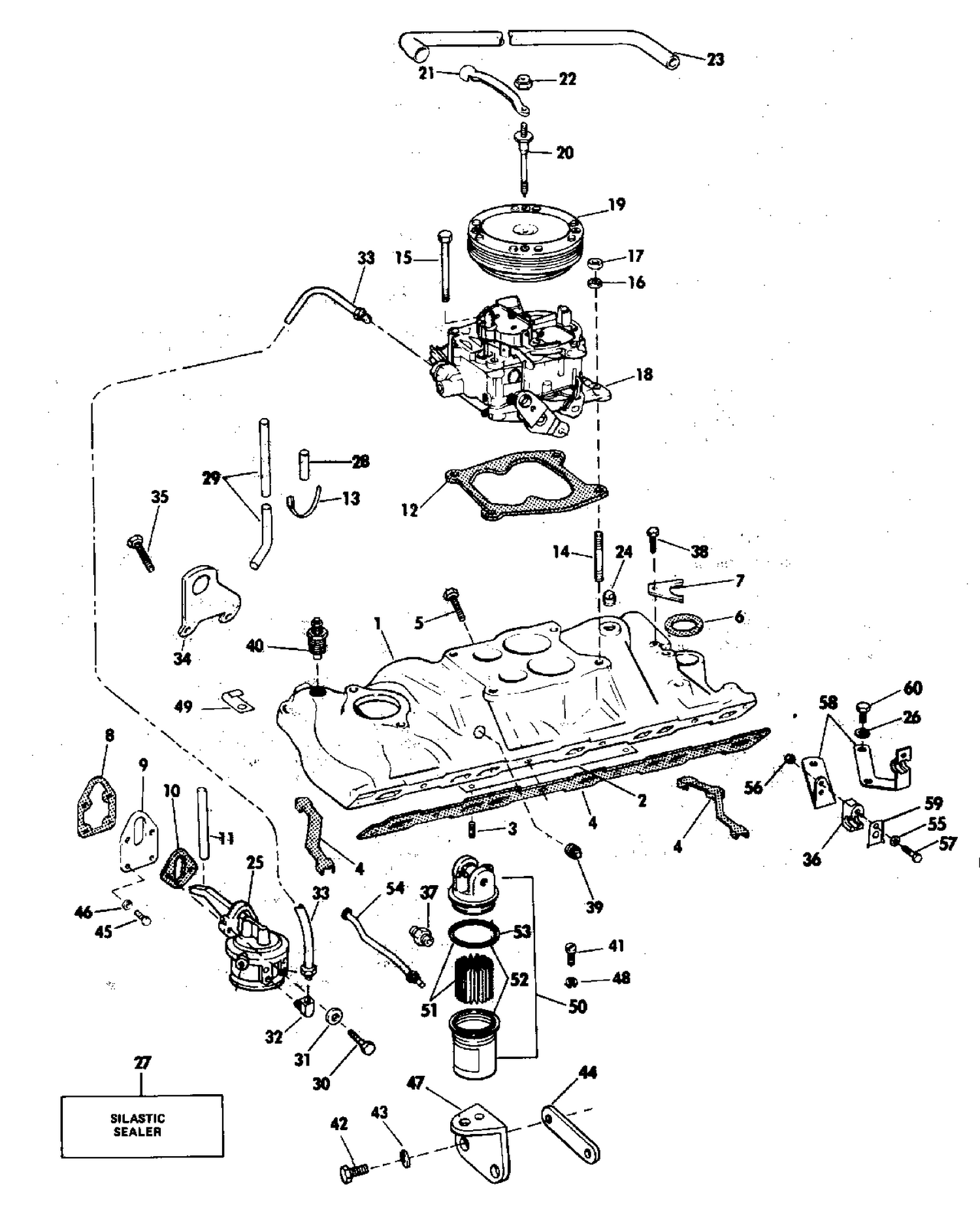

| Ref | Part Number | Description |
|---|
| 1 |
0343765 |
COLLIER, flexible d'indicateur d’éjection |
| 1 |
6269796 |
MANIFOLD, Intake |
| 2 |
6271071 |
GUARD, Intake manifold |
| 3 |
3959544 |
STUD, Gaurd |
| 4 |
14017888 |
GASKET, Manifold, rh |
| 4 |
14019844 |
GASKET, Manifold, RH |
| 4 |
14024464 |
GASKET SET, Manifold |
| 5 |
0120394 |
BOLD, Manifold to head |
| 5 |
0435611 |
BOLT, Hex, manifold to head, 3/8-16 x 1-1/8" |
| 5 |
3736035 |
BLT, Mnfld to hd (#1, #2, #6 l sde #6 r sde |
| 6 |
3932344 |
GASKET, Dist. to manifold |
| 7 |
14007385 |
CLAMP, Distributor |
| 8 |
3705044 |
GASKET, Fuel pump mounting plate |
| 9 |
3719599 |
PLATE, Fuel pump mounting |
| 10 |
3705042 |
GASKET, Fuel pump mounting |
| 11 |
3704817 |
PUSH ROD, Fuel pump |
| 12 |
0908765 |
GASKET, Carburetor |
| 12 |
0909758 |
GASKET, Caarburetor 185 hp |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 15 |
0306435 |
SCREW, Brace to alternator |
| 15 |
9419047 |
SCREW, Carb to manifold |
| 16 |
0311388 |
ORING |
| 18 |
0982223 |
CARBURETOR ASSY |
| 18 |
0982589 |
CARBURETOR |
| 19 |
0982303 |
FLAME ARRESTOR |
| 19 |
3854026 |
FLAME ARRESTOR This part replaces 0982304. |
| 20 |
0909536 |
STUD, Flame arrestor |
| 20 |
0909574 |
STUD, Flame arrestor |
| 21 |
3852438 |
CONNECTOR, Crankcase vent This part replaces 0908240. |
| 22 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 23 |
HOSE, |
Crankcase vent |
| 24 |
3852075 |
PLUG, Intake manifold This part replaces 0307948. |
| 25 |
3855276 |
FUEL PUMP ASSY. This part replaces 0981650. |
| 27 |
1052289 |
SEALER, Manifold ends |
| 28 |
0911417 |
SLEEVE, Overflow hose This part replaces 0909936. |
| 29 |
0909938 |
HOSE, Fuel overflow |
| 31 |
0120177 |
L'WASHER, Alternator to brkt |
| 32 |
3852453 |
FITTING, Cover, return line This part replaces 0908644. |
| 33 |
0981665 |
FUEL LINE ASSY |
| 33 |
0981666 |
FUEL LINE ASSY |
| 34 |
3923243 |
LIFT BRACKET, Head, rear |
| 34 |
3995632 |
LIFT BRACKET, Front |
| 35 |
0180120 |
SCREW, Lift bracket, front |
| 36 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 37 |
3852462 |
FITTING, Cover, return line This part replaces 0908923. |
| 38 |
0306834 |
BOLT, Throttle lever retainer |
| 39 |
0552909 |
PIPE PLUG, Elbow |
| 40 |
0171960 |
SENDER, Water temperature |
| 41 |
0306369 |
SCREW |
| 42 |
0306414 |
SCREW |
| 42 |
0306539 |
BOLT, Distributor |
| 43 |
0120177 |
L'WASHER, Alternator to brkt |
| 44 |
0908921 |
SPACER, bracket |
| 45 |
0306487 |
SCREW |
| 47 |
0908922 |
BRACKET, Fuel filter |
| 47 |
0909797 |
BRACKET, Fuel filter |
| 48 |
0120255 |
LOCKWASHER |
| 50 |
0981920 |
FUEL FILTER ASSY |
| 51 |
0982230 |
ELEMENT & GASKET ASSY |
| 52 |
0981911 |
CANISTER & GASKET ASSY |
| 53 |
0910024 |
GASKET |
| 54 |
0981895 |
FUEL LINE, Filter to pump |
| 54 |
0981896 |
FUEL LINE, Filter to pump |
| 55 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 57 |
0310356 |
SCREW |
| 58 |
0314208 |
ANCHOR BLOCK BRACKET, 225 HP |
| 58 |
0909642 |
ANCHOR BRACKET |
| 59 |
0909790 |
RETAINER |
