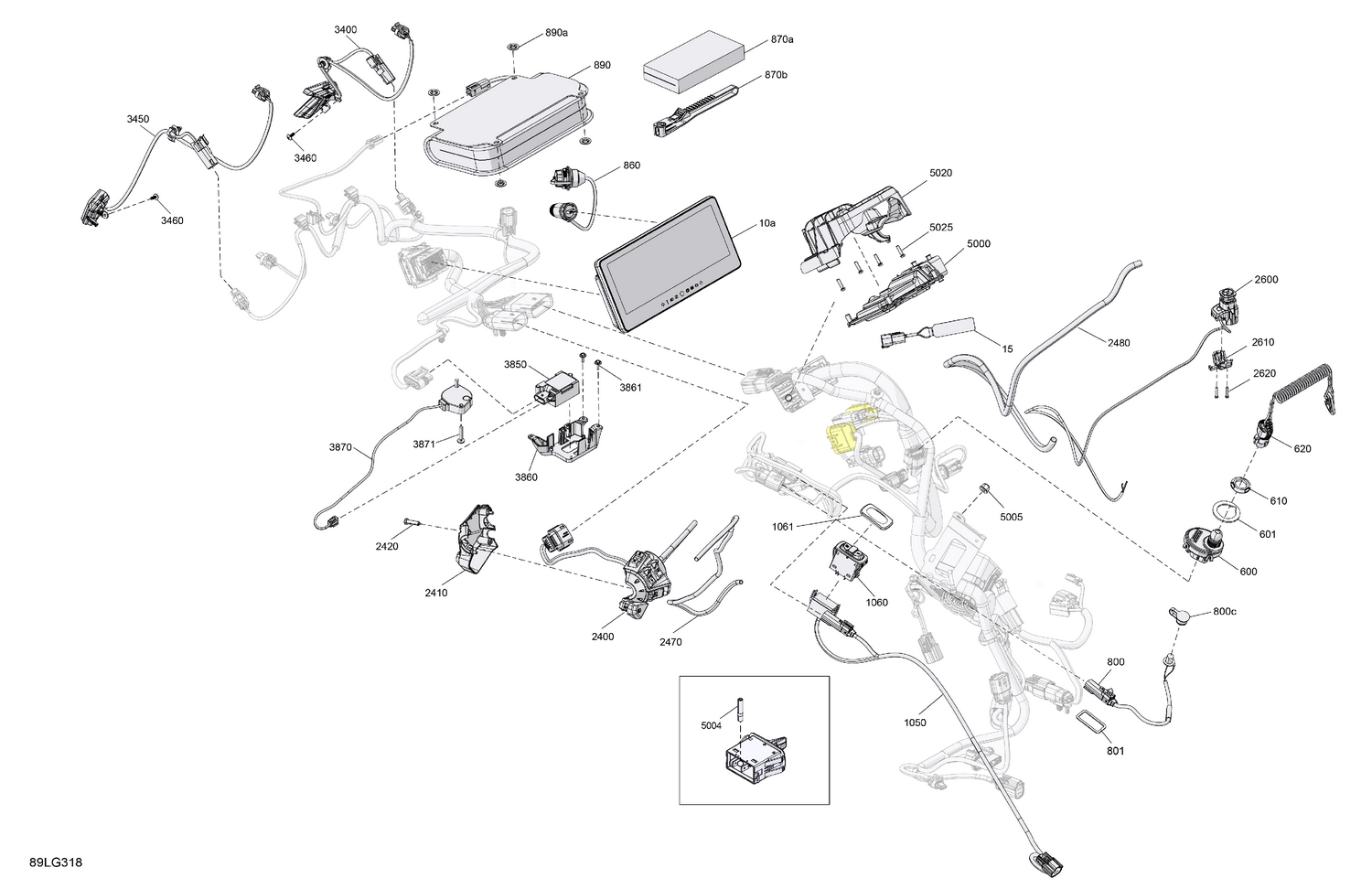

08- Electric - Upper Section
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710010374 | Multifunction Gauge 10 |
| 15 | 515179997 | Calibration Wiring Harness |
| 600 | 710008832 | Dess Can Terminal |
| 601 | 513034206 | Self Adhesive Weather Strip |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178288 | Key |
| 800c | 572103300 | Cap |
| 801 | 513034207 | Self Adhesive Weather Strip |
| 860 | 515179248 | USB Wiring Harness Ass'y |
| 870a | 264000135 | Sealed Foam Compartment |
| 870b | 515179675 | Mounting Clamp P |
| 890a | 732610072 | Push Nut |
| 1050 | 515178608 | Seat Wiring Harness |
| 1060 | 515179490 | Heated Seat Switch |
| 1061 | 515179778 | Boot |
| 2400 | 515179679 | LH Front Multifunction Switch |
| 2410 | 415130659 | Rear Housing This part replaces 515179438. |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3400 | 520003238 | RH Auxiliary Light |
| 3450 | 520003239 | LH Auxiliary Light |
| 3460 | 250001034 | Torx-Truss Screw K40 X 10 |
| 3850 | 515180251 | Radiofrequency Module |
| 3860 | 515179847 | Module Support |
| 3861 | 250000725 | Screw M4 X 16 |
| 3870 | 515179819 | Radio Frequency Antenna |
| 3871 | 250001110 | Torx Screw K50 X 25 |
| 5000 | 420464172 | ECM Module |
| 5004 | 515180121 | Stud Double End M5X0.8X26 |
| 5005 | 233251434 | Flanged Elastic Nut M5 |
| 5020 | 512061397 | Module Support |
