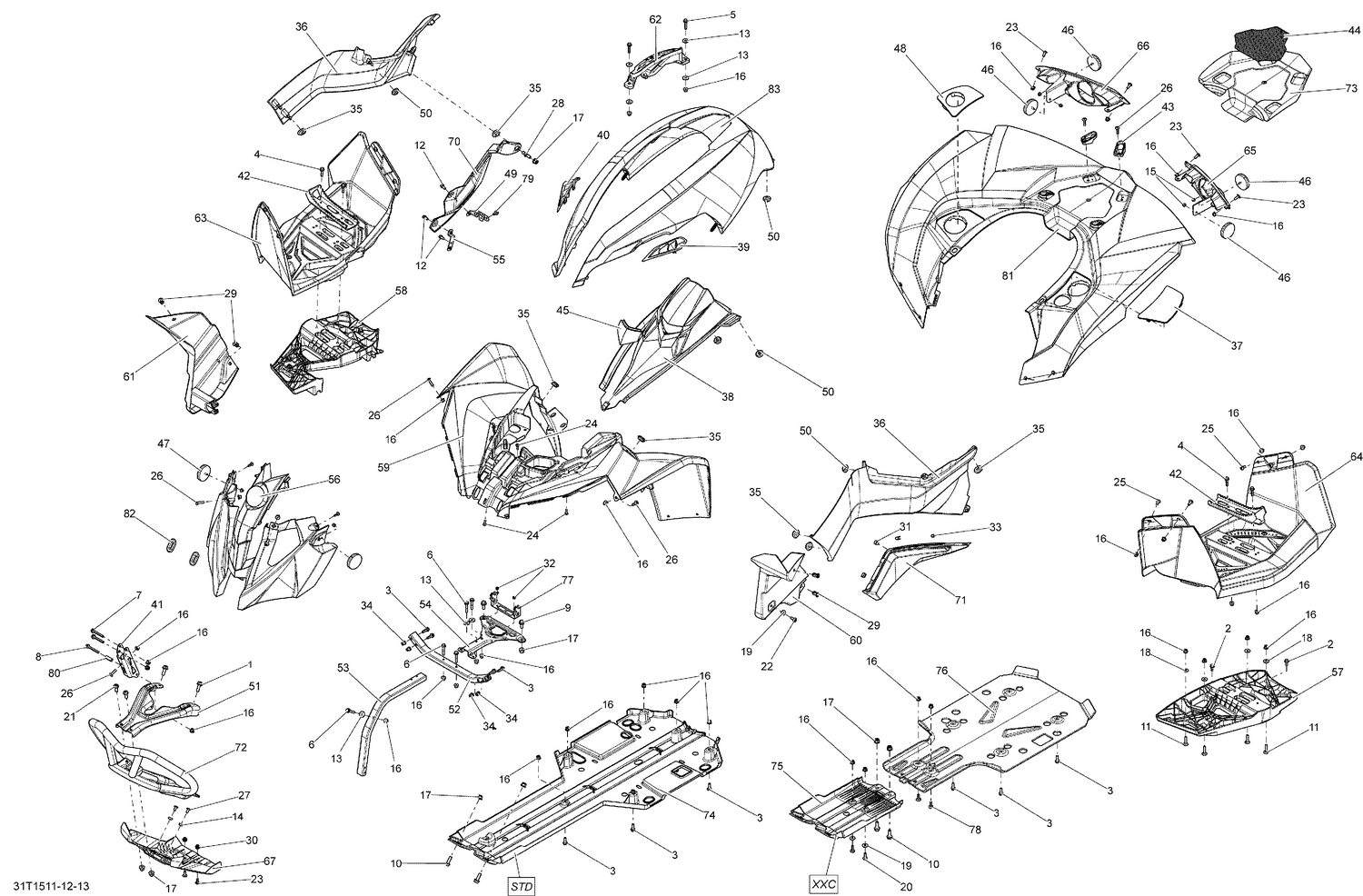

09- Body And Accessories _31T1511
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 2 | 207661654 | Hex. Flange Screw M6 X 16 This part replaces 207661684. |
| 3 | 207662054 | Hex. Flange Screw M6 X 20 |
| 4 | 207662554 | Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 5 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 6 | 207663544 | Hex. Flange Screw M6 X 35 |
| 7 | 207664544 | Hex. Flange Screw M6 X 45 |
| 8 | 207665044 | Hex. Flange Screw M6 X 50 |
| 9 | 207682044 | Hex. Flange Screw M8 X 20 |
| 10 | 207682534 | Hex. Flange Screw M8 X 25 |
| 11 | 207763044 | Carriage Bolt M6 X 30 |
| 12 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 13 | 224061201 | Flat Washer |
| 14 | 232862412 | Square Nut M6 |
| 15 | 233251434 | Flange Elastic Nut M5 |
| 16 | 233261434 | Flange Elastic Nut M6 |
| 17 | 233281434 | Hex. Flange Elastic Nut M8 |
| 18 | 234062410 | Flat Washer 6 mm |
| 19 | 234062670 | Stainless Steel Flat Washer |
| 20 | 250000712 | Torx Screw M6 X 20 |
| 21 | 250000740 | Torx Screw M8 X 20, Scotch Grip This part replaces 250000117. |
| 22 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 23 | 250000721 | Torx Truss Screw M6 X 16 |
| 24 | 250000720 | Torx Screw K50 X 16 |
| 25 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 26 | 250000284 | Torx Screw M6 x 25 |
| 27 | 250000454 | Torx Screw M6 X 12 |
| 28 | 250300039 | Ball Head Stud |
| 29 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 30 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 31 | 293830005 | Rubber Bumper |
| 32 | 390402400 | Pop Rivet 3/16" |
| 33 | 414479100 | Clip |
| 34 | 293450275 | Insert |
| 35 | 705000321 | Oval Washer |
| 36 | 705002958 | Black, LH Lateral Panel |
| 36 | 705002959 | Black, RH Side Panel |
| 37 | 705017923 | LH Rear Body Panel Cap This part replaces 705001910. |
| 38 | 705003556 | Dashboard |
| 39 | 705008137 | LH Grille This part replaces 705002276. |
| 40 | 705008138 | RH Grille This part replaces 705002277. |
| 41 | 705002282 | Support |
| 42 | 705002326 | Footrest |
| 43 | 705017925 | Hook This part replaces 705002342. |
| 44 | 705002343 | Rear Carpet |
| 45 | 705002353 | Cap |
| 46 | 705011221 | Red Reflector This part replaces 705002408. |
| 47 | 705011222 | Amber Reflector This part replaces 705002409. |
| 48 | 705017924 | RH Rear Body Panel Cap This part replaces 705002420. |
| 49 | 705011461 | Engine Cover Support This part replaces 705002667. |
| 50 | 705003264 | Grommet |
| 51 | 705003505 | Bumper Support |
| 52 | 705016093 | Bent Sectional Tube This part replaces 705003510. |
| 53 | 705016643 | Front Sectinal Bent Tube This part replaces 705003511. |
| 54 | 705003599 | Bracket |
| 55 | 705003646 | Engine Cover Support |
| 56 | 705003948 | Front Facia |
| 57 | 705004176 | LH Footboard |
| 58 | 705004177 | RH Footboard |
| 60 | 705004307 | LH INNER FENDER - Call your local BRP dealership |
| 61 | 705004308 | RH INNER FENDER - Call your local BRP dealership |
| 62 | 705003838 | Lever Indicator |
| 63 | 705004729 | RH Footboard/Fender |
| 64 | 705004730 | LH Footboard/Fender |
| 67 | 705004850 | Front Bumper Plate |
| 70 | 705004966 | Engine Cover |
| 71 | 705004988 | Panel Extension |
| 72 | 705011635 | Front Bumper This part replaces 705004993. |
| 73 | 705005840 | Reflective Sheet |
| 74 | 715002374 | Protective Plate Kit |
| 75 | XXX | Not Available As Spare Parts |
| 76 | XXX | Not Available As Spare Parts |
| 78 | XXX | Not Available As Spare Parts |
| 80 | 705005809 | Spacer |
| 82 | 705003668 | Oblong Grommet |
