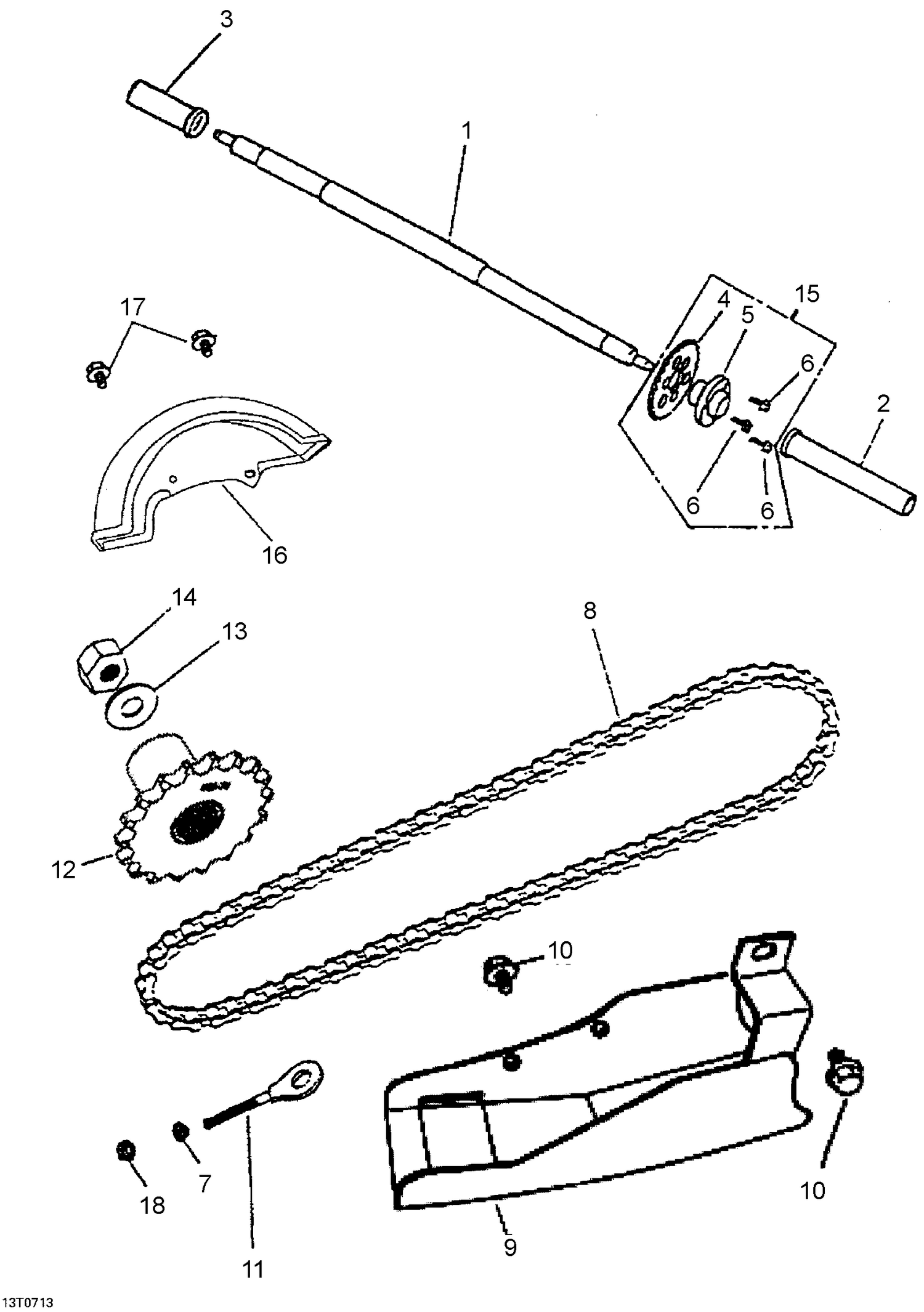

08- Drive System, Rear
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A42301145000 | REAR WHEEL AXLE - Call your local BRP dealership |
| 2 | A42620145001 | RIGHT SPACER COLLAR - Call your local BRP dealership |
| 3 | A42622145001 | Left Spacer Collar |
| 4 | A41201146000 | Rear Sprocket, 40T |
| 5 | A42610145000 | Final Drive Flange |
| 6 | A960001002014 | Hex. Washer Face Bolt, 10 X 20 |
| 7 | V940010800001LL | Hexagonal Nut M8 This part replaces A9400108000. |
| 8 | A40530149000 | DRIVE CHAIN - Call your local BRP dealership |
| 9 | A40510145001 | Chain Protect Cover |
| 10 | A960000801212G | HEXAGONAL WASHER FACE BOLT M8X12 - Call your local BRP dealership |
| 11 | A40543145001 | DRIVE CHAIN ADJUSTER - Call your local BRP dealership |
| 12 | A23801175000 | Cam Chain Sprocket |
| 13 | A941011629030 | Plain Washer |
| 14 | A9035016000 | Nylon Nut |
| 16 | A40511175000 | REAR CHAIN COVER - Call your local BRP dealership |
| 17 | A960000601410G | HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership |
