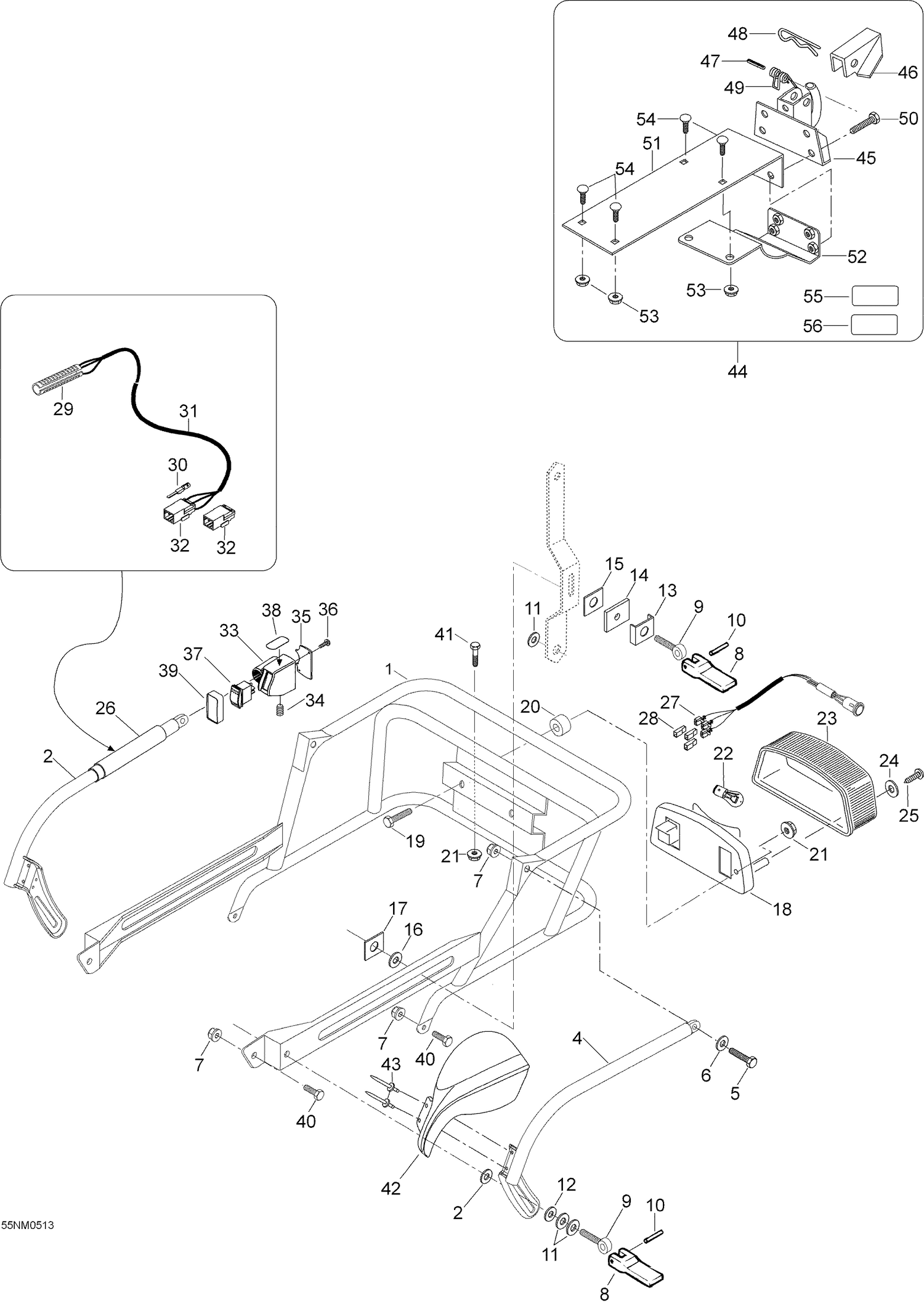

09- Luggage Rack
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5146808 | Rack ass'y |
| 2 | 5342838 | R.H. Arm |
| 3 | 20082 | Washer A10,5 |
| 4 | 5342839 | L.H. Arm |
| 5 | 40006 | Hex. screw M8 x 35 |
| 6 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 8 | 5243419 | Lock lever |
| 9 | 517250100 | EYE BOLT - Call your local BRP dealership |
| 10 | 414821400 | Pin |
| 11 | 20080 | Washer |
| 12 | 20085 | Washer |
| 13 | 517257300 | Guide |
| 14 | 570027400 | Rubber plate |
| 15 | 517251300 | SPACER - Call your local BRP dealership |
| 16 | 414819500 | Sleeve |
| 17 | 5443899 | Thread Plate |
| 18 | 510004061 | LIGHT HOUSING - Call your local BRP dealership |
| 19 | 40065 | Bulb |
| 20 | 549103 | Lens |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 | 520000758 | Bulb This part replaces 410504000. |
| 23 | 414513700 | Lens |
| 24 | 414516400 | Washer - Call your local BRP dealership |
| 25 | 209632540 | Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 26 | 415050300 | Grip |
| 27 | 42178 | Connector |
| 28 | 42179 | Connector housing |
| 29 | 515175573 | Heater This part replaces 515175387. |
| 30 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 31 | 39023 | Plastic Tubing d=6, musta - Call your local BRP dealership |
| 32 | 42271 | Connector housing |
| 33 | 572089200 | Heater Switch Housing |
| 34 | 414440800 | Socket Set Screw M8 X 10 |
| 35 | 572089300 | Plate |
| 36 | 414473200 | Screw |
| 37 | 511000001 | Switch |
| 38 | 418001800 | HEAT GRIP DECAL - Call your local BRP dealership |
| 39 | 511000002 | Protector |
| 40 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 41 | 40030 | Hex. screw M6 x 20 |
| 42 | 572089400 | RH Passengers hand grip shelter |
| 42 | 572089500 | LH Passengers hand grip shelter |
| 43 | 36037 | Rivet |
| 45 | 5344156 | HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 46 | 5440767 | Lock |
| 47 | 41012 | Spring Pin |
| 48 | 41029 | Needle Pin |
| 49 | 545693 | SPRING - Call your local BRP dealership |
| 50 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 51 | 605450084 | Bracket |
| 52 | 605350085 | Bracket |
| 53 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 54 | 40866 | Locking screw M6 x 20 |
| 55 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
